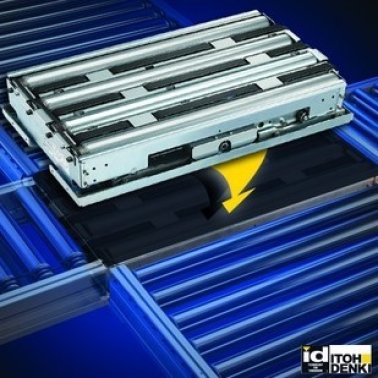

F RAT - Modul transfer 90°
Cod produs: F-RAT-S
Brand:
TORWEGGE GMBH
F-RAT-S - Modul de transfer 90º

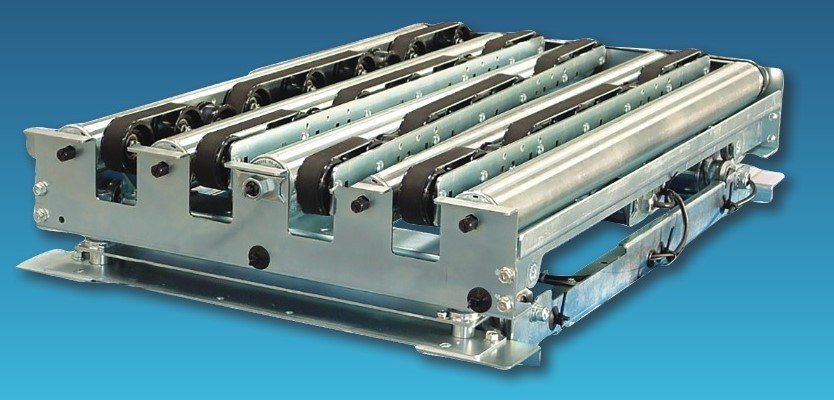

The F-RAT is a 90° multidirectional transfer unit supplied complete in a highly compact cassette module, that can be easily integrated within the conveyor frame. It requires only a 24VDC supply with 100W. It has a transfer capacity of about 2500 packages/hour, when the transfer rate is at 50% and without making a level change of the transported goods.
| ♦ | Operates at speeds up to 295 FPMAbility to move product in 4 different directions |
| ♦ | Operates with safe, low voltage, 24V DC Power |
| ♦ | Transfers product up to 50kg |
| ♦ | No pneumatics needed, MDR controls all lifting |
| ♦ | Run-On-Demand feature increases energy savings over traditional transfers |
| ♦ | Fits into existing MDR conveyor frames |
| ♦ | Quieter than traditional pneumatic transfers |
| ♦ | Height of product never changes thanks to our patented simultaneous lift/lower technology |
| ♦ | Minimum Package Size: 300mm (11.81”) x 300mm (11.81”) |
| ♦ | Minimum Height: 170 mm (6.69”) |
| ♦ | Transfer Capacity: 2500/hr (Based on 13.8” x 15.4”, 66lb package) |

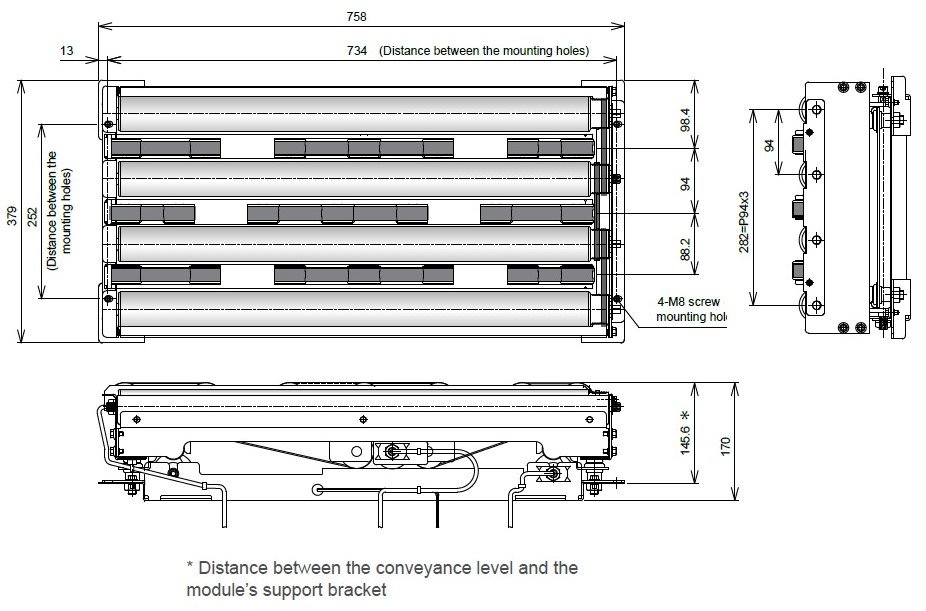

Date si caracteristici tehnice
| ♦ | Roller Diameter: 50.0 mm |
| ♦ | Size BF Width (W) Transfer direction: 15″, 20″, 24″, 28″ |
| ♦ | Length (L) Spine direction: 30″ |
| ♦ | Height: 170mm (6.69″) |
| ♦ | Transfer / Spine Speed: 56, 197, 295 FPM |
| ♦ | Stroke: 10mm (0.39″) |
| ♦ | Power voltage: DC24V |
| ♦ | Ambient temperature: 0 ～ 40℃ (No freezing) |
| ♦ | Humidity: Below 90%RH (No condensation) |
| ♦ | Atmosphere: No corrosive gas |
| ♦ | Vibration: Below 0.5G |
| ♦ | Installation: Indoor |

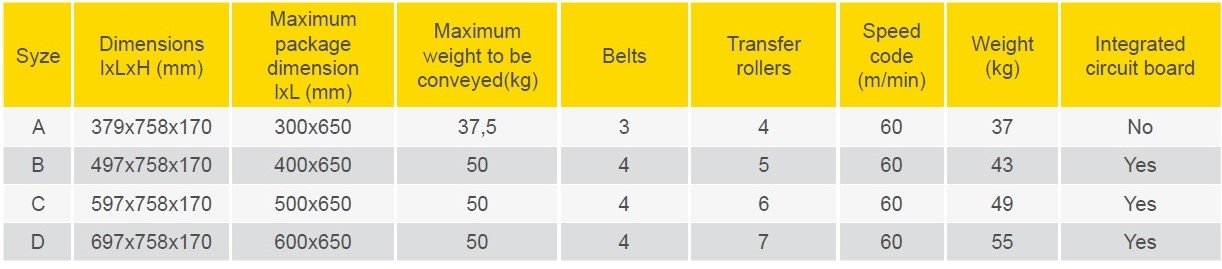

Disponibil in urmatoarele marimi

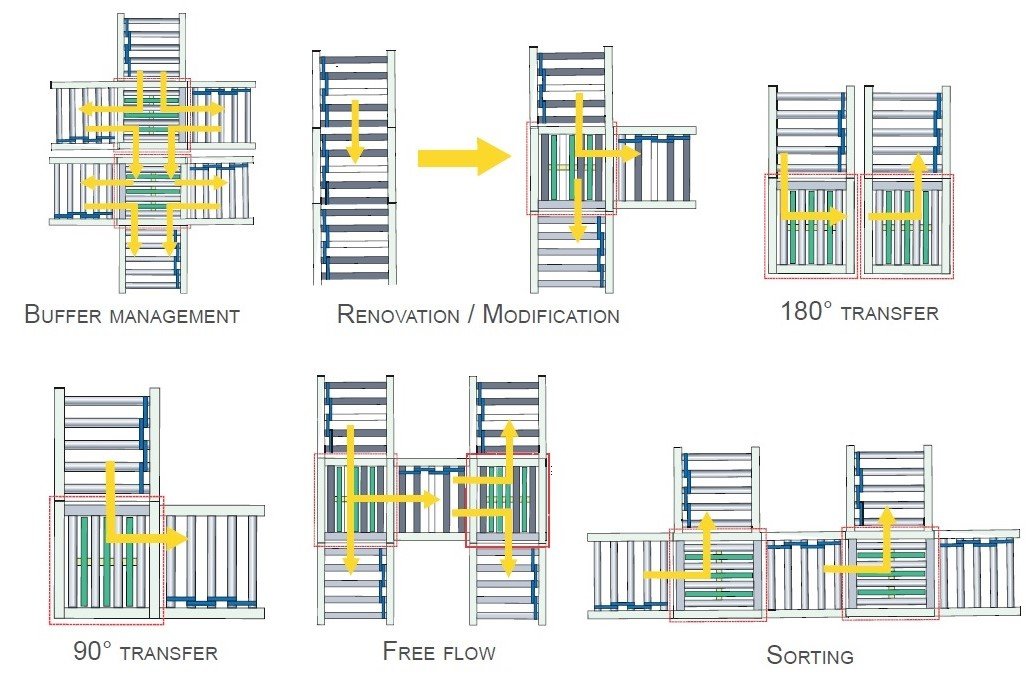

Aplicatii
