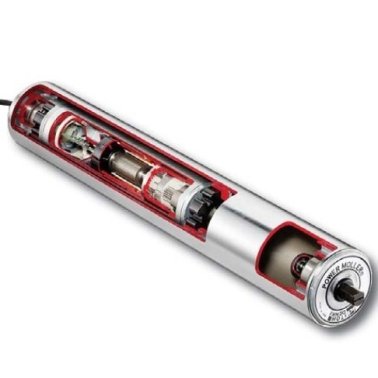

Rola transportoare cu motor PM605XE, Ø 60.5mm, WLL=500kg, controller integrat
Cod produs: PM605XE
Brand:
TORWEGGE GMBH
Rola cu motor PM605XE controller integrat
| Diametru | 60.5 mm |
| Portanta | max. 500 kg |
| Controller | LCX-901 (integrat) |
| Motor | Brushless 24 DC |
| Lungime | Lmax= 1500 mm |

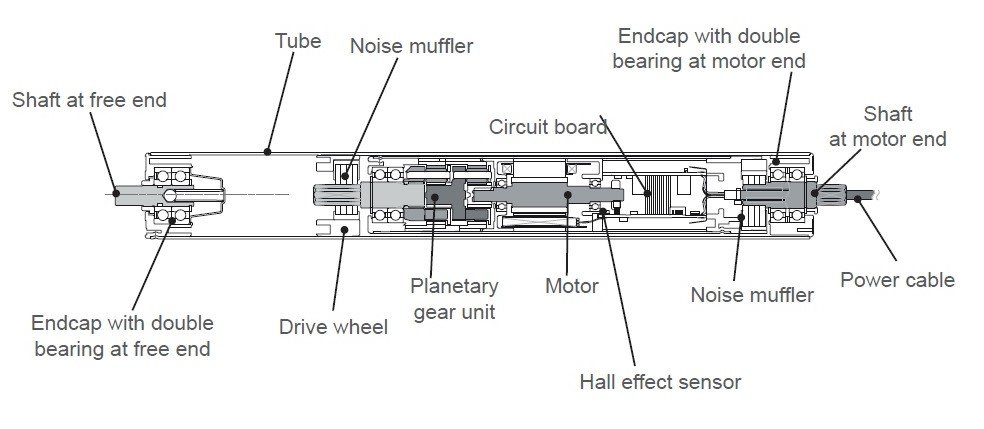

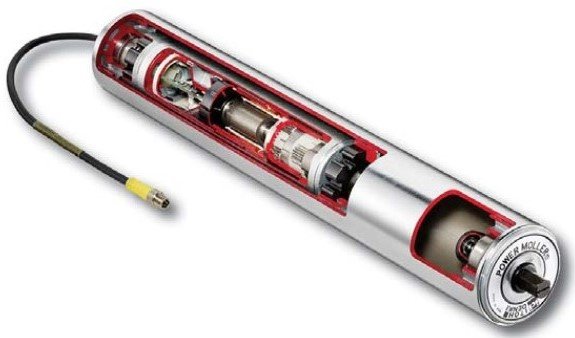

The brushless motorized roller PM605XE has the circuit board and gear-motor integrated within the roller allowing a good tightness, easy wiring with M8-5pins connector and space saving. It can be easily controlled by: PLC, Asi-Bus via Bihl & Wiedemann module, or logic sensors with integrated ZPA from Wenglor, etc. It is designed for conveyor lines of light and medium loads (up to 500Kg max), in order preparation, in distribution, and for assembly lines. The motorized roller PM605XE is the ideal solution to answer to the difficulties coming from the working environment (liquid, dust, …).

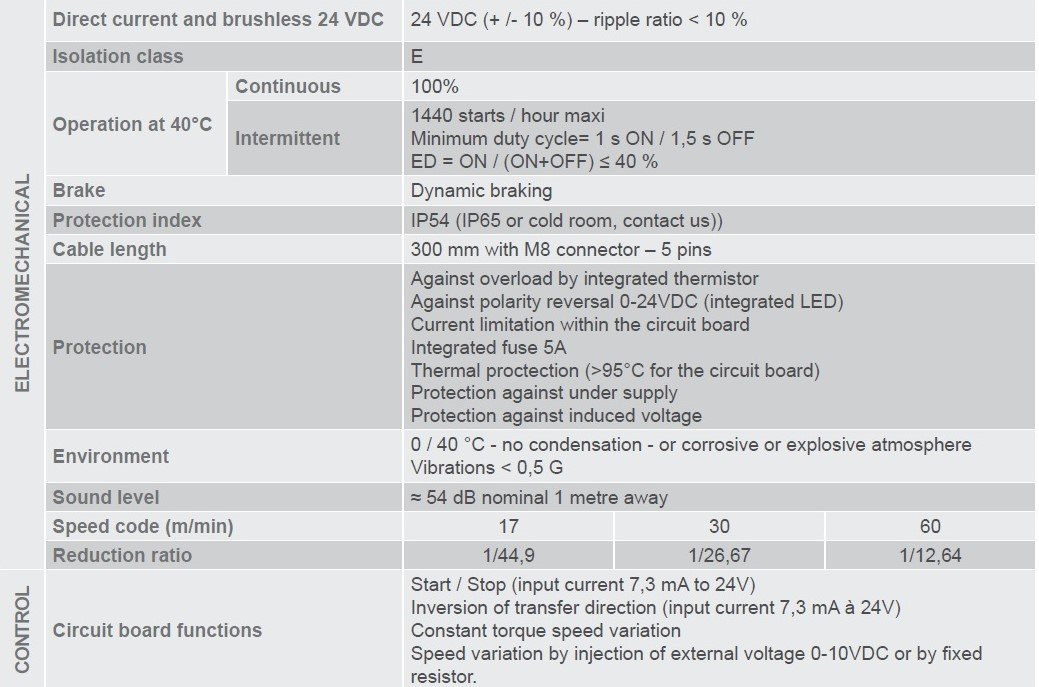

Date si caracteristici generale

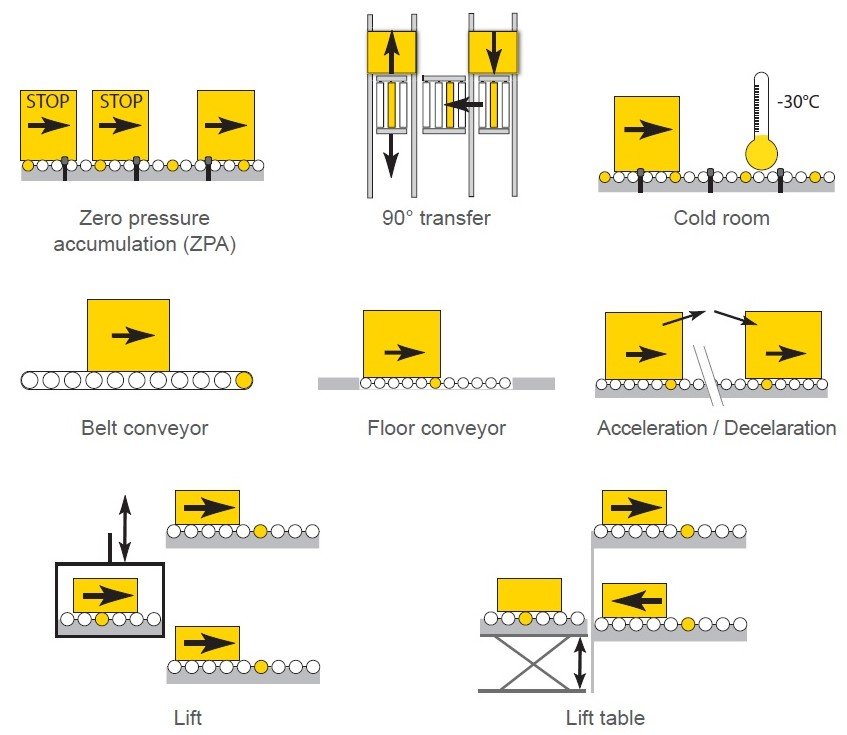

Aplicatii
Date si caracteristici generale
Aplicatii
