Adezivi conducticvi electric placi de baza

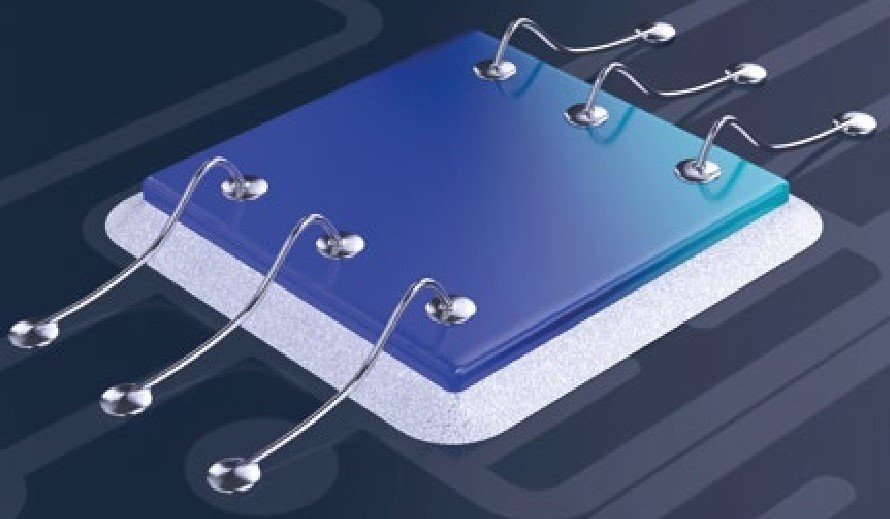

Adezivii conductivi electric sunt soluția perfectă pentru realizarea contactelor electrice pe plăci de circuite
Adezivi conductiviu electric sunt mult mai flexibili decât sârma de lipit și, prin urmare, sunt mai bine capabili să suporte vibrațiile.
Pot fi imprimați prin jet sau plotați permițând producția unor conductori mult mai delicati decât cei obținuți prin lipire
Adezivii conductori sunt lipși de plumb și solvenți
Există două tipuri de adezivi conductori electrici: isotropi și anisotropi.
Adezivii conductori isotropi (ICA) sunt conductori electric în toate direcțiile
Utilizați în aplicații precum contactarea și lipirea componentelor SMD conductoare electric
Adezivii conductori anisotropi (ACA) conduc electricitatea doar într-o singură direcție
Acești adezivi sunt folosiți în multe structuri sensibile de pe plăcile de circuite, precum:
conexiunile LCD sau
contactarea FPC (circuite flexibile imprimate).
Elecolit®, Panacol oferă o gamă largă de adezivi conductori electrici:
adezivi monocomponenti care pot fi aplicați simplu cu dozatoare sau jet, sau prin imprimare pe ecran
adezivi bicomponenti care se întăresc la temperatura camerei și au o durată lungă de păstrare

Pentru a descărca fișele tehnice (TDS), vă rugăm să faceți clic pe numele adezivului

Conductive adhesive	Application	Viscosity [mPas]	Base	Curing*	Properties
Elecolit® 3012	bonding electroconductive parts screen printing	paste-like	rasina epoxidica	thermal	electrically conductive (ICA) thermally conductive suitable for screen printing
Elecolit® 3025	bonding heat-sensitive components OPV photovoltaics	80,000-90,000 Mix, 25,000-35,000 part A, 60,000-70 000, part B, Rheometer, 25 °C, 10s^-	rasina epoxidica bicomponenta	thermal room temperature	electrically conductive (ICA) thermally conductive
Elecolit® 3036	bonding heat-sensitive components, bonding flexible circuits	paste-like	rasina epoxidica bicomponenta	thermal room temperature	electrically conductive (ICA) thermally conductive
Elecolit® 3043	antenna print bonding ceramic fuses	1,500-3,500	rasina epoxidica	thermal	electrically conductive (ICA) thermally conductive
Elecolit® 3063	LCD bonding bonding flexible conductors	12,000-30,000 Rheometer, 25 °C, 10s^-1 150,000-190,000 LVT. 25 °C, Sp.7/5 rpm	acrilat	UV + pressure VIS + pressure	electrically conductive (ACA)
Elecolit® 3064	LCD bonding bonding flexible conductors	150,000-190,000 LVT, 25 °C, Sp. 7/5 rpm 12,000-30,000 Rheometer, 25 °C, 10s^-1)	acrilat	UV + pressure VIS + pressure	electrically conductive (ACA)
Elecolit® 3065	bonding flexible circuits display and touchscreen sealing	25,000-45,000 Rheometer, 25 °C, 10s-1	acrilat	UV + pressure VIS + pressure thermal postcuring	Electrically conductive (ACA) Transparent brownish color High flexibility Very high adhesion to PET, Kapton and Mylar
Elecolit® 323	bonding electronic components	paste-like	rasina epoxidica bicomponenta	thermal	electrically conductive (ICA) thermally conductive ISO 10993-5/-12 certified
Elecolit® 325	bonding heat-sensitive components	paste-like	rasina epoxidica bicomponenta	thermal	electrically conductive (ICA) thermally conductive
Elecolit® 327	bonding electroconductive parts	paste-like	polyimid	thermal	electrically conductive (ICA) thermally conductive high temperature resistant up to 275°C
Elecolit® 336	bonding heat-sensitive components	paste-like	rasina epoxidica bicomponenta	thermal, room temperature	electrically conductive (ICA) thermally conductive
Elecolit® 342	ESD protection	1,000-2,000 Rheometer, 25 °C, 10s-1	acrylate	thermal	electrically conductive (ICA) thermally conductive
Elecolit® 3647-1	Die attach Flexible printed circuits Contacting on Flex PCBs Conductive bonding OPV photovoltaics	n.n.	rasina epoxidica	thermal	Very flexible, solvent-free Electrically conductive Thermally conductive Very high adhesion to glass, various metals and plastics
Elecolit® 3648	Die attach Flexible printed circuits Contacting on Flex PCBs Conductive bonding OPV photovoltaics	10,000 – 15,000 Rheometer 10s^-1)	rasina epoxidica	thermal	Very flexible, solvent-free Electrically conductive Thermally conductive Very high adhesion to glass, various metals and plastics Snap Cure Curing with thermode possible
Elecolit® 3653	bonding electroconductive parts ideal for parts subjected to high vibrations	4,000-8,000	rasina epoxidica	thermal	electrically conductive (ICA) thermally conductive
Elecolit® 3655	LED die attach	5,000-15,000 Rheometer 10s^-1	rasina epoxidica	thermal	electrically conductive (ICA) thermally conductive, thixotropic, silver color, low ion content (Na+, K+, Cl- <10ppm)
Elecolit® 3661	bonding flexible interconnect devices	20,000-40,000	rasina epoxidica	thermal	electrically conductive (ICA) thermally conductive stable flexible
Elecolit® 414	printing circuit paths on flexible substrates	6,000-15,000	poliester	thermal	electrically conductive (ICA) thermally conductive

*UV = 320 - 390 nm VIS = 405 nm
