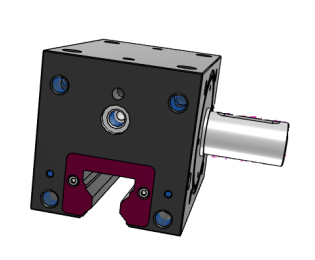

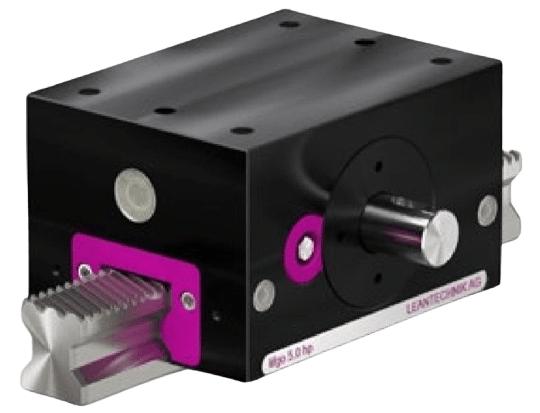

Cremaliera liniara de precizie Seria lifgo hp


Seria lifgo hp			lifgo hp 5.0	lifgo hp 5.1	lifgo hp 5.3	lifgo hp 5.34
Forta de ridicare	Fmax	[N]	1800	3400	14400	22600
Viteza de ridicare	vmax	[m/s]	3.0	3.0	3.0	3.0
Acceleratie	amax	[m/s²]	50.0	50.0	50.0	50.0
Moment torsiune	Mmax	[Nm]	19.8	67.15	428.40	898.35
Diametru	Dia. Ø	mm	22	39.5	59.5	79.5
Lifting gear ratio	Cursa	[mm/360°]	69,1150	124,0929	186,9248	249,7566
Efcienta	w		0.92	0.92	0.92	0.92
Spatele dinților variabil infinit	f	[mm]	0,002	0,002	0,002	0,002
Domeniul de temperatura	t	[°C]	-10 pana +80	-10 pana +80	-10 pana +80	-10 pana +80
Static torque	Mtx stat.	[Nm]	570	760	4400	5500
Dynamic torque	Mtx stat.	[Nm]	280	390	2200	2800
Dynamic torque	Mty stat.	[Nm]	380	650	3300	3300
Dynamic torque	Mty dyn.	[Nm]	180	330	1600	1600
Dynamic torque	Mtz stat.	[Nm]	380	650	3300	3300
Dynamic torque	Mtz dyn.	[Nm]	180	330	1600	1600
Static load rating	Fstat.	[N]	38400	51200	161400	161400
Dynamic load rating	Fdyn.	[N]	19100	25900	79600	79600

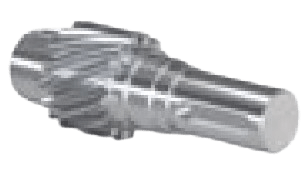

Comanda cu pinion ZA1			lifgo hp 5.0 ZA 1	lifgo hp 5.0 ZA 1	lifgo hp 5.0 ZA 1	lifgo hp 5.0 ZA 1
Numar comanda			501 817	501 819	501 821	501 823

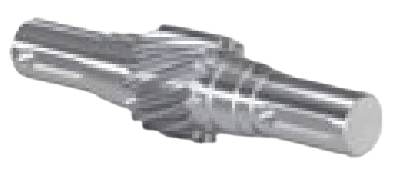

Comanda cu pinion ZA2			lifgo hp 5.0 ZA 2	lifgo hp 5.0 ZA 2	lifgo hp 5.0 ZA 2	lifgo hp 5.0 ZA 1
Numar comanda			501 818	501 820	501 822	501 824
