Dator matrite injectie Standard KSGS/ES Ø3-14mm montare din fata
- Datoare de inalta calitate produs de Marquardt GmbH & Co. KG - Quality Made in Germany!
- Dator complet bucsa si insertie
- Stampila montabila de pe partea matritei
- Setabile si interschimbabile
- Surub filet pentru fixare în forma
- Gravura oglindita, in adancime
- Material: otel calit 1.4034

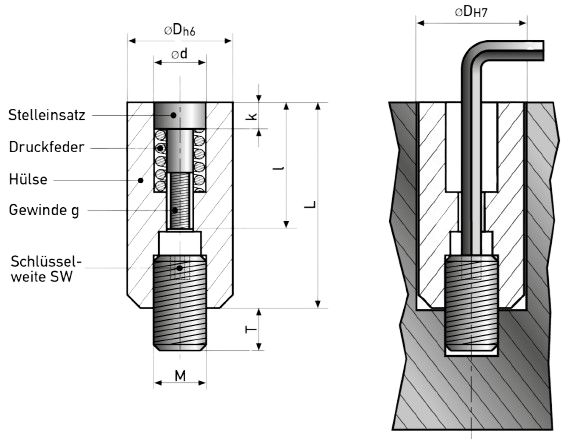

| SETAREA STAMPILEI | SCHIMBAREA STAMPILEI |
 |
 |
|
|
| Diametru busa D |
Lungimea bucsa L |
Filet bucsa M |
Adancimea T |
Marime cheie SW |
Diametru stampila d |
Marimea k |
Lungimea stampila l |
Filet stampila g |

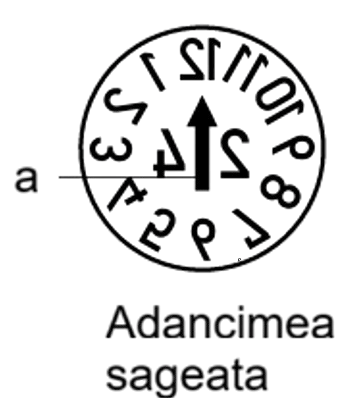

Adancimea sageata a |
| [mm] | [mm] | [metric] | [mm] | [mm] | [mm] | [mm] | [mm] | [metric] | [mm] |
| 4 | 14 | M2 | 3 | 0.7 | 2.5 | 2.3 | 10.5 | M1.4x0.2 | 0.3 |
| 5 | 17 | M3 | 4 | 0.9 | 3.1 | 2.3 | 13.0 | M1.6x0.2 | 0.4 |
| 6 | 17 | M3 | 4 | 0.9 | 3.1 | 2.8 | 13.0 | M1.6x0.2 | 0.4 |
| 8 | 20 | M4 | 5 | 1.5 | 4.6 | 4.0 | 14.0 | M2.5x0.35 | 0.4 |
| 10 | 20 | M5 | 6 | 1.5 | 4.6 | 4.0 | 14.0 | M2.5x0.35 | 0.4 |
| 12 | 25 | M6 | 6 | 2.0 | 6.4 | 4.0 | 17.0 | M3x0.5 | 0.4 |
| 16 | 33 | M8 | 6 | 2.0 | 8.4 | 5.0 | 23.0 | M3x0.6 | 0.4 |
