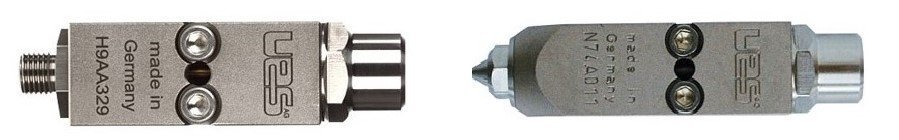

Modul dozare Hot Melt H340 LL
- Developed for air opening/air closing glue application
- High repeat accuracy with very short activation times
- Reduced angelhair formation due to rapid closing
- Also available with needle seat
- Viscosity range max. 20.000 mPa
- Max. performance 4.000 - 5.000 t/min
- Control air pressure 4 - 6 bar
- Glue pressure max. 100 bar
- Operating temperature max. 200 °C
| Denumire produs |
Cod |
Cod referinta Robatech® |
Deschidere |
Inchidere |
Reglare fina hot melt |
Limitare cursa |
Needle seat Ø [mm] |
Cod comanda |
| H340 LL Standard | 328664 1053894 |
aer | aer | nu | nu | -- | 101007 | |
| H340 LL NA 0.25 | -- | -- | aer | aer | nu | nu | 0.25 mm | 109352 |
| H340 LL NA 0.30 | -- | -- | aer | aer | DA | nu | 0.30 mm | 109339 |
| H340 LL NA 0.30 | -- | -- | aer | aer | nu | nu | 0.30 mm | 109354 |
| H340 LL NA 0.50 | -- | -- | aer | aer | nu | nu | 0.50 mm | 109326 |
| H340 LL NA 0.60 | -- | -- | aer | aer | nu | nu | 0.60 mm | 109355 |
| H340 LL NA 1.00 | - | -- | aer | aer | nu | nu | 1.00 mm | 101091 |
| H340 LL NA 1.50 | -- | -- | aer | aer | nu | nu | 1.50 mm | 109327 |
Nordson®, ProBlue®, Vista® und Serie3000® are trademarks of Nordson Corp., USA.
Robatech® is a trademark of Robatech AG, Muri, Switzerland.
ITW Dynatec® is a trademark of llinois Tool Works Inc., USA
