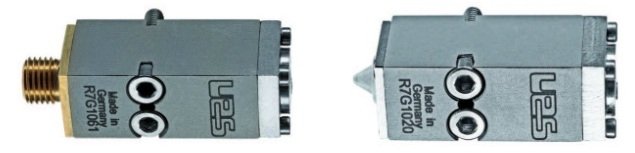

Modul dozare Hot Melt Mini

  • The smallest dimensions for work in the smallest space
  • For fastest applications with smallest dimensions, smallest dimensions, only 16 x 17 x 54 mm
  • Special seals and packings for the highest durability with maximum sealing effect
  • High-tech materials with the highest surface quality for even higher durability
  • Excellent glue hairline tear-off by means of direct closure at the nozzle outlet
  • For fast intermittent application with small glue flow rates
  • Developed for air opening/air closing glue application
  • Fitted with a nozzle seat for screw-on nozzles
  • Viscosity range max. 20.000 mPa·s
  • Max. performance 4.000 - 5.000 time/min
  • Control air pressure 4 - 6 bar
  • Glue pressure max. 100 bar
  • Operating temperature max. 200 °C
