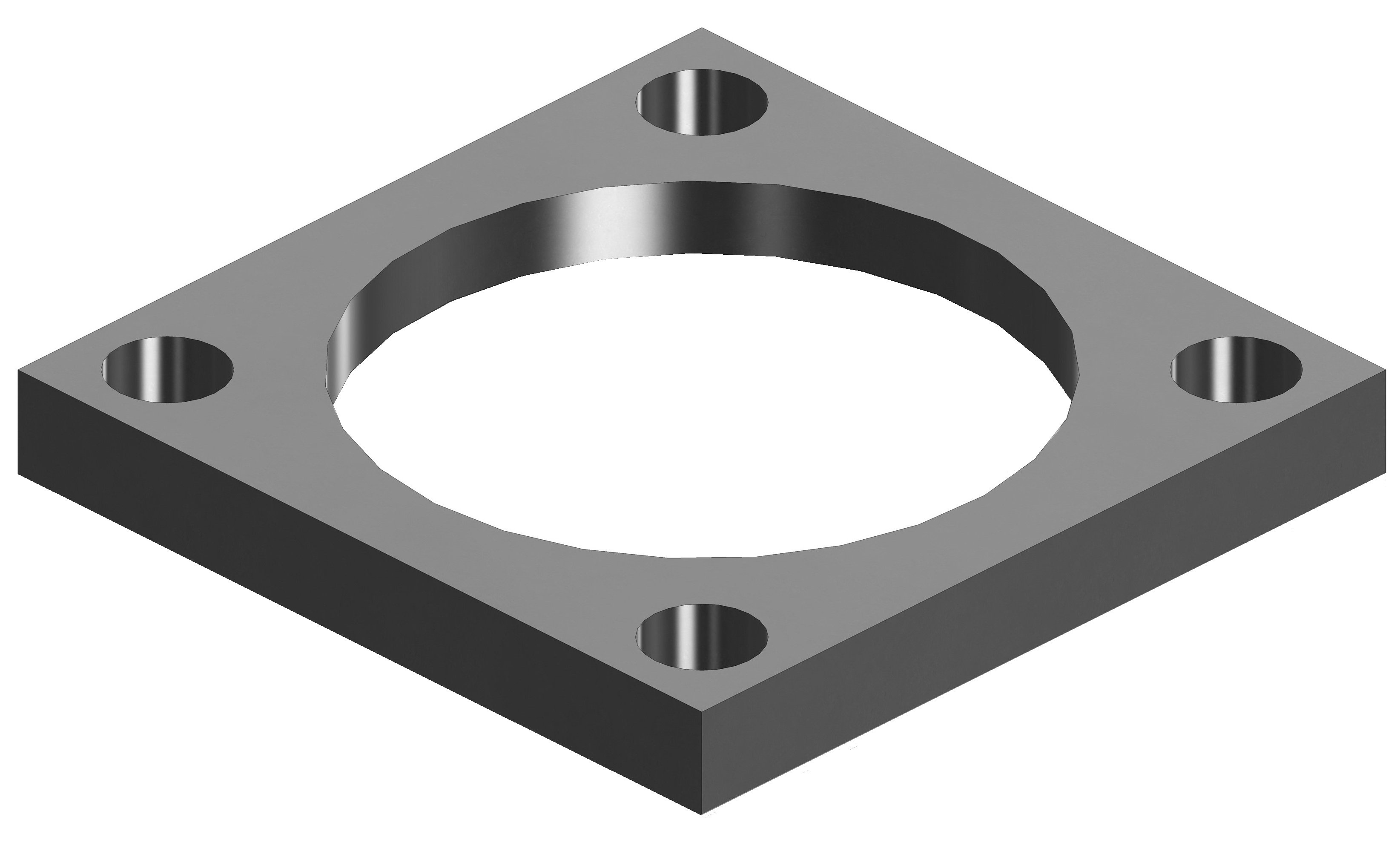

Piesa fixare coloana ghidare norma AFNOR serie E47.13.

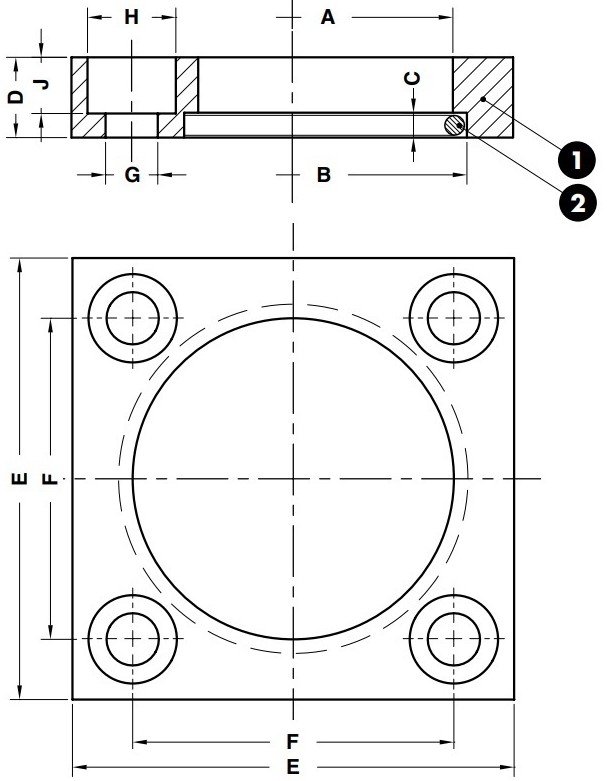

| Diametru A |
Diametru B |
Dimensiunea C |
Dimensiunea D |
Dimensiunea E |
Dimensiunea F |
Diametru G |
Diametru H |
Dimensiunea J |
Cod comanda |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | ||
| 25 | 28 | 2.7 | 10 | 45 | 31 | 6.6 | 11 | 7 | E47.13.025 |
| 32 | 37 | 4.2 | 10 | 56 | 36 | 6.6 | 11 | 7 | E47.13.032 |
| 40 | 45 | 4.2 | 12 | 70 | 50 | 6.6 | 11 | 7 | E47.13.040 |
| 50 | 55 | 4.2 | 14 | 80 | 55 | 9 | 15 | 9 | E47.13.050 |
| 63 | 70 | 6.2 | 18 | 100 | 70 | 11 | 18 | 11 | E47.13.063 |
| 80 | 87 | 6.2 | 20 | 110 | 80 | 13.5 | 20 | 13 | E47.13.080 |
| 100 | 107 | 6.2 | 20 | 140 | 100 | 13.5 | 20 | 13 | E47.13.100 |
