Coloana de ghidare DIN 9833 seria E45.10.W

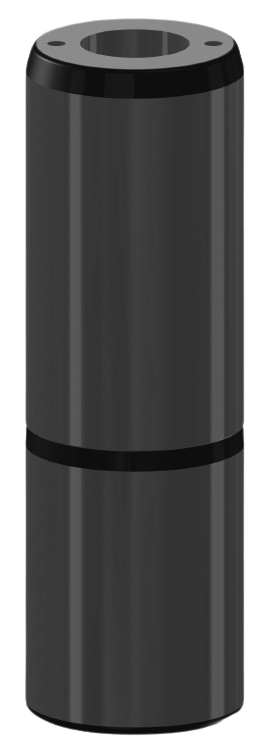

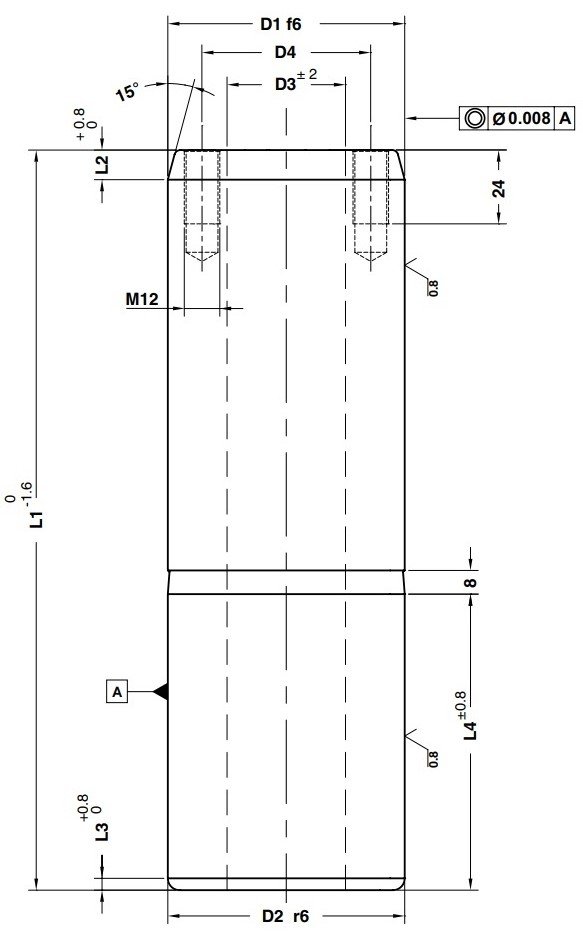

E45.10.080250W-removebg-preview.png E45.10W DT.jpg

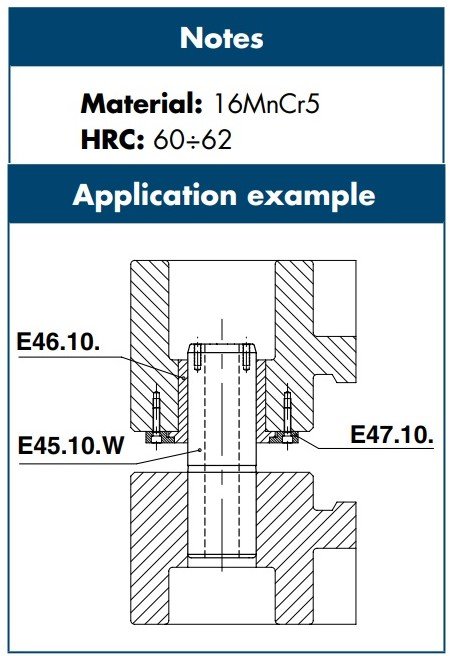

E45.10W AP.jpg

Diametru D1	Lungimea L1	Diametru D2	Diametru D3	Diametru D4	Lungimea L2	Lungimea L3	Lungimea L4	Typ	Cod comanda
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
80	224	80	40	58	10	4	100	W	E45.10.080224W
80	250	80	40	58	10	4	100	W	E45.10.080250W
80	280	80	40	58	10	4	100	W	E45.10.080280W
80	315	80	40	58	10	4	100	W	E45.10.080315W
80	355	80	40	58	10	4	100	W	E45.10.080355W
80	400	80	40	58	10	4	100	W	E45.10.080400W
100	280	100	50	72	10	4	125	W	E45.10.100280
100	315	100	50	72	10	4	125	W	E45.10.100315W
100	355	100	50	72	10	4	125	W	E45.10.100355W
100	400	100	50	72	10	4	125	W	E45.10.100400W
125	315	125	65	90	12	4	140	W	E45.10.125315W
125	355	125	65	90	12	4	140	W	E45.10.125355W
125	400	125	65	90	12	4	140	W	E45.10.125400W
125	450	125	65	90	12	4	140	W	E45.10.125450W
125	500	125	65	90	12	4	140	W	E45.10.125500W
160	400	160	95	132	12	5	180	W	E45.10.160400W
160	450	160	95	132	12	5	180	W	E45.10.160450W
160	500	160	95	132	12	5	180	W	E45.10.160500W
160	560	160	95	132	12	5	180	W	E45.10.160560W
