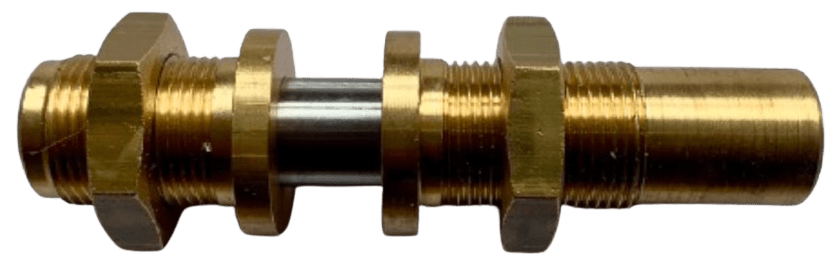

Bolt centrare EPS si EPP

• Produse originale ParticleFoamServive - Quality Made in Germany!

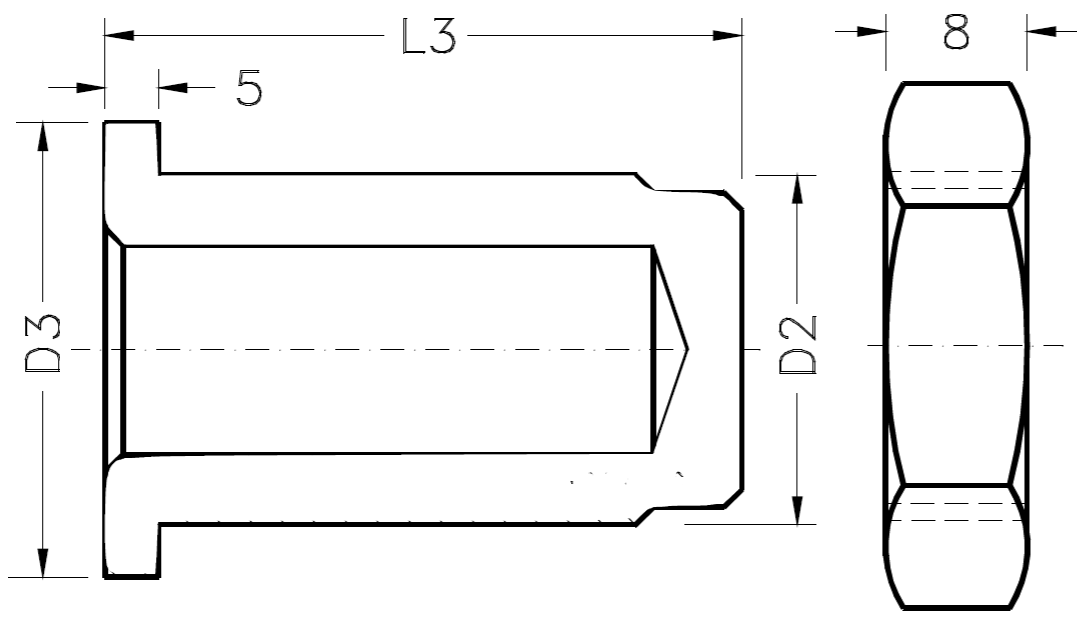

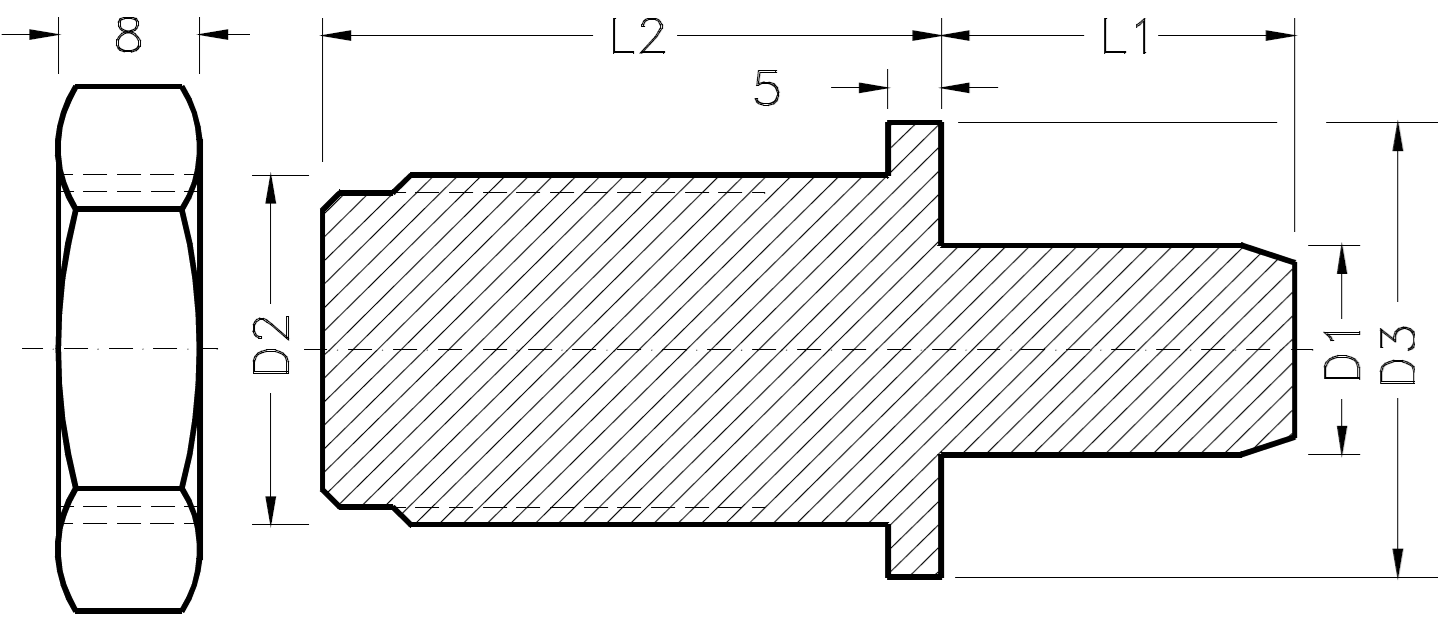

	Diametru D1	Lungimea L1	Diametru D2	Lungimea L2	Diametru  D3	Lungimea L3	Cod comanda
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
Pin centrare 12-20-G1/"	12	20	G 1/2"	30	25	30	PIN-3101
Pin centrare 16-30-M22x1.5	16	30	M22x1.5	35	30	40	PIN-3102
Pin centrare 16-50-M22x1.5	16	50	M22x1.5	35	30	60	PIN-3103
Pin centrare 16-70-M22x1.5	16	70	M22x1.5	35	30	80	PIN-3104
Pin centrare 20-30-M30x1.5	20	30	M30X1.5	35	40	40	PIN-3111
Pin centrare 20-50-M30x1.5	20	50	M30X1.5	35	40	60	PIN-3113
Pin centrare 20-70-M30x1.5	20	70	M30X1.5	35	40	80	PIN-3112
Pin centrare 22-100-M30x1.5	22	100	M30X1.5	35	40	110	PIN-3107
Pin centrare 22-125-M30x1.5	22	125	M30X1.5	35	40	135	PIN-3108
Pin centrare 22-150-M30x1.5	22	150	M30X1.5	35	40	160	PIN-3109
