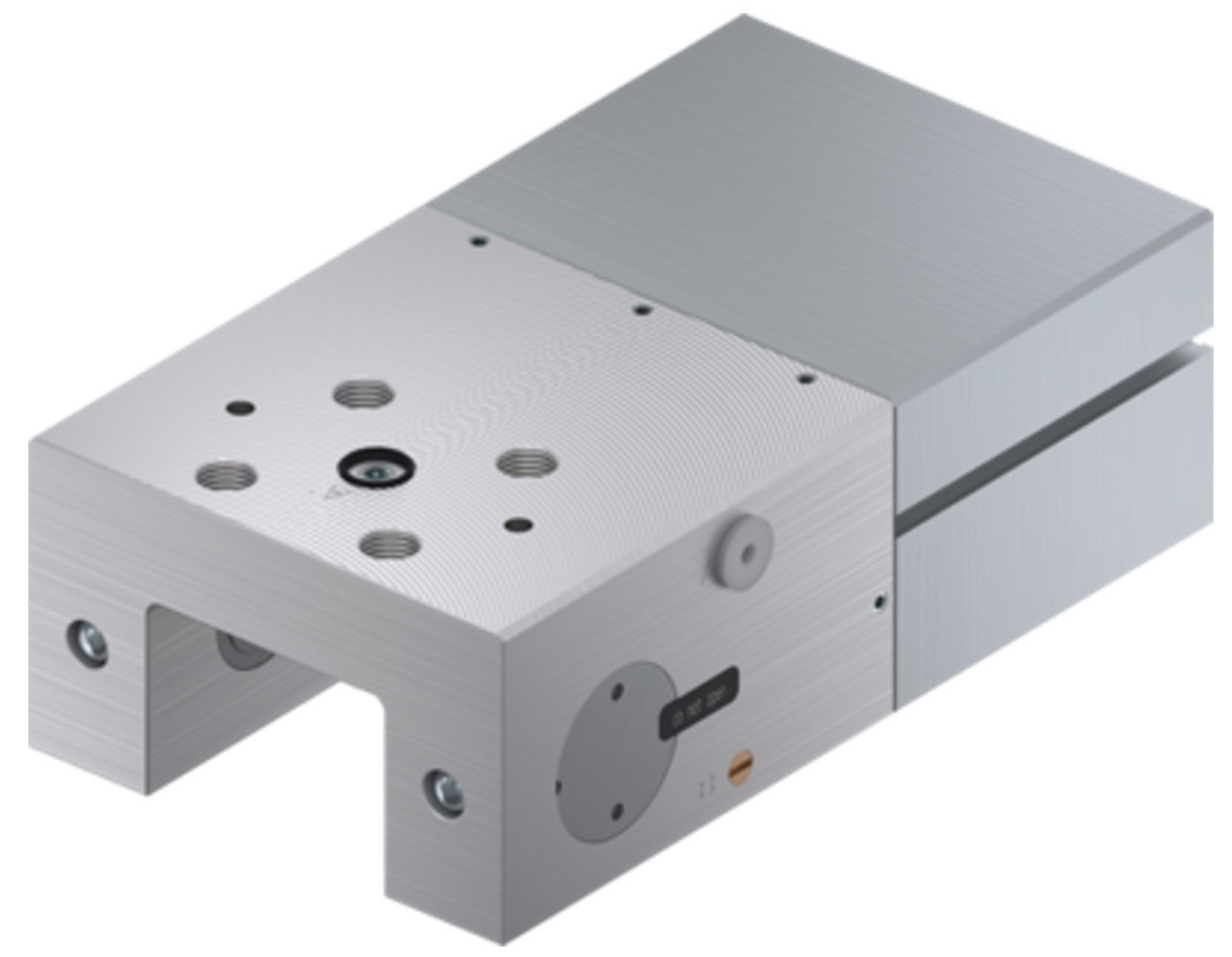

Frana pneumatica ghidaj liniar Seria LKPS
- Produse originale Zimmer Group GmbH - Quality Made in Germany!
- Independent de fabricantul de bare de ghidaj liniar
- Energizare pentru închidere (NC)
- Deschidere prin presiunea aer comprimat
- Formă de construcțiva compacta - ingustă și joasă prin utilizarea pistonului în formă de U
- Fexibilitate maxim prin conexiune suplimentară superioara pentru aer comprimat
- Verificare simplă a stării - poziției pistonului cu senzor de câmp magnetic
- Fezabilitate mare - până la 5 milioane de cicluri de prindere statică
| Order-No. | Holding force |
Operating pressure min. |
Installation direction |
|---|---|---|---|
| [N] | [bar] | ||
| LKPS1501AS2-A | 400 [N] | 5.5 [bar] | from above |
| LKPS1501AS2-LP-A | 300 [N] | 4.0 [bar] | from above |
| LKPS1501SS2-A | 400 [N] | 5.5 [bar] | from the front |
| LKPS1501SS2-LP-A | 300 [N] | 4.0 [bar] | from the front |
| LKPS1502BS2-A | 400 [N] | 5.5 [bar] | from above |
| LKPS1502BS2-LP-A | 300 [N] | 4.0 [bar] | from above |
| LKPS1505AS2-A | 400 [N] | 5.5 [bar] | from the front |
| LKPS1505AS2-LP-A | 300 [N] | 4.0 [bar] | from the front |
| LKPS1505GS2-A | 400 [N] | 5.5 [bar] | from the front |
| LKPS1505GS2-LP-A | 300 [N] | 4.0 [bar] | from the front |
| LKPS2001AS2-A | 650 [N] | 5.5 [bar] | from above |
| LKPS2001AS2-LP-A | 450 [N] | 4.0 [bar] | from above |
| LKPS2001SS2-A | 650 [N] | 5.5 [bar] | from the front |
| LKPS2001SS2-LP-A | 450 [N] | 4.0 [bar] | from the front |
| LKPS2501AS2-A | 750 [N] | 5.5 [bar] | from above |
| LKPS2501AS2-LP-A | 550 [N] | 4.0 [bar] | from above |
| LKPS2501SS2-A | 750 [N] | 5.5 [bar] | from the front |
| LKPS2501SS2-LP-A | 550 [N] | 4.0 [bar] | from the front |
| LKPS2502BS2-A | 750 [N] | 5.5 [bar] | from above |
| LKPS2002BS2-A | 650 [N] | 5.5 [bar] | from above |
| LKPS2002BS2-LP-A | 450 [N] | 4.0 [bar] | from above |
| LKPS2005AS2-A | 650 [N] | 5.5 [bar] | from the front |
| LKPS2005AS2-LP-A | 450 [N] | 4.0 [bar] | from the front |
| LKPS2012IS2-A | 650 [N] | 5.5 [bar] | from the front |
| LKPS2012IS2-LP-A | 450 [N] | 4.0 [bar] | from the front |
| LKPS2014DS2-A | 650 [N] | 5.5 [bar] | from the front |
| LKPS2014DS2-LP-A | 450 [N] | 4.0 [bar] | from the front |
| LKPS2502BS2-LP-A | 550 [N] | 4.0 [bar] | from above |
| LKPS2502DS2-A | 750 [N] | 5.5 [bar] | from the front |
| LKPS2504FS2-A | 750 [N] | 5.5 [bar] | from the front |
| LKPS2502DS2-LP-A | 550 [N] | 4.0 [bar] | from the front |
| .0LKPS2504FS2-LP-A | 550 [N] | 4.0 [bar] | from the front |
| LKPS2505AS2-A | 750 [N] | 5.5 [bar] | from the front |
| LKPS2505AS2-LP-A | 550 [N] | 4.0 [bar] | from the front |
| LKPS2505BS2-A | 750 [N] | 5.5 [bar] | from the front |
| LKPS2505BS2-LP-A | 550 [N] | 4.0 [bar] | from the front |
| LKPS2512IS2-A | 750 [N] | 5.5 [bar] | from the front |
| LKPS2512IS2-LP-A | 550 [N] | 4.0 [bar] | from the front |
| LKPS2514DS2-A | 750 [N] | 5.5 [bar] | from the front |
| LKPS2514DS2-LP-A | 550 [N] | 4.0 [bar] | from the front |
