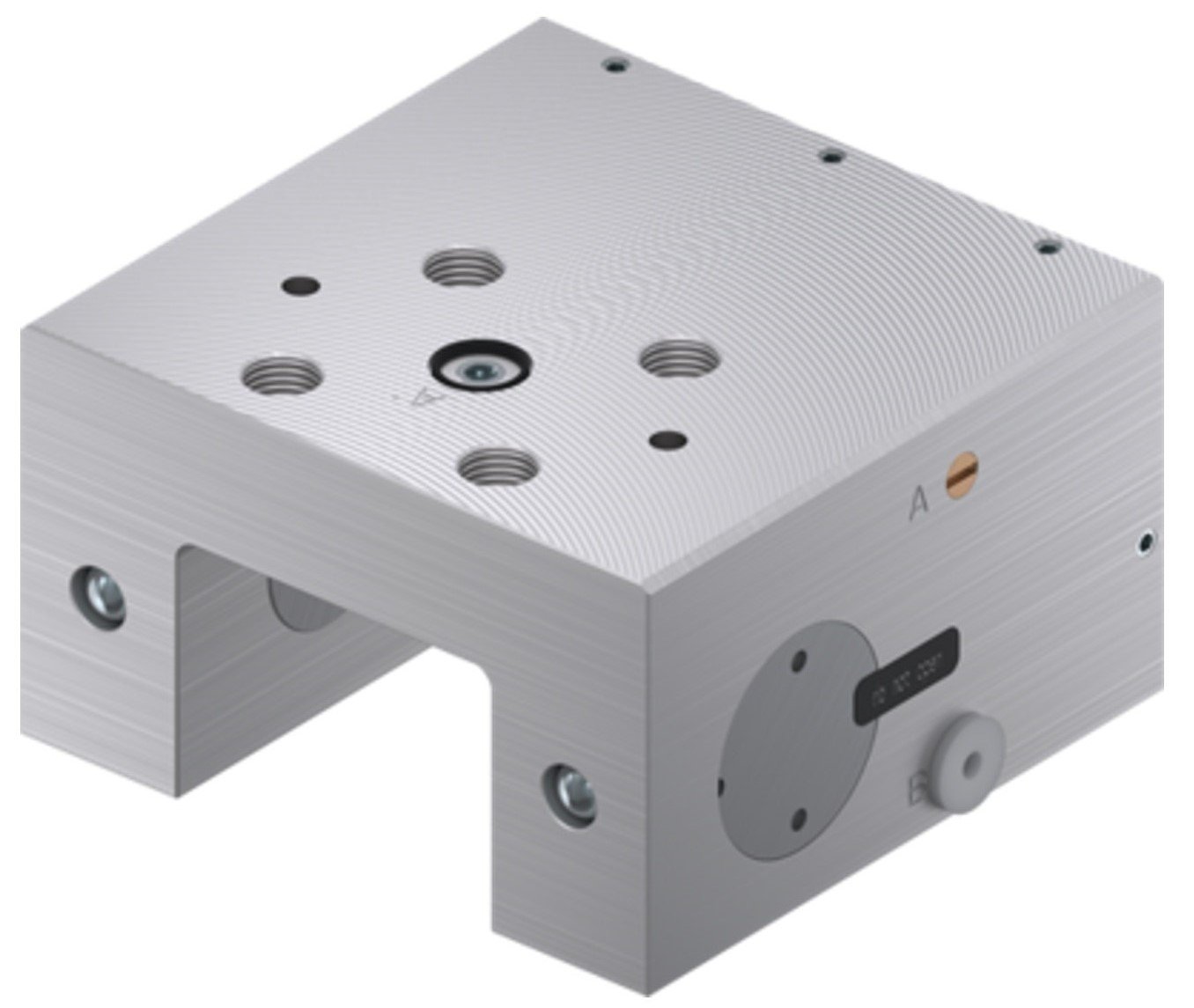

Frana pneumatica ghidaj liniar Seria LPK
- Produse originale Zimmer Group GmbH - Quality Made in Germany!
- Independent de fabricantul de bare de ghidaj liniar
- Energizare pentru închidere (NC)
- Deschidere prin presiunea aer comprimat
- Formă de construcțiva compacta - ingustă și joasă prin utilizarea pistonului în formă de U
- Fexibilitate maxim prin conexiune suplimentară frontala pentru aer comprimat
- Fezabilitate mare - până la 5 milioane de cicluri de prindere statică
| Order-No. | Holding force |
Nominal operating pressure |
Installation direction |
|---|---|---|---|
| [N] | [bar] | ||
| LKP1501AS2-A | 550 [N] | 6 [bar] | from above |
| LKP1501SS2-A | 550 [N] | 6 [bar] | from the front |
| LKP1502BS2-A | 550 [N] | 6 [bar] | from above |
| LKP1505AS2-A | 550 [N] | 6 [bar] | from the front |
| LKP1505GS2-A | 550 [N] | 6 [bar] | from the front |
| LKP2001AS2-A | 850 [N] | 6 [bar] | from above |
| LKP2001SS2-A | 850 [N] | 6 [bar] | from the front |
| LKP2501AS2-A | 1100 [N] | 6 [bar] | from above |
| LKP2501SS2-A | 1100 [N] | 6 [bar] | from the front |
| LKP2502BS2-A | 1100 [N] | 6 [bar] | from above |
| LKP2502DS2-A | 1100 [N] | 6 [bar] | from the front |
| LKP3001AS2-A | 1800 [N] | 6 [bar] | from above |
| LKP3001ES2-A | 1800 [N] | 6 [bar] | from above |
| LKP3001SS2-A | 1800 [N] | 6 [bar] | from the front |
| LKP3002BS2-A | 1800 [N] | 6 [bar] | from above |
| LKP3501AS2-A | 2500 [N] | 6 [bar] | from above |
| LKP3501ES2-A | 2500 [N] | 6 [bar] | from the front |
| LKP3502AS2-A | 2500 [N] | 6 [bar] | from the front |
| LKP3502BS2-A | 2500 [N] | 6 [bar] | from the front |
| LKP3502DS2-A | 2000 [N] | 6 [bar] | from the front |
| LKP3503AS2-A | 2500 [N] | 6 [bar] | from the front |
| LKP3504FS2-A | 2500 [N] | 6 [bar] | from the front |
| LKP4501AS2-A | 3500 [N] | 6 [bar] | from above |
| LKP4501ES2-A | 3500 [N] | 6 [bar] | from the front |
| LKP4502AS2-A | 3500 [N] | 6 [bar] | from the front |
| LKP4502BS2-A | 3500 [N] | 6 [bar] | from the front |
| LKP4502DS2-A | 3500 [N] | 6 [bar] | from the front |
| LKP2002BS2-A | 850 [N] | 6 [bar] | from above |
| LKP2005AS2-A | 850 [N] | 6 [bar] | from the front |
| LKP2012FS2-A | 850 [N] | 6 [bar] | from the front |
| LKP2014DS2-A | 850 [N] | 6 [bar] | from the front |
| LKP5501AS2-A | 4500 [N] | 6 [bar] | from above |
| LKP5501ES2-A | 4500 [N] | 6 [bar] | from the front |
| LKP5502AS2-A | 4500 [N] | 6 [bar] | from the front |
| LKP5502BS2-A | 4500 [N] | 6 [bar] | from the front |
| LKP5503AS2-A | 4500 [N] | 6 [bar] | from the front |
| LKP2505BS2-A | 1100 [N] | 6 [bar] | from the front |
| LKP2504FS2-A | 1100 [N] | 6 [bar] | from the front |
| LKP2505AS2-A | 1100 [N] | 6 [bar] | from the front |
| LKP2512IS2-A | 1100 [N] | 6 [bar] | from the front |
| LKP2514DS2-A | 1100 [N] | 6 [bar] | from the front |
| LKP3003AS2-A | 1800 [N] | 6 [bar] | from the front |
| LKP3004FS2-A | 1800 [N] | 6 [bar] | from above |
| LKP3005AS2-A | 1800 [N] | 6 [bar] | from the front |
| LKP3012FS2-A | 1800 [N] | 6 [bar] | from above |
| LKP3014DS2-A | 1800 [N] | 6 [bar] | from above |
| LKP3014ES2-A | 1800 [N] | 6 [bar] | from above |
| LKP3505AS2-A | 2500 [N] | 6 [bar] | from the front |
| LKP3512FS2-A | 2500 [N] | 6 [bar] | from the front |
| LKP3505BS2-A | 2500 [N] | 6 [bar] | from the front |
| LKP3510BS2-A | 2500 [N] | 6 [bar] | from the front |
| LKP3514ES2-A | 2500 [N] | 6 [bar] | from the front |
| LKP4504FS2-A | 3500 [N] | 6 [bar] | from the front |
| LKP4503AS2-A | 3500 [N] | 6 [bar] | from the front |
| LKP4505AS2-A | 3500 [N] | 6 [bar] | from the front |
| LKP4505BS2-A | 3500 [N] | 6 [bar] | from the front |
| LKP4514ES2-A | 3500 [N] | 6 [bar] | from the front |
| LKP5505AS2-A | 4500 [N] | 6 [bar] | from the front |
| LKP5505BS2-A | 4500 [N] | 6 [bar] | from the front |
| LKP5512FS2-A | 4500 [N] | 6 [bar] | from the front |
| LKP5514ES2-A | 4500 [N] | 6 [bar] | from the front |
