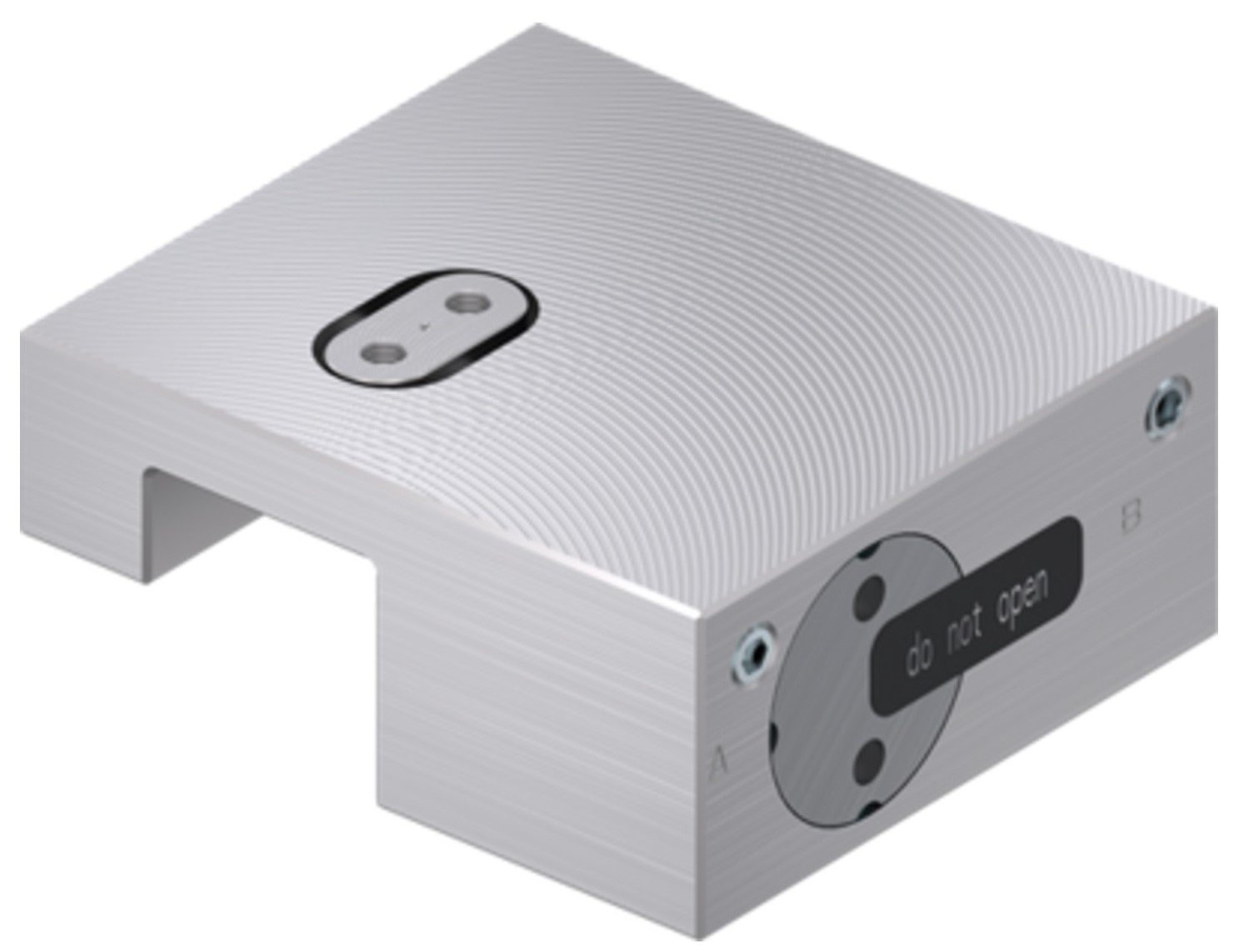

Frana pneumatica ghidaj liniar Seria MCP
- Produse originale Zimmer Group GmbH - Quality Made in Germany!
- Energizare pentru închidere (NO)
- Inchidere prin presiunea aer comprimat
- Formă de construcțiva compacta
- Fezabilitate mare - până la 5 milioane de cicluri de prindere statică
| Order-No. | Holding force |
Nominal operating pressure |
Installation direction |
|---|---|---|---|
| [N] | [bar] | ||
| MCP0901A | 130 [N] | 6 [bar] | from above |
| MCP0901H | 130 [N] | 6 [bar] | from above |
| MCP0912D | 130 [N] | 6 [bar] | from above |
| MCP0914L | 130 [N] | 6 [bar] | from above |
| MCP1201A | 280 [N] | 6 [bar] | from above |
| MCP1201M | 280 [N] | 6 [bar] | from above |
| MCP1202F | 280 [N] | 6 [bar] | f+rom the front |
| MCP1205A | 280 [N] | 6 [bar] | from above |
| MCP1214L | 280 [N] | 6 [bar] | from above |
| MCP1217C | 280 [N] | 6 [bar] | from above |
| MCP0900MW | 130 [N] | 6 [bar] | from above |
| MCP1200MW | 280 [N] | 6 [bar] | from above |
| MCP1501H | 320 [N] | 6 [bar] | from above |
| MCP1501HW | 280 [N] | 6 [bar] | from above |
| MCP1501M | 320 [N] | 6 [bar] | from above |
| MCP1502F | 320 [N] | 6 [bar] | from above |
| MCP1504A | 320 [N] | 6 [bar] | from above |
| MCP1505A | 320 [N] | 6 [bar] | from the front |
| MCP1505E | 280 [N] | 6 [bar] | from the front |
| MCP1514L | 320 [N] | 6 [bar] | from above |
| MCP2001A | 550 [N] | 6 [bar] | from above |
| MCP2005A | 550 [N] | 6 [bar] | from above |
| MCP2501H | 550 [N] | 6 [bar] | from above |
| MCP1701B | 280 [N] | 6 [bar] | from above |
| MCP1503MW | 280 [N] | 6 [bar] | from above |
| MCP1500MW | 280 [N] | 6 [bar] | from above |
