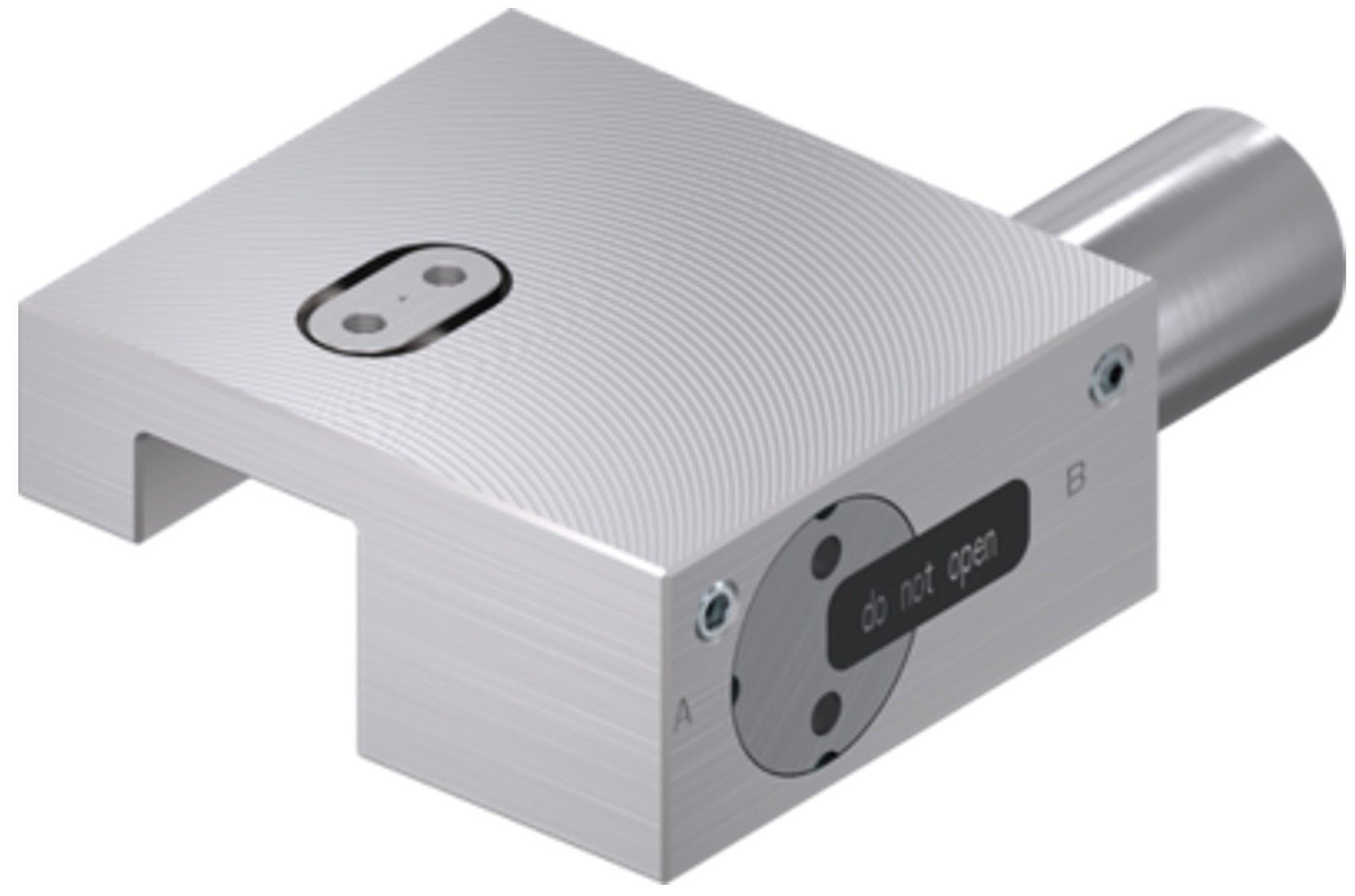

Frana pneumatica ghidaj liniar Seria MCPS
- Produse originale Zimmer Group GmbH - Quality Made in Germany!
- Pentru o gama larga de sisteme de ghidaj liniar - Independent de fabricantul sinei de ghidare liniara
- Energizare pentru deschidere (NC)
- Deschidere prin aer comprimat
- Forța de strangere mai mare mai mare prin activare PLUS air
- Element de siguranță - strangere sigură în caz de pana de curent
- Fezabilitate mare - până la 5 milioane de cicluri de prindere static
| Order-No. | Holding force |
Operating pressure min. |
Installation direction |
|---|---|---|---|
| [N] | [bar] | ||
| MCPS0901A | 80 [N] | 5.5 [bar] | from above |
| MCPS0901A-LP | 80 [N] | 4.0 [bar] | from above |
| MCPS0901H | 80 [N] | 5.5 [bar] | from above |
| MCPS0901H-LP | 80 [N] | 4.0 [bar] | from above |
| MCPS0912D | 80 [N] | 5.5 [bar] | from above |
| MCPS0912D-LP | 80 [N] | 4.0 [bar] | from above |
| MCPS0914L | 80 [N] | 5.5 [bar] | from above |
| MCPS0914L-LP | 80 [N] | 4.0 [bar] | from above |
| MCPS1201A | 250 [N] | 5.5 [bar] | from above |
| MCPS1201A-LP | 145 [N] | 4.0 [bar] | from above |
| MCPS1201M | 250 [N] | 5.5 [bar] | from above |
| MCPS1201M-LP | 145 [N] | 4.0 [bar] | from above |
| MCPS1202F | 250 [N] | 5.5 [bar] | from the front |
| MCPS1202F-LP | 145 [N] | 4.0 [bar] | from the front |
| MCPS1205A | 250 [N] | 5.5 [bar] | from above |
| MCPS1205A-LP | 145 [N] | 4.0 [bar] | from above |
| MCPS1214L | 240 [N] | 5.5 [bar] | from above |
| MCPS1214L-LP | 145 [N] | 4.0 [bar] | from above |
| MCPS1217C | 250 [N] | 5.5 [bar] | from above |
| MCPS1217C-LP | 145 [N] | 4.0 [bar] | from above |
| MCPS0900MW | 80 [N] | 5.5 [bar] | from above |
| MCPS0900MW-LP | 80 [N] | 4.0 [bar] | from above |
| MCPS1200MW | 250 [N] | 5.5 [bar] | from above |
| MCPS1200MW-LP | 145 [N] | 4.0 [bar] | from above |
| MCPS1501H | 280 [N] | 5.5 [bar] | from above |
| MCPS1501H-LP | 145 [N] | 4.0 [bar] | from above |
| MCPS1501HW | 240 [N] | 5.5 [bar] | from the front |
| MCPS1501HW-LP | 145 [N] | 4.0 [bar] | from the front |
| MCPS1501M | 280 [N] | 5.5 [bar] | from above |
| MCPS1501M-LP | 145 [N] | 4.0 [bar] | from above |
| MCPS1502F | 280 [N] | 5.5 [bar] | from above |
| MCPS1502F-LP | 145 [N] | 4.0 [bar] | from above |
| MCPS1504A | 280 [N] | 5.5 [bar] | from above |
| MCPS1504A-LP | 145 [N] | 4.0 [bar] | from above |
| MCPS1505A | 280 [N] | 5.5 [bar] | from the front |
| MCPS1505A-LP | 145 [N] | 4.0 [bar] | from the front |
| MCPS1505E | 240 [N] | 5.5 [bar] | from the front |
| MCPS1505E-LP | 145 [N] | 4.0 [bar] | from the front |
| MCPS1514L | 280 [N] | 5.5 [bar] | from above |
| MCPS1514L-LP | 145 [N] | 4.0 [bar] | from above |
| MCPS1503MW | 240 [N] | 5.5 [bar] | from above |
| MCPS1503MW-LP | 145 [N] | 4.0 [bar] | from above |
| MCPS2001A | 400 [N] | 5.5 [bar] | from above |
| MCPS2001A-LP | 300 [N] | 4.0 [bar] | from above |
| MCPS2005A | 400 [N] | 5.5 [bar] | from above |
| MCPS2005A-LP | 300 [N] | 4.0 [bar] | from above |
| MCPS2501H | 400 [N] | 5.5 [bar] | from above |
| MCPS2501H-LP | 300 [N] | 4.0 [bar] | from above |
| MCPS1701B | 250 [N] | 5.5 [bar] | from above |
| MCPS1701B-LP | 145 [N] | 4.0 [bar] | from above |
| MCPS1500MW | 280 [N] | 5.5 [bar] | from above |
| MCPS1500MW-LP | 145 [N] | 4.0 [bar] | from above |
