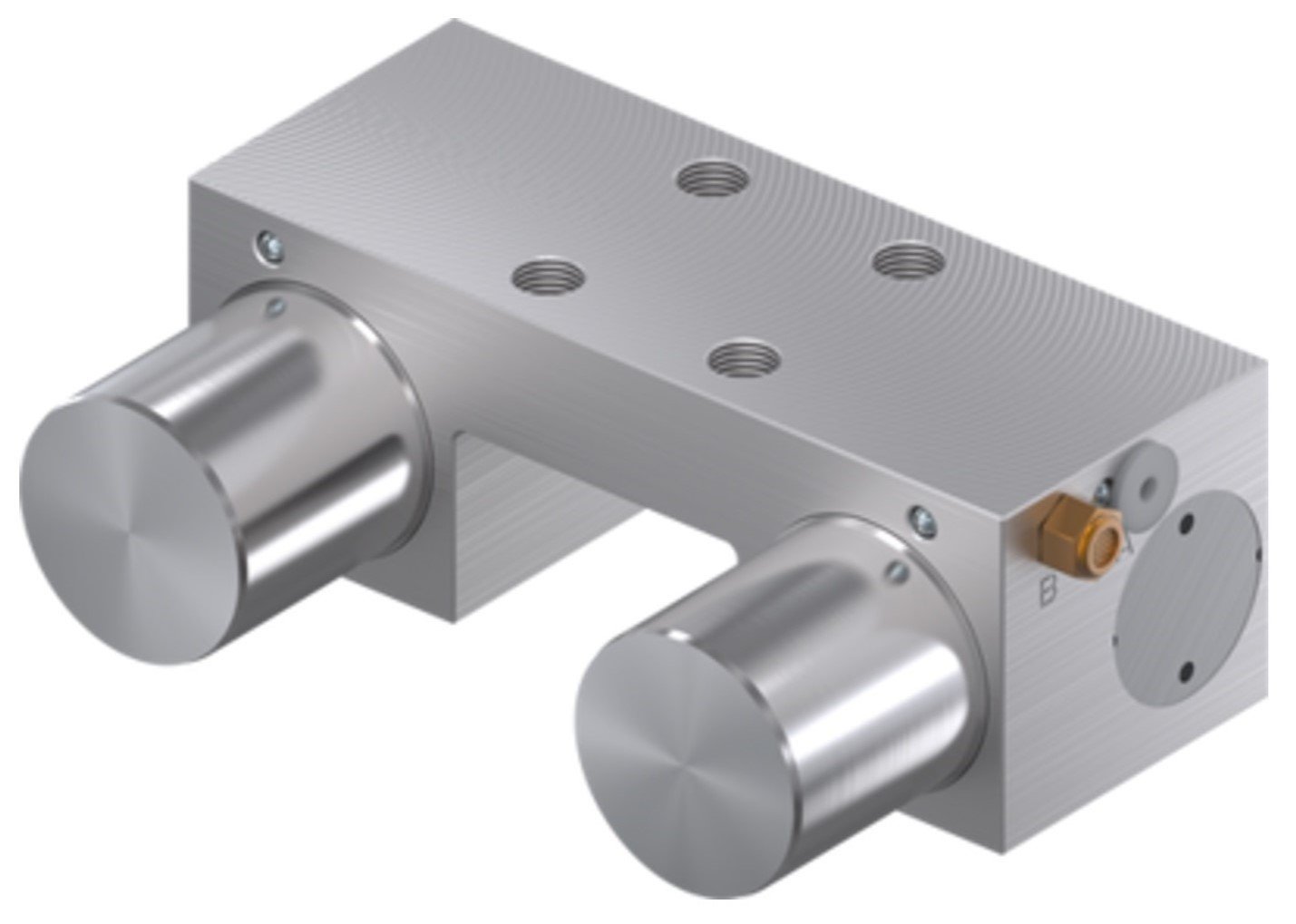

Frana pneumatica ghidaj liniar Seria MKS
- Produse originale Zimmer Group GmbH - Quality Made in Germany!
- Pentru aproape toate sisteme de ghidaje liniare - Independent de fabricantul sinei de ghidare liniara
- Energizare pentru deschidere (NC)
- Deschidere prin aer comprimat
- Forța de strangere mai mare mai mare prin activare PLUS air
- Element de siguranță - strangere sigură în caz de pana de curent
- Fezabilitate mare - până la 5 milioane de cicluri de prindere static
| Order-No. | Holding force | Operating pressure min. | Installation direction |
|---|---|---|---|
| [N] | [bar] | ||
| MKS1201A | 250 [N] | 5.5 [bar] | from above |
| MKS1201A-LP | 150 [N] | 4 [bar] | from above |
| MKS1501-300 | 400 [N] | 5.5 [bar] | from above |
| MKS1501-300-LP | 300 [N] | 4 [bar] | from above |
| MKS1501A | 400 [N] | 5.5 [bar] | from above |
| MKS1501A-LP | 300 [N] | 4 [bar] | from above |
| MKS1501E | 400 [N] | 5.5 [bar] | from the front |
| MKS1501E-LP | 300 [N] | 4 [bar] | from the front |
| MKS1501S | 400 [N] | 5.5 [bar] | from the front |
| MKS1501S-LP | 300 [N] | 4 [bar] | from the front |
| MKS1502K | 400 [N] | 5.5 [bar] | from above |
| MKS1502K-LP | 300 [N] | 4 [bar] | from above |
| MKS1502KB | 400 [N] | 5.5 [bar] | from above |
| MKS1502KB-LP | 300 [N] | 4 [bar] | from above |
| MKS1503BM | 400 [N] | 5.5 [bar] | from the front |
| MKS1503BM-LP | 300 [N] | 4 [bar] | from the front |
| MKS1504F | 400 [N] | 5.5 [bar] | from the front |
| MKS1504F-LP | 300 [N] | 4 [bar] | from the front |
| MKS1505A | 400 [N] | 5.5 [bar] | from above |
| MKS1505A-LP | 300 [N] | 4 [bar] | from above |
| MKS1505AK | 400 [N] | 5.5 [bar] | from the front |
| MKS1505AK-LP | 300 [N] | 4 [bar] | from above |
| MKS1505G | 300 [N] | 5.5 [bar] | from above |
| MKS1505G-LP | 250 [N] | 4 [bar] | from above |
| MKS1510B | 400 [N] | 5.5 [bar] | from the front |
| MKS1510B-LP | 300 [N] | 4 [bar] | from the front |
| MKS1512I | 400 [N] | 5.5 [bar] | from the front |
| MKS1512I-LP | 300 [N] | 4 [bar] | from the front |
| MKS1514D | 400 [N] | 5.5 [bar] | from the front |
| MKS1514D-LP | 300 [N] | 4 [bar] | from the front |
| MKS1701B | 250 [N] | 5.5 [bar] | from above |
| MKS1701B-LP | 145 [N] | 4 [bar] | from above |
| MKS2001A | 600 [N] | 5.5 [bar] | from above |
| MKS2001A-LP | 500 [N] | 4 [bar] | from above |
| MKS2001E | 600 [N] | 5.5 [bar] | from the front |
| MKS2001E-LP | 500 [N] | 4 [bar] | from the front |
| MKS2001G | 400 [N] | 5.5 [bar] | from above |
| MKS2001G-LP | 300 [N] | 4 [bar] | from above |
| MKS2002K | 600 [N] | 5.5 [bar] | from above |
| MKS2002K-LP | 500 [N] | 4 [bar] | from above |
| MKS2002KB | 600 [N] | 5.5 [bar] | from above |
| MKS2002KB-LP | 500 [N] | 4 [bar] | from above |
| MKS2003BM | 600 [N] | 5.5 [bar] | from the front |
| MKS2003BM-LP | 500 [N] | 4 [bar] | from the front |
| MKS2004F | 600 [N] | 5.5 [bar] | from the front |
| MKS2004F-LP | 500 [N] | 4 [bar] | from the front |
| MKS2005A | 600 [N] | 5.5 [bar] | from above |
| MKS2005A-LP | 500 [N] | 4 [bar] | from above |
| MKS2005AK | 600 [N] | 5.5 [bar] | from the front |
| MKS2005AK-LP | 400 [N] | 4 [bar] | from above |
| MKS2005G | 400 [N] | 5.5 [bar] | from above |
| MKS2005G-LP | 300 [N] | 4 [bar] | from above |
| MKS2005KB | 400 [N] | 5.5 [bar] | from the front |
| MKS2005KB-LP | 300 [N] | 4 [bar] | from the front |
| MKS2005KN | 400 [N] | 5.5 [bar] | from the front |
| MKS2005KN-LP | 300 [N] | 4 [bar] | from the front |
| MKS2010B | 600 [N] | 5.5 [bar] | from the front |
| MKS2010B-LP | 400 [N] | 4 [bar] | from the front |
| MKS2012F | 600 [N] | 5.5 [bar] | from the front |
| MKS2012F-LP | 400 [N] | 4 [bar] | from the front |
| MKS2012I | 600 [N] | 5.5 [bar] | from the front |
| MKS2012I-LP | 400 [N] | 4 [bar] | from the front |
| MKS2014D | 400 [N] | 5.5 [bar] | from above |
| MKS2014D-LP | 300 [N] | 4 [bar] | from above |
| MKS2701B | 600 [N] | 5.5 [bar] | from above |
| MKS2501-1000 | 750 [N] | 5.5 [bar] | from above |
| MKS2501-1000-LP | 650 [N] | 4 [bar] | from above |
| MKS2501A | 750 [N] | 5.5 [bar] | from above |
| MKS2501A-LP | 650 [N] | 4 [bar] | from above |
| MKS2501E | 750 [N] | 5.5 [bar] | from the front |
| MKS2501E-LP | 550 [N] | 4 [bar] | from the front |
| MKS2501G | 750 [N] | 5.5 [bar] | from above |
| MKS2501G-LP | 650 [N] | 4 [bar] | from above |
| MKS2501N | 750 [N] | 5.5 [bar] | from above |
| MKS2501N-LP | 600 [N] | 4 [bar] | from above |
| MKS2501S | 750 [N] | 5.5 [bar] | from the front |
| MKS2501S-LP | 550 [N] | 4 [bar] | from the front |
| MKS2502K | 750 [N] | 5.5 [bar] | from above |
| MKS2502K-LP | 600 [N] | 4 [bar] | from above |
| MKS2502KB | 750 [N] | 5.5 [bar] | from above |
| MKS2502KB-LP | 600 [N] | 4 [bar] | from above |
| MKS2502R | 750 [N] | 5.5 [bar] | from the front |
| MKS2502R-LP | 640 [N] | 4 [bar] | from the front |
| MKS2503B | 750 [N] | 5.5 [bar] | from the front |
| MKS2503B-LP | 550 [N] | 4 [bar] | from the front |
| MKS2503MR | 750 [N] | 5.5 [bar] | from the front |
| MKS2503MR-LP | 550 [N] | 4 [bar] | from the front |
| MKS2505A | 750 [N] | 5.5 [bar] | from above |
| MKS2505A-LP | 550 [N] | 4 [bar] | from above |
| MKS2505AK | 750 [N] | 5.5 [bar] | from the front |
| MKS2505AK-LP | 550 [N] | 4 [bar] | from the front |
| MKS2505AR | 750 [N] | 5.5 [bar] | from the front |
| MKS2505AR-LP | 650 [N] | 4 [bar] | from the front |
| MKS2505G | 500 [N] | 5.5 [bar] | from above |
| MKS2505G-LP | 400 [N] | 4 [bar] | from above |
| MKS2505KB | 750 [N] | 5.5 [bar] | from the front |
| MKS2505KB-LP | 550 [N] | 4 [bar] | from the front |
| MKS2505KN | 750 [N] | 5.5 [bar] | from the front |
| MKS2505KN-LP | 550 [N] | 4 [bar] | from the front |
| MKS2512F | 750 [N] | 5.5 [bar] | from the front |
| MKS2512F-LP | 550 [N] | 4 [bar] | from the front |
| MKS2512I | 750 [N] | 5.5 [bar] | from the front |
| MKS2512I-LP | 550 [N] | 4 [bar] | from the front |
| MKS2514D | 750 [N] | 5.5 [bar] | from above |
| MKS2514D-LP | 550 [N] | 4 [bar] | from above |
| MKS2514E | 750 [N] | 5.5 [bar] | from the front |
| MKS2514E-LP | 550 [N] | 4 [bar] | from the front |
| MKS2701B-LP | 500 [N] | 4 [bar] | from above |
| MKS2101B | 400 [N] | 5.5 [bar] | from above |
| MKS2101B-LP | 300 [N] | 4 [bar] | from above |
| MKS3001A | 1050 [N] | 5.5 [bar] | from above |
| MKS3001A-LP | 850 [N] | 4 [bar] | from above |
| MKS3001E | 750 [N] | 5.5 [bar] | from the front |
| MKS3001E-LP | 550 [N] | 4 [bar] | from the front |
| MKS3001G | 1050 [N] | 5.5 [bar] | from above |
| MKS3001G-LP | 850 [N] | 4 [bar] | from above |
| MKS3001S | 750 [N] | 5.5 [bar] | from the front |
| MKS3001S-LP | 550 [N] | 4 [bar] | from the front |
| MKS3002K | 1050 [N] | 5.5 [bar] | from above |
| MKS3002K-LP | 850 [N] | 4 [bar] | from above |
| MKS3002KB | 1050 [N] | 5.5 [bar] | from above |
| MKS3002KB-LP | 850 [N] | 4 [bar] | from above |
| MKS3003BM | 1050 [N] | 5.5 [bar] | from the front |
| MKS3003BM-LP | 850 [N] | 4 [bar] | from the front |
| MKS3003MR | 1050 [N] | 5.5 [bar] | from above |
| MKS3003MR-LP | 850 [N] | 4 [bar] | from above |
| MKS3004F | 750 [N] | 5.5 [bar] | from the front |
| MKS3004F-LP | 550 [N] | 4 [bar] | from the front |
| MKS3005A | 1050 [N] | 5.5 [bar] | from above |
| MKS3005A-LP | 850 [N] | 4 [bar] | from above |
| MKS3005AK | 1050 [N] | 5.5 [bar] | from the front |
| MKS3005AK-LP | 850 [N] | 4 [bar] | from the front |
| MKS3005G | 750 [N] | 5.5 [bar] | from above |
| MKS3005G-LP | 550 [N] | 4 [bar] | from above |
| MKS3012F | 750 [N] | 5.5 [bar] | from the front |
| MKS3012F-LP | 550 [N] | 4 [bar] | from the front |
| MKS3012I | 750 [N] | 5.5 [bar] | from the front |
| MKS3012I-LP | 550 [N] | 4 [bar] | from the front |
| MKS3014E | 750 [N] | 5.5 [bar] | from the front |
| MKS3014E-LP | 550 [N] | 4 [bar] | from the front |
| MKS3501-1000 | 1250 [N] | 5.5 [bar] | from above |
| MKS3501-1000-LP | 700 [N] | 4 [bar] | from above |
| MKS3501A | 1250 [N] | 5.5 [bar] | from above |
| MKS3501A-LP | 1100 [N] | 4 [bar] | from above |
| MKS3501E | 1250 [N] | 5.5 [bar] | from the front |
| MKS3501E-LP | 900 [N] | 4 [bar] | from the front |
| MKS3501F | 1250 [N] | 5.5 [bar] | from above |
| MKS3501F-LP | 900 [N] | 4 [bar] | from above |
| MKS3501G | 1050 [N] | 5.5 [bar] | from above |
| MKS3501G-LP | 850 [N] | 4 [bar] | from above |
| MKS3502D | 1250 [N] | 5.5 [bar] | from the front |
| MKS3502D-LP | 900 [N] | 4 [bar] | from the front |
| MKS3502K | 1250 [N] | 5.5 [bar] | from above |
| MKS3502K-LP | 1100 [N] | 4 [bar] | from above |
| MKS3502KB | 1250 [N] | 5.5 [bar] | from above |
| MKS3502KB-LP | 1100 [N] | 4 [bar] | from above |
| MKS3503BM | 1250 [N] | 5.5 [bar] | from the front |
| MKS3503BM-LP | 1100 [N] | 4 [bar] | from the front |
| MKS3503MR | 1250 [N] | 5.5 [bar] | from the front |
| MKS3503MR-LP | 1100 [N] | 4 [bar] | from the front |
| MKS3504F | 1250 [N] | 5.5 [bar] | from the front |
| MKS3504F-LP | 1100 [N] | 4 [bar] | from the front |
| MKS3505A | 1250 [N] | 5.5 [bar] | from above |
| MKS3505A-LP | 900 [N] | 4 [bar] | from above |
| MKS3505AK | 1250 [N] | 5.5 [bar] | from the front |
| MKS3505AK-LP | 900 [N] | 4 [bar] | from above |
| MKS3505AR | 1250 [N] | 5.5 [bar] | from the front |
| MKS3505AR-LP | 900 [N] | 4 [bar] | from the front |
| MKS3505G | 900 [N] | 5.5 [bar] | from above |
| MKS3505G-LP | 650 [N] | 4 [bar] | from above |
| MKS3505KB | 1250 [N] | 5.5 [bar] | from above |
| MKS3505KB-LP | 900 [N] | 4 [bar] | from above |
| MKS3512F | 1250 [N] | 5.5 [bar] | from the front |
| MKS3512F-LP | 900 [N] | 4 [bar] | from the front |
| MKS3512I | 1250 [N] | 5.5 [bar] | from the front |
| MKS3512I-LP | 900 [N] | 4 [bar] | from the front |
| MKS3514D | 1250 [N] | 5.5 [bar] | from above |
| MKS3514D-LP | 900 [N] | 4 [bar] | from above |
| MKS3514E | 1250 [N] | 5.5 [bar] | from the front |
| MKS3514E-LP | 900 [N] | 4 [bar] | from the front |
| MKS3501B | 750 [N] | 5.5 [bar] | from above |
| MKS3501B-LP | 550 [N] | 4 [bar] | from above |
| MKS4501-1000 | 1000 [N] | 5.5 [bar] | from above |
| MKS4501-1000-LP | 750 [N] | 4 [bar] | from above |
| MKS4501A | 1450 [N] | 5.5 [bar] | from above |
| MKS4501A-LP | 1350 [N] | 4 [bar] | from above |
| MKS4501E | 1450 [N] | 5.5 [bar] | from the front |
| MKS4501E-LP | 1350 [N] | 4 [bar] | from the front |
| MKS4501F | 1450 [N] | 5.5 [bar] | from above |
| MKS4501F-LP | 1350 [N] | 4 [bar] | from above |
| MKS4502E | 1450 [N] | 5.5 [bar] | from the front |
| MKS4502E-LP | 1350 [N] | 4 [bar] | from the front |
| MKS4502K | 1450 [N] | 5.5 [bar] | from above |
| MKS4502K-LP | 1350 [N] | 4 [bar] | from above |
| MKS4502R | 1450 [N] | 5.5 [bar] | from the front |
| MKS4502R-LP | 1050 [N] | 4 [bar] | from the front |
| MKS5001B | 1250 [N] | 5.5 [bar] | from above |
| MKS5001B-LP | 900 [N] | 4 [bar] | from above |
| MKS5501A | 1450 [N] | 5.5 [bar] | from above |
| MKS5501A-LP | 1350 [N] | 4 [bar] | from above |
| MKS5501F | 1450 [N] | 5.5 [bar] | from the front |
| MKS5501F-LP | 1350 [N] | 4 [bar] | from the front |
| MKS5501SR | 1450 [N] | 5.5 [bar] | from above |
| MKS5501SR-LP | 1350 [N] | 4 [bar] | from above |
| MKS5502K | 1450 [N] | 5.5 [bar] | from above |
| MKS5502K-LP | 1350 [N] | 4 [bar] | from above |
| MKS5502R | 1450 [N] | 5.5 [bar] | from the front |
| MKS5502R-LP | 1350 [N] | 4 [bar] | from the front |
| MKS5503MR | 1450 [N] | 5.5 [bar] | from the front |
| MKS5503MR-LP | 1350 [N] | 4 [bar] | from the front |
| MKS5504F | 1450 [N] | 5.5 [bar] | from the front |
| MKS5504F-LP | 1350 [N] | 4 [bar] | from the front |
| MKS5505AK | 1450 [N] | 5.5 [bar] | from the front |
| MKS5505AK-LP | 1350 [N] | 4 [bar] | from the front |
| MKS5505AR | 1450 [N] | 5.5 [bar] | from the front |
| MKS5505AR-LP | 1350 [N] | 4 [bar] | from the front |
| MKS5514C | 1450 [N] | 5.5 [bar] | from above |
| MKS5514C-LP | 1350 [N] | 4 [bar] | from above |
| MKS5514E | 1450 [N] | 5.5 [bar] | from the front |
| MKS5514E-LP | 1350 [N] | 4 [bar] | from the front |
| MKS5515A | 1450 [N] | 5.5 [bar] | from the front |
| MKS5515A-LP | 1350 [N] | 4 [bar] | from the front |
| MKS6501-1000 | 1450 [N] | 5.5 [bar] | from above |
| MKS6501-1000-LP | 1350 [N] | 4 [bar] | from above |
| MKS6501A | 1450 [N] | 5.5 [bar] | from above |
| MKS6501A-LP | 1350 [N] | 4 [bar] | from above |
| MKS6501E | 1450 [N] | 5.5 [bar] | from the front |
| MKS6501E-LP | 1350 [N] | 4 [bar] | from the front |
| MKS6501F | 1450 [N] | 5.5 [bar] | from the front |
| MKS6501F-LP | 1350 [N] | 4 [bar] | from the front |
| MKS6501N | 1450 [N] | 5.5 [bar] | from above |
| MKS6501N-LP | 1350 [N] | 4 [bar] | from above |
| MKS6502R | 1450 [N] | 5.5 [bar] | from above |
| MKS6502R-LP | 1350 [N] | 4 [bar] | from above |
| MKS6503MR | 1450 [N] | 5.5 [bar] | from the front |
| MKS6503MR-LP | 1350 [N] | 4 [bar] | from the front |
| MKS6504F | 1450 [N] | 5.5 [bar] | from the front |
| MKS6504F-LP | 1350 [N] | 4 [bar] | from the front |
| MKS6505A | 1450 [N] | 5.5 [bar] | from above |
| MKS6505A-LP | 1350 [N] | 4 [bar] | from above |
| MKS6505AK | 1450 [N] | 5.5 [bar] | from the front |
| MKS6505AK-LP | 1350 [N] | 4 [bar] | from the front |
| MKS6505AR | 1450 [N] | 5.5 [bar] | from the front |
| MKS6505AR-LP | 1350 [N] | 4 [bar] | from the front |
| MKS6512F | 1450 [N] | 5.5 [bar] | from the front |
| MKS6512F-LP | 1350 [N] | 4 [bar] | from the front |
| MKS6514E | 1450 [N] | 5.5 [bar] | from the front |
| MKS6514E-LP | 1350 [N] | 4 [bar] | from the front |
| MKS4503BM | 1450 [N] | 5.5 [bar] | from the front |
| MKS4503BM-LP | 1350 [N] | 4 [bar] | from the front |
| MKS4503MR | 1450 [N] | 5.5 [bar] | from the front |
| MKS4503MR-LP | 1350 [N] | 4 [bar] | from the front |
| MKS4504F | 1450 [N] | 5.5 [bar] | from the front |
| MKS4504F-LP | 1350 [N] | 4 [bar] | from the front |
| MKS4505A | 1450 [N] | 5.5 [bar] | from above |
| MKS4505A-LP | 1350 [N] | 4 [bar] | from above |
| MKS4505AK | 1450 [N] | 5.5 [bar] | from the front |
| MKS4505AK-LP | 1350 [N] | 4 [bar] | from the front |
| MKS4505AR | 1450 [N] | 5.5 [bar] | from the front |
| MKS4505AR-LP | 1350 [N] | 4 [bar] | from the front |
| MKS4505G | 1000 [N] | 5.5 [bar] | from above |
| MKS4505G-LP | 750 [N] | 4 [bar] | from above |
| MKS4510B | 1450 [N] | 5.5 [bar] | from the front |
| MKS4510B-LP | 1350 [N] | 4 [bar] | from the front |
| MKS4512F | 1450 [N] | 5.5 [bar] | from the front |
| MKS4512F-LP | 1350 [N] | 4 [bar] | from the front |
| MKS4514D | 1450 [N] | 5.5 [bar] | from above |
| MKS4514D-LP | 1350 [N] | 4 [bar] | from above |
| MKS4514E | 1450 [N] | 5.5 [bar] | from the front |
| MKS4514E-LP | 1350 [N] | 4 [bar] | from the front |
| MKS8501A | 1450 [N] | 5.5 [bar] | from above |
| MKS8501A-LP | 1350 [N] | 4 [bar] | from above |
90
