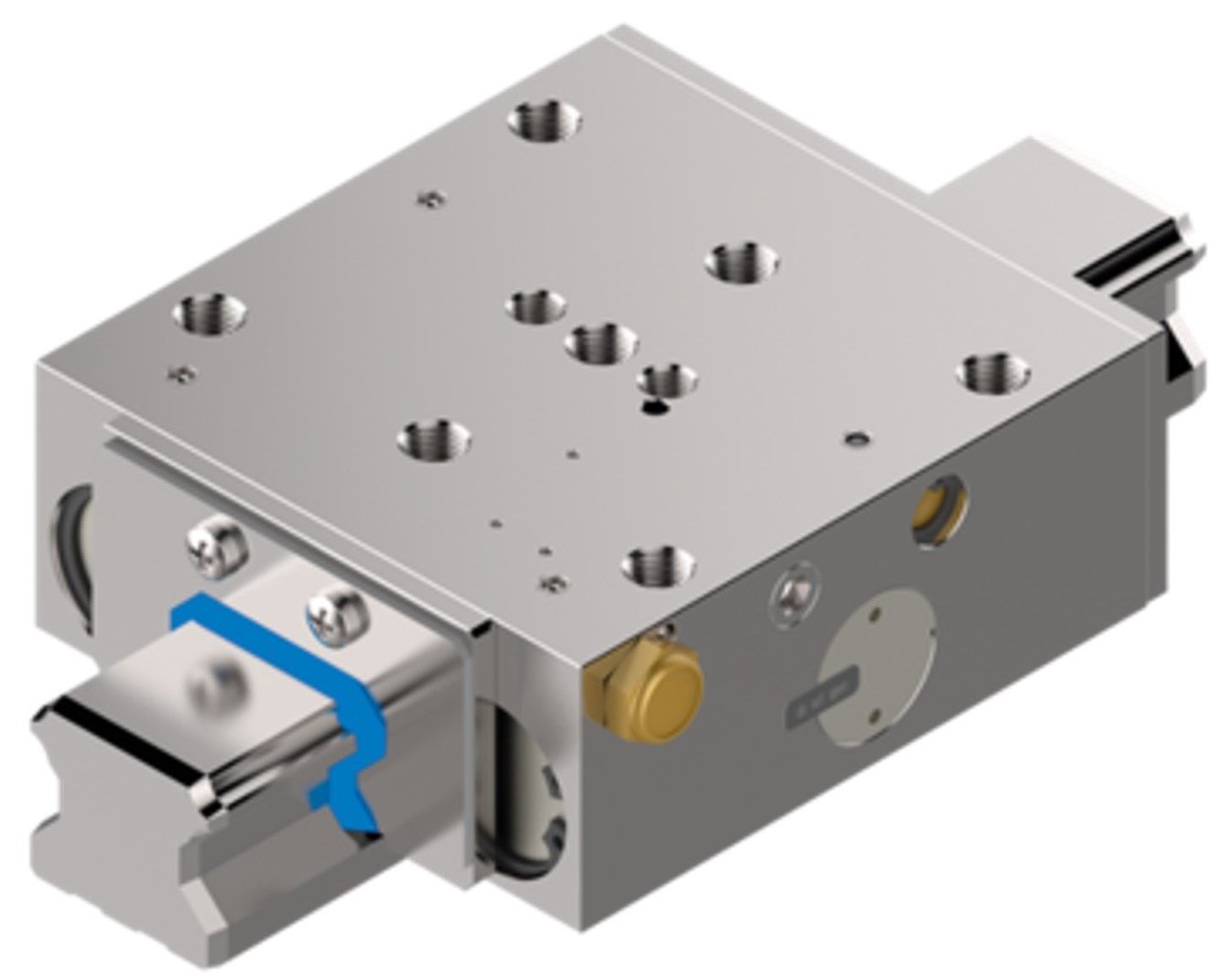

Frana pneumatica ghidaj liniar Seria UBPS
- Produse originale Zimmer Group GmbH - Quality Made in Germany!
- Pentru o gama larga de sisteme de ghidaj liniar - Independent de fabricantul sinei de ghidare liniara
- Energizare pentru deschidere (NC)
- Deschidere prin aer comprimat
- Forța de strangere mai mare mai mare prin activare PLUS air
- Element de siguranță - strangere sigură în caz de pana de curent
- Fezabilitate mare - până la 5 milioane de cicluri de prindere static
| Order-No. | Holding force |
Operating pressure min. |
Installation direction |
|---|---|---|---|
| [N] | [bar] | ||
| UBPS2501AS1 | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2501AS1-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2501AS1A | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2501AS1A-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2501CS1 | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2501CS1-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2501CS1A | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2501CS1A-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2501ES1 | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2501ES1-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2501ES1A | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2501ES1A-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2501GS1 | 1000 [N] | 5.5 [bar] | from above |
| UBPS2501GS1-LP | 750 [N] | 4 [bar] | from above |
| UBPS2501GS1A | 1000 [N] | 5.5 [bar] | from the front |
| UBPS2501GS1A-LP | 750 [N] | 4 [bar] | from the front |
| UBPS2501IS1 | 1200 [N] | 5.5 [bar] | from above |
| UBPS2501IS1-LP | 1000 [N] | 4 [bar] | from above |
| UBPS2501RS1 | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2501RS1-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2501RS1A | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2501RS1A-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2501SS1 | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2501SS1-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2501SS1A | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2501SS1A-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2502AS1 | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2502AS1-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2502AS1A | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2502AS1A-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2502BS1 | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2502BS1-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2502BS1A | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2502BS1A-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2502DS1 | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2502DS1-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2502DS1A | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2502DS1A-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2503AS1 | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2503AS1-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2503AS1A | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2503AS1A-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2504BS1 | 1200 [N] | 5.5 [bar] | from above |
| UBPS2504BS1-LP | 1000 [N] | 4 [bar] | from above |
| UBPS2504BS1A | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2504BS1A-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2504FS1 | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2504FS1-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2504FS1A | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2504FS1A-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2505AS1 | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2505AS1-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2505AS1A | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2505AS1A-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2505BS1 | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2505BS1-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2505BS1A | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2505BS1A-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2510AS1 | 1200 [N] | 5.5 [bar] | from above |
| UBPS2510AS1-LP | 1000 [N] | 4 [bar] | from above |
| UBPS2510AS1A | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2510AS1A-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2510BS1 | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2510BS1-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2510BS1A | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2510BS1A-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2512ES1 | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2512ES1-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2512ES1A | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2512ES1A-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS2512FS1 | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2512FS1-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2512FS1A | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2512FS1A-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2514DS1 | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2514DS1-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2514DS1A | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2514DS1A-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2514ES1 | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2514ES1-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2514ES1A | 1500 [N] | 5.5 [bar] | from the front |
| UBPS2514ES1A-LP | 1050 [N] | 4 [bar] | from the front |
| UBPS2514KS1 | 1200 [N] | 5.5 [bar] | from above |
| UBPS2514KS1-LP | 1000 [N] | 4 [bar] | from above |
| UBPS2514KS1A | 1200 [N] | 5.5 [bar] | from the front |
| UBPS2514KS1A-LP | 1000 [N] | 4 [bar] | from the front |
| UBPS3001AS1 | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3001AS1-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3001AS1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3001AS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3001CS1 | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3001CS1-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3001CS1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3001CS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3001ES1 | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3001ES1-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3001ES1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3001ES1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3001RS1 | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3001RS1-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3001RS1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3001RS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3001SS1 | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3001SS1-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3001SS1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3001SS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3002AS1 | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3002AS1-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3002AS1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3002AS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3002BS1 | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3002BS1-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3002BS1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3002BS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3002CS1 | 1750 [N] | 5.5 [bar] | from above |
| UBPS3002CS1-LP | 1300 [N] | 4 [bar] | from above |
| UBPS3003AS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3003AS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3003AS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3003AS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3004AS1 | 1750 [N] | 5.5 [bar] | from above |
| UBPS3004AS1-LP | 1300 [N] | 4 [bar] | from above |
| UBPS3004AS1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3004AS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3004BS1 | 1750 [N] | 5.5 [bar] | from above |
| UBPS3004BS1-LP | 1300 [N] | 4 [bar] | from above |
| UBPS3004BS1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3004BS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3004FS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3004FS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3004FS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3004FS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3005AS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3005AS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3005AS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3005AS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3010AS1 | 1750 [N] | 5.5 [bar] | from above |
| UBPS3010AS1-LP | 1300 [N] | 4 [bar] | from above |
| UBPS3010AS1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3010AS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3010BS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3010BS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3010BS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3010BS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3010DS1 | 1750 [N] | 5.5 [bar] | from above |
| UBPS3010DS1-LP | 1300 [N] | 4 [bar] | from above |
| UBPS3010DS1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3010DS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3012CS1 | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3012CS1-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3012CS1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3012CS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3012ES1 | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3012ES1-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3012ES1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3012ES1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3012FS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3012FS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3012FS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3012FS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3014AS1 | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3014AS1-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3014AS1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3014AS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3014CS1 | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3014CS1-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3014DS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3014DS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3014DS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3014DS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3014GS1 | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3014GS1-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3014GS1A | 1750 [N] | 5.5 [bar] | from the front |
| UBPS3014GS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3014KS1 | 1750 [N] | 5.5 [bar] | from above |
| UBPS3014KS1-LP | 1300 [N] | 4 [bar] | from above |
| UBPS3014KS1A | 1750 [N] | 5.5 [bar] | from above |
| UBPS3014KS1A-LP | 1300 [N] | 4 [bar] | from the front |
| UBPS3501AS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3501AS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3501AS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3501AS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3501BS1 | 2500 [N] | 5.5 [bar] | from above |
| UBPS3501BS1-LP | 1800 [N] | 4 [bar] | from above |
| UBPS3501BS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3501BS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3501CS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3501CS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3501CS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3501CS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3501ES1 | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3501ES1-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3501ES1A | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3501ES1A-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3501IS1 | 2500 [N] | 5.5 [bar] | from above |
| UBPS3501IS1-LP | 1800 [N] | 4 [bar] | from above |
| UBPS3501PS1 | 2500 [N] | 5.5 [bar] | from above |
| UBPS3501PS1-LP | 1800 [N] | 4 [bar] | from above |
| UBPS3501PS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3501PS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3501RS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3501RS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3501RS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3501RS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3501SS1 | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3501SS1-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3501SS1A | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3501SS1A-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3502AS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3502AS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3502AS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3502AS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3502BS1 | 2600 [N] | 5.5 [bar] | from the front |
| UBPS3502BS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3502BS1A | 2600 [N] | 5.5 [bar] | from the front |
| UBPS3502BS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3502CS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3502CS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3502DS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3502DS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3502DS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3502DS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3503AS1 | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3503AS1-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3503AS1A | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3503AS1A-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3504AS1 | 2500 [N] | 5.5 [bar] | from above |
| UBPS3504AS1-LP | 1800 [N] | 4 [bar] | from above |
| UBPS3504AS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3504AS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3504BS1 | 2500 [N] | 5.5 [bar] | from above |
| UBPS3504BS1-LP | 1800 [N] | 4 [bar] | from above |
| UBPS3504BS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3504BS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3504FS1 | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3504FS1A | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3504FS1A-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3504FS1-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3505AS1 | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3505AS1-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3505AS1A | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3505AS1A-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3505BS1 | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3505BS1-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3505BS1A | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3505BS1A-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3510AS1 | 2500 [N] | 5.5 [bar] | from above |
| UBPS3510AS1-LP | 1800 [N] | 4 [bar] | from above |
| UBPS3510AS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3510AS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3510BS1 | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3510BS1-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3510BS1A | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3510BS1A-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3510DS1 | 2500 [N] | 5.5 [bar] | from above |
| UBPS3510DS1-LP | 1800 [N] | 4 [bar] | from above |
| UBPS3510DS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS3510DS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3512CS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS4501AS1 | 3100 [N] | 5.5 [bar] | from the front |
| UBPS3512CS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3512CS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS4501AS1-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4501AS1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS3512CS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3512ES1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS4501AS1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4501BS1 | 3100 [N] | 5.5 [bar] | from above |
| UBPS3512ES1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3512ES1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS4501BS1-LP | 2350 [N] | 4 [bar] | from above |
| UBPS4501BS1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS3512ES1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3512FS1 | 2800 [N] | 5.5 [bar] | from the front |
| UBPS4501BS1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4501CS1 | 3100 [N] | 5.5 [bar] | from the front |
| UBPS3512FS1-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3512FS1A | 2800 [N] | 5.5 [bar] | from the front |
| UBPS4501CS1-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4501CS1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS3512FS1A-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS4501CS1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4501ES1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS3514AS1 | 2500 [N] | 5.5 [bar] | from above |
| UBPS4501ES1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4501ES1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS3514AS1-LP | 1800 [N] | 4 [bar] | from above |
| UBPS3514AS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS4501ES1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4501FS1 | 3100 [N] | 5.5 [bar] | from the front |
| UBPS3514AS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3514CS1 | 2500 [N] | 5.5 [bar] | from above |
| UBPS4501FS1-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4501FS1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS3514CS1-LP | 1800 [N] | 4 [bar] | from above |
| UBPS4501FS1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4501IS1 | 3100 [N] | 5.5 [bar] | from above |
| UBPS3514ES1 | 2800 [N] | 5.5 [bar] | from the front |
| UBPS3514ES1-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS4501IS1-LP | 2350 [N] | 4 [bar] | from above |
| UBPS3514ES1A | 2800 [N] | 5.5 [bar] | from the front |
| UBPS4501PS1 | 3100 [N] | 5.5 [bar] | from above |
| UBPS3514ES1A-LP | 2000 [N] | 4 [bar] | from the front |
| UBPS3514GS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS4501PS1-LP | 2350 [N] | 4 [bar] | from above |
| UBPS4501PS1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS3514GS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3514GS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS4501PS1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4501RS1 | 3100 [N] | 5.5 [bar] | from above |
| UBPS3514GS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3514KS1 | 2500 [N] | 5.5 [bar] | from the front |
| UBPS4501RS1-LP | 2350 [N] | 4 [bar] | from above |
| UBPS4501RS1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS3514KS1-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS3514KS1A | 2500 [N] | 5.5 [bar] | from the front |
| UBPS4501RS1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4501SS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS3514KS1A-LP | 1800 [N] | 4 [bar] | from the front |
| UBPS4501SS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4501SS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4501SS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4502AS1 | 3100 [N] | 5.5 [bar] | from the front |
| UBPS4502AS1-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4502AS1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS4502AS1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4502BS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4502BS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4502BS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4502BS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4502DS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4502DS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4502DS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4502DS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4503AS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4503AS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4503AS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4503AS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4504BS1 | 3100 [N] | 5.5 [bar] | from above |
| UBPS4504BS1-LP | 2350 [N] | 4 [bar] | from above |
| UBPS4504BS1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS4504BS1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4504FS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4504FS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4504FS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4504FS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4505AS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4505AS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4505AS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4505AS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4505BS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4505BS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4505BS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4505BS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4510AS1 | 3100 [N] | 5.5 [bar] | from above |
| UBPS4510AS1-LP | 2350 [N] | 4 [bar] | from above |
| UBPS4510AS1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS4510AS1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4510BS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4510BS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4510BS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4510BS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4510DS1 | 3100 [N] | 5.5 [bar] | from above |
| UBPS4510DS1-LP | 2350 [N] | 4 [bar] | from above |
| UBPS4510DS1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS4510DS1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4512ES1 | 3100 [N] | 5.5 [bar] | from the front |
| UBPS4512ES1-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4512ES1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS4512ES1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS4512FS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4512FS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4512FS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4512FS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4512IS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4512IS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4512IS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4512IS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4514AS1 | 3100 [N] | 5.5 [bar] | from the front |
| UBPS4514AS1-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS5501AS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4514AS1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS4514AS1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS5501AS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4514CS1 | 3100 [N] | 5.5 [bar] | from the front |
| UBPS5501AS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4514CS1-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS5501AS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5501BS1L | 5200 [N] | 5.5 [bar] | from above |
| UBPS4514ES1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5501BS1L-LP | 4000 [N] | 4 [bar] | from above |
| UBPS5501BS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4514ES1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4514ES1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5501BS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4514ES1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5501CS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4514FS1 | 3100 [N] | 5.5 [bar] | from the front |
| UBPS4514FS1-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS5501CS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4514GS1 | 3100 [N] | 5.5 [bar] | from the front |
| UBPS5501CS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4514GS1-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS5501CS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS4514GS1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS5501ES1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS4514GS1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS5501ES1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5501ES1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS4514KS1 | 3100 [N] | 5.5 [bar] | from the front |
| UBPS4514KS1-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS5501ES1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS4514KS1A | 3100 [N] | 5.5 [bar] | from the front |
| UBPS5501FS1L | 5200 [N] | 5.5 [bar] | from above |
| UBPS4514KS1A-LP | 2350 [N] | 4 [bar] | from the front |
| UBPS5501FS1L-LP | 4000 [N] | 4 [bar] | from above |
| UBPS5501FS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS4515BS1 | 3100 [N] | 5.5 [bar] | from above |
| UBPS5501FS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5501IS1L | 5200 [N] | 5.5 [bar] | from above |
| UBPS4515BS1-LP | 2350 [N] | 4 [bar] | from above |
| UBPS5501IS1L-LP | 4000 [N] | 4 [bar] | from above |
| UBPS5501PS1L | 5200 [N] | 5.5 [bar] | from above |
| UBPS5501PS1L-LP | 4000 [N] | 4 [bar] | from above |
| UBPS5501PS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5501PS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5501RS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5501RS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5501RS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5501RS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5501SS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5501SS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5501SS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5501SS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5502AS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5502AS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5502AS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5502AS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5502BS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5502BS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5502BS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5502BS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5502DS1L | 6200 [N] | 5.5 [bar] | from the front |
| UBPS5502DS1L-LP | 4500 [N] | 4 [bar] | from the front |
| UBPS5502DS1LA | 6200 [N] | 5.5 [bar] | from the front |
| UBPS5502DS1LA-LP | 4500 [N] | 4 [bar] | from the front |
| UBPS5503AS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5503AS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5503AS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5503AS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5504BS1L | 5200 [N] | 5.5 [bar] | from above |
| UBPS5504BS1L-LP | 4000 [N] | 4 [bar] | from above |
| UBPS5504BS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5504BS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5504FS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5504FS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5504FS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5504FS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5505AS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5505AS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5505AS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5505AS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5505BS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5505BS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5505BS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5505BS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5510AS1L | 5200 [N] | 5.5 [bar] | from above |
| UBPS5510AS1L-LP | 4000 [N] | 4 [bar] | from above |
| UBPS5510AS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5510AS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5510BS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5510BS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5510BS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5510BS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5512FS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5512FS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5512FS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5512FS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5514AS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5514AS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5514CS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5514CS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5514ES1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5514ES1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5514ES1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5514ES1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5514KS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5514KS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5514KS1LA | 5200 [N] | 5.5 [bar] | from the front |
| UBPS5514KS1LA-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS5515AS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5515AS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS5515BS1L | 5200 [N] | 5.5 [bar] | from the front |
| UBPS6501AS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS5515BS1L-LP | 4000 [N] | 4 [bar] | from the front |
| UBPS6501AS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6501AS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6501AS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6501BS1L | 7700 [N] | 5.5 [bar] | from above |
| UBPS6501BS1L-LP | 5300 [N] | 4 [bar] | from above |
| UBPS6501BS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6501BS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6501CS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6501CS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6501CS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6501CS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6501ES1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6501ES1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6501ES1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6501ES1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6501FS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6501FS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6501FS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6501FS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6501IS1L | 7700 [N] | 5.5 [bar] | from above |
| UBPS6501IS1L-LP | 5300 [N] | 4 [bar] | from above |
| UBPS6501PS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6501PS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6501PS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6501PS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6501SS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6501SS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6501SS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6501SS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6502DS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6502DS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6502DS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6502DS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6503AS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6503AS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6503AS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6503AS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6504BS1L | 7700 [N] | 5.5 [bar] | from above |
| UBPS6504BS1L-LP | 5300 [N] | 4 [bar] | from above |
| UBPS6504BS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6504BS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6504FS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6504FS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6504FS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6504FS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6505AS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6505AS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6505AS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6505AS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6505BS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6505BS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6505BS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6505BS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6510AS1L | 7700 [N] | 5.5 [bar] | from above |
| UBPS6510AS1L-LP | 5300 [N] | 4 [bar] | from above |
| UBPS6510AS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6510AS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6510BS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6510BS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6510BS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6510BS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6512FS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6512FS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6512FS1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6512FS1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6514ES1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6514ES1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6514ES1LA | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6514ES1LA-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6515AS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6515AS1L-LP | 5300 [N] | 4 [bar] | from the front |
| UBPS6515BS1L | 7700 [N] | 5.5 [bar] | from the front |
| UBPS6515BS1L-LP | 5300 [N] | 4 [bar] | from the front |
