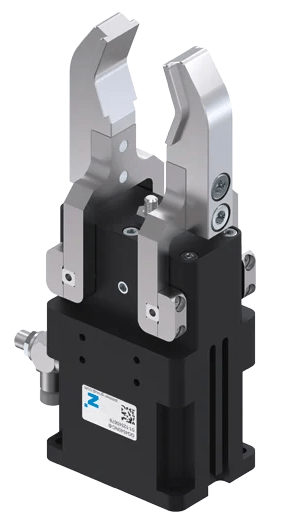

Gripper radial cu 2 falci GG4000
- Produs original Zimmer Group GmbH - Quality Made in Germany!
- Tehnologie dovedita cu peste 20 de ani de fiabilitate asigurand o productie neintreruptă
- Maximal 10 milioane de cicluri fara intretinere
- Temperatura de functionare intre +5°C si +80°C
- Senzor de camp magnetic sau senzor inductiv
- Precizie de repetitie +/- 0.05 mm
- Protectie IP64 conform IEC 60529
- Aer purificat
- Protejat impotriva coroziunii
- Mecanism de autoblocare
- Inchidere cu arc C
| Denumire produs |
Curs per falca |
Forta |
Moment minim de prindere asigurat de arc |
Cod produs |
|---|---|---|---|---|
|
|
[Grade] | [N] | [Nm] |
|
|
Gripper pneumatic radial GG4032NC-B
|
90.0 | 430.0 | 1.0 | GG4032NC-B |
|
Gripper pneumatic radial G4032SC-BG
|
20.0 | 460.0 | 1.5 | |
|
Gripper pneumatic radial GG4040NC-B
|
90.0 | 700.0 | 3.2 | GG4040NC-B |
|
Gripper pneumatic radial GG4040SC-B
|
20.0 | 800.0 | 5.2 | |
|
Gripper pneumatic radial GG4049NC-B
|
90.0 | 1000.0 | 4.3 | GG4049NC-B |
|
Gripper pneumatic radial GG4049SC-B
|
20.0 | 1150.0 | 90.0 | GG4049SC-B |
|
Gripper pneumatic radial GG4058NC-B
|
90.0 | 1650.0 | 20.0 | GG4058NC-B |
|
Gripper pneumatic radial GG4058SC-B
|
20.0 | 1900.0 | 90.0 | GG4058SC-B |
|
Gripper pneumatic radial GG4072NC-B
|
90.0 | 3500.0 | 35.0 | |
|
Gripper pneumatic radial GG4084SC-B
|
20.0 | 4000.0 | 50.0 | GG4084SC-B |
