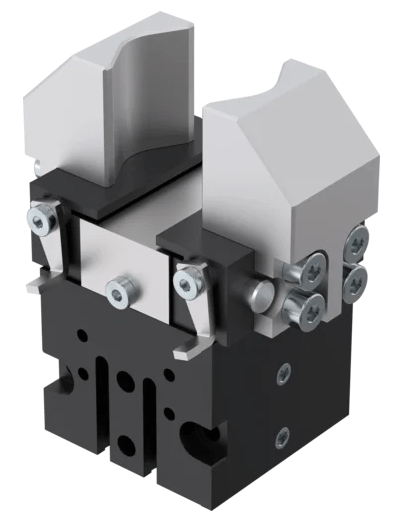

Gripper pneumatic paralel cu 2 falci GP
- Produs original Zimmer Group GmbH - Quality Made in Germany!
- Timpi de ciclu foarte scurti prin ghidajele circulare cu frecare redusa
- Maximal 10 milioane de cicluri fara intretinere
- Senzor camp magnetic sau inductiv
- Temperatura de functionare intre +5°C si 80°C
- Presiunea de lucru 6 bari
- Precizie repetitie +/- 0.05 mm
- Protectie IP30 conform EC 60529
| Cod comanda |
Cursa per falca |
Forta nominala de prindere |
Forta minima de prindere prin arc |
|---|---|---|---|
| [mm] | [N] | [N] | |
| GP12-C | 3.0 | 8.4 | -- |
| GP19-C | 4.0 | 36.0 | -- |
| GP30-D | 5.0 | 94.0 | -- |
| GP45-C | 5.0 | 118.0 | -- |
| GP45S-C | 5.0 | 190.0 | 75.0 |
| GP75-C | 10.0 | 220.0 | -- |
| GP75S-C | 10.0 | 275.0 | 63.0 |
| GP100-D | 13.0 | 520.0 | 70.0 |
| GP100-D-99 | 13.0 | 450.0 | -- |
| GP100S-D | 13.0 | 5250.0 | 250.0 |
