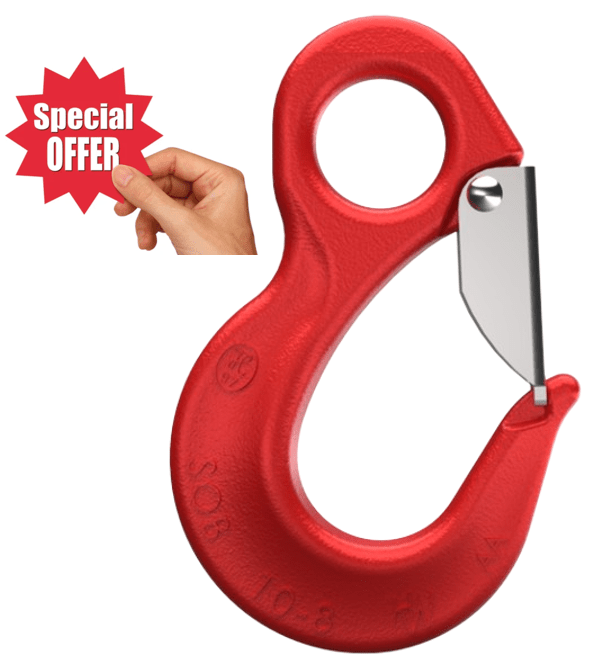

Carlig cu siguranta WALTERMANN tip SOB Grade 8 - Oferta speciala

Carlig cu siguranta tip S0B Grade 8
Semne de identificare: H97 / SOB / HW / Marimea nominala / Portanta
Culoare: rosu RAL 3000
Material calig: Otel forjat
Material siguranta: tabla otel zincata
Temperatura de exploatare: intre -40 °C si +400 °C (de la 200 °C se reduce portanta)
Certificate: EN 10204-2,2 si EN 1677-2

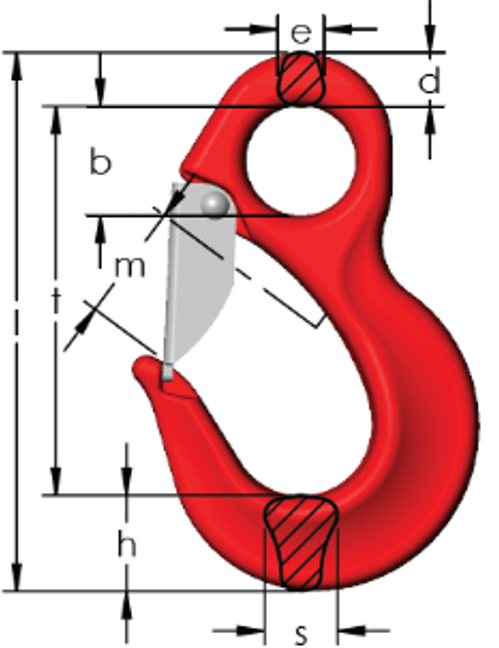

SOB DT.png

Denumire produs	Marime nominala	Portanta WLL	Marime b	Marime d	Marime e	Marime h	Marime l	Marime m	Marime s	Marime t	Greutate G	Stoc disponibil	Pret special	Cod comanda
		[kg	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]	[bucati]	[Euro/buc]
Carlig cu siguranta SOB 7-8	7-8	1500	24	12.0	8	21	120	23	16	86	0.4	10	6.50	235 130 007-OF
Carlig cu siguranta SOB 8-8	8-8	2000	28	13.0	8.5	22	129	25	17	95	0.4	11	7.00	235 130 008-OF
Carlig cu siguranta SOB 10-8	10-8	3150	33	16.3	14	29	163	34	22	118	0.9	9	10.00	235 130 010-OF
Carlig cu siguranta SOB 13-8	13-8	5300	40	19.0	18.5	35	197	38	28.5	142	1.6	8	16.50	235 130 013-OF
Carlig cu siguranta SOB 16-8	16-8	8000	53	21.5	16	43	229	44	27	165	2.3	6	28.50	235 130 016-OF
