Rola angrenata cu curea rotunda Seria SK1, WLL=50kg

Produse originale Torwegge - Quality Made in Germany!
Role cu un canal angrenat cu curea rotunda - disponibile la comanda

• Aplicatie	Sarcini usoare si medii Pentru mese si conveioare angrenate
• Material teava rola	Termoplast gri/albastru, otel, otel zincat, otel cu protectie PVC, otel protectie cauciuc, Aluminiu, INOX
• Mediu de lucru	Uscat si fara praf
• Lagar rola	TKL sau TRK
• Diametru teava rola lagar TKL	50mm, 60mm, 60.3mm, 63mm, 80mm si 88.9mm
• Diametru teava rola lagar TRK	50mm, 60mm si 80mm
• Diametru ax rola lagar TKL, TRK	10mm, SK11mm, 12mm, 14mm, 15mm si 17mm
• Distanta minima a	a = 39mm pentru teava Ø50mm a = 44mm pentru teava Ø60mm, Ø60.3mm, Ø63mm, Ø80mm si Ø88.9mm
• Portanta rola lagar TKL	50 kg/rola
• Portanta rola lagar TRK	50 kg/rola
• Viteza maxima transport	0.5 m/s
• Temperatura de functionare	-5°C pana +50°C
• Nivel zgomot	Redus
• Optiuni suplimentare la cerere	Ax rola din INOX Varianta canal pentru curea plana Varianta canal pentru curea forma V

cu rilla 1x dt1.jpg

Variante de prelucrare ax

Lager rola	Diametru teava ØRD	Diametru ax ØAD	M	IGM	FA	SW	GL
	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
TKL	50	10	EL = RL + 19	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	50	SK11	--	--	EL = RL + 7	--	--
TKL	50	12	EL = RL + 21	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	50	14	EL = RL + 23	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	50	15	--	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	50	17	EL = RL + 23	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	60	10	EL = RL + 19	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	60	SK11	--	--	EL = RL + 7	--	--
TKL	60	12	EL = RL + 21	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	60	14	EL = RL + 23	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	60	15	--	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	60	17	EL = RL + 23	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	60.3	10	EL = RL + 19	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	60.3	SK11	--	--	EL = RL + 7	--	--
TKL	60.3	12	EL = RL + 21	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	60.3	14	EL = RL + 23	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	60.3	15	--	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	60.3	17	EL = RL + 23	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	63	10	EL = RL + 19	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	63	SK11	--	--	EL = RL + 7	--	--
TKL	63	12	EL = RL + 21	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	63	14	EL = RL + 23	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	63	15	--	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	63	17	EL = RL + 23	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	80	10	EL = RL + 19	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	80	SK11	--	--	EL = RL + 7	--	--
TKL	80	12	EL = RL + 21	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	80	14	EL = RL + 23	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	80	15	--	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	80	17	EL = RL + 23	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	88.9	10	EL = RL + 19	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	88.9	SK11	--	--	EL = RL + 7	--	--
TKL	88.9	12	EL = RL + 21	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	88.9	14	EL = RL + 23	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	88.9	15	--	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKL	88.9	17	EL = RL + 23	EL = RL + 7	EL = RL + 7	EL = RL + 7	EL = RL + 7
TKR	50	10	EL = RL + 22	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKR	50	SK11	--	--	EL = RL + 10	--	--
TKR	50	12	EL = RL + 24	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKR	50	14	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKR	50	15	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKR	50	17	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKR	60	10	EL = RL + 22	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKR	60	SK11	--	--	EL = RL + 10	--	--
TKR	60	12	EL = RL + 24	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKR	60	14	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKR	60	15	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKR	60	17	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKL	80	10	EL = RL + 22	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKL	80	SK11	--	--	EL = RL + 10	--	--
TKL	80	12	EL = RL + 24	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKL	80	14	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKL	80	15	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKL	80	17	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKL	88.9	10	EL = RL + 22	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKL	88.9	SK11	--	--	EL = RL + 10	--	--
TKL	88.9	12	EL = RL + 24	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKL	88.9	14	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKL	88.9	15	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
TKL	88.9	17	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10

Variante suprafata teava

Teava rola ØRD x d	Lagar rola	Lagar rola	Diametru ax ØAD	Otel netratat ST	Otel zincat STI	Otel furtun protectie PVC STP	Otel protectie cauciuc STG	INOX N	Aluminiu Alu	Termoplast albastru KB	Termoplast gri KGH
[mm x mm]			[mm]
50 x 1.5	TKL	TRK	10, SK11,12, 14, 15, 17	x	x	x	x	x	x
50 x 2.0	TKL	TRK	10, SK11,12, 14, 15, 17	x	x	x	x	x	x
50 x 2.8	TKL	--	10, SK11,12, 14, 15, 17							x	x
60 x 2.0	TKL	TRK	10, SK11,12, 14, 15, 17	x	x	x	x
60.3 x 1.65	TKL	--	10, SK11,12, 14, 15, 17	x	x		x	x
63 x 3.0	TKL	--	10, SK11,12, 14, 15, 17							x	x
80 x 2.0	TKL	TRK	10, SK11,12, 14, 15, 17	x	x		x	x
88.9 x 7.0	TKL	--	10, SK11,12, 14, 15, 17	x	x	x	x	x

Date tehnice canal de angrenare

Teava rola ØRD x d	Lagar rola	Lagar rola	Diametru ax ØAD	Curea raza R	Distanta minima a	Diametru canal ØSD
[mm x mm]			[mm]	[mm]	[mm]	[mm]
50 x 1.5	TKL	TRK	10, SK11,12, 14, 15, 17	5	39	40
50 x 2.0	TKL	TRK	10, SK11,12, 14, 15, 17	6	39	38
50 x 2.8	TKL	--	10, SK11,12, 14, 15, 17	5	39	40
60 x 2.0	TKL	TRK	10, SK11,12, 14, 15, 17	6	44	48
60.3 x 1.65	TKL	--	10, SK11,12, 14, 15, 17	6	44	48
63 x 3.0	TKL	--	10, SK11,12, 14, 15, 17	5	44	53
80 x 2.0	TKL	TRK	10, SK11,12, 14, 15, 17	8	44	64
88.9 x 7.0	TKL	--	10, SK11,12, 14, 15, 17	8	44	73

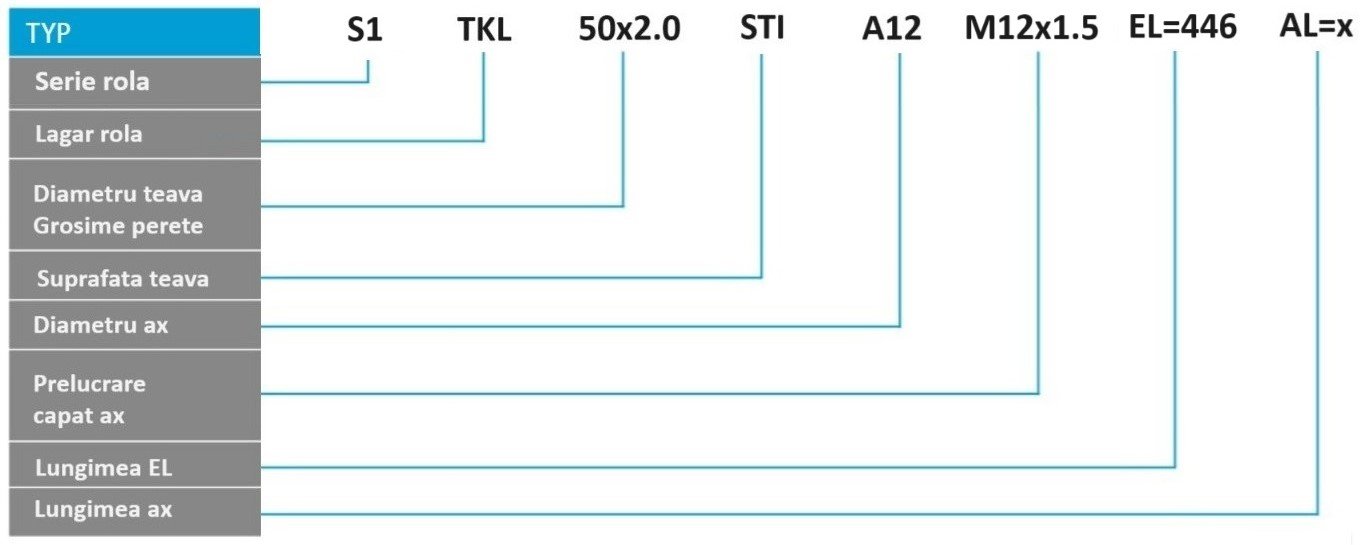

Exemplu comanda

Rola angrenata cu curea rotunda Seria SK1, WLL=50kg
