Rola angrenata cu roata dintata 1K portanta 100kg
- Produse originale Torwegge - Quality Made in Germany!
- Role angrenate de transport cu roata dintata simpla la comanda
| • Aplicatie | Sarcini mici si usoare mese sau conveioare angrenate |

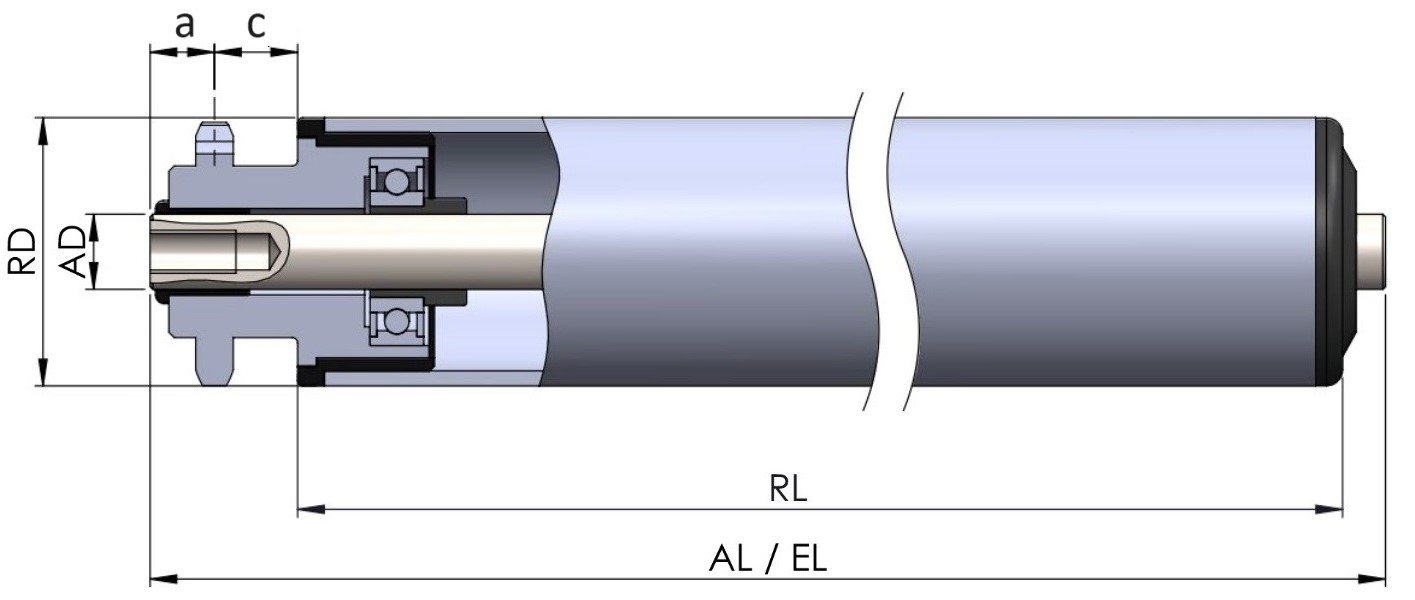

| • Roti dntate standardn otel/plastic | 1/2" x 5/16" cu 11 dinti; a = 12mm, c = 15.5mm 1/2" x 5/16" cu 14 dinti; a = 12mm, c = 18.0mm |
| • Mediu de lucru TRK | Ucat si cu praf |
| • Mediu de lucru TKL | Uscat cu praf si murdar |
| • Material teava rola | Termoplast gri/albastru, otel, otel zincat, Al, INOX, otel cu furtun PVC |
| • Lagar rola | TKL sau TRK |
| • Variante prindere lagar | fix, sudat sau prin frecare |
| • Diametru teava rola lagar TKL | 50mm, 60mm, 60.3mm, 63mm, 80mm si 90mm |
| • Diametru teava rola lagar TRK | 50mm, 60mm si 80mm |
| • Diametru ax rola lagar TKL, TRK | 10mm, 12mm si 14mm |
| • Portanta lagar roata dintata plastic | 40 kg/rola |
| • Portanta lagar roata dintata otel | 100 kg/rola |
| • Viteza maxima transport | 0.5 m/s |
| • Temperatura de functionare | -5°C pana +50°C |
| • Nivel zgomot | Redus |
| • Optiuni suplimentare la cerere | Ax rola din INOX |
- Variante de prelucrare ax
Lager
rola
Diametru
teava
ØRD
Diametru
ax
ØAD
M
AM
IGM[mm] [mm] [mm] [mm] [mm] TKL 50 10 EL = RL + 45 EL = RL + 33 EL = RL + 33 TKL 50 12 EL = RL + 47 EL = RL + 33 EL = RL + 33 TKL 50 14 EL = RL + 49 EL = RL +33 EL = RL + 33 TKL 60 10 EL = RL + 45 EL = RL + 33 EL = RL + 33 TKL 60 12 EL = RL + 47 EL = RL + 33 EL = RL + 33 TKL 60 14 EL = RL + 49 EL = RL +33 EL = RL + 33 TKL 60.3 10 EL = RL + 45 EL = RL + 33 EL = RL + 33 TKL 60.3 12 EL = RL + 47 EL = RL + 33 EL = RL + 33 TKL 60.3 14 EL = RL + 49 EL = RL +33 EL = RL + 33 TKL 63 10 EL = RL + 45 EL = RL + 33 EL = RL + 33 TKL 63 12 EL = RL + 47 EL = RL + 33 EL = RL + 33 TKL 63 14 EL = RL + 49 EL = RL +33 EL = RL + 33 TKL 80 10 EL = RL + 45 EL = RL + 33 EL = RL + 33 TKL 80 12 EL = RL + 47 EL = RL + 33 EL = RL + 33 TKL 80 14 EL = RL + 49 EL = RL +33 EL = RL + 33 TKL 90 10 EL = RL + 45 EL = RL + 33 EL = RL + 33 TKL 90 12 EL = RL + 47 EL = RL + 33 EL = RL + 33 TKL 90 14 EL = RL + 49 EL = RL +33 EL = RL + 33 TKR 50 10 EL = RL + 47 EL = RL + 35 EL = RL + 35 TKR 50 12 EL = RL + 49 EL = RL + 35 EL = RL + 35 TKR 50 14 EL = RL + 451 EL = RL +35 EL = RL + 35 TKR 60 10 EL = RL + 47 EL = RL + 35 EL = RL + 35 TKR 60 12 EL = RL + 49 EL = RL + 35 EL = RL + 35 TKR 60 14 EL = RL + 451 EL = RL +35 EL = RL + 35 TKR 80 10 EL = RL + 47 EL = RL + 35 EL = RL + 35 TKR 80 12 EL = RL + 49 EL = RL + 35 EL = RL + 35 TKR 80 14 EL = RL + 451 EL = RL +35 EL = RL + 35 - Variante suprafata teava
Teava
rola
ØRD x dLagar
rolaLagar
rola
Diametru
ax
ØADOtel
netratat
STOtel
zincat
STIOtel furtun
protectie PVC
STPOtel protectie
cauciuc
STGINOX
NAluminiu
AluTermoplast
albastru
KBTermoplast
gri
KGH[mm x mm] [mm] 50 x 1.5 TKL TRK 10, 12, 14 x x x x x x 50 x 2.0 TKL TRK 10, 12, 14 x x x x x 50 x 2.8 TKL 10, 12, 14 x x 60 x 2.0 TKL TRK 10, 12, 14 x x x x 60.3 x 1.65 TKL 10, 12, 14 x x x x 63 x 3.0 TKL 10, 12, 14 x x 80 x 2.0 TKL TRK 10, 12, 14 x x x x 90 x 7.0 TKL 10, 12, 14 x x
- Variante roti dintate
Material
rota dintataNumar dinti
roataAngrenare
fixaAngrenare
sudataAngrenare
frictiuneNumar
comandaMaterial plastic 11 x x 1K-KU-1/2-Z11- Material plastic 14 x x 1K-KU-1/2-Z14- Otel 11 x x x 1K-ST1/2-Z11- Otel 14 x x x 1K-ST-1/2-Z14-

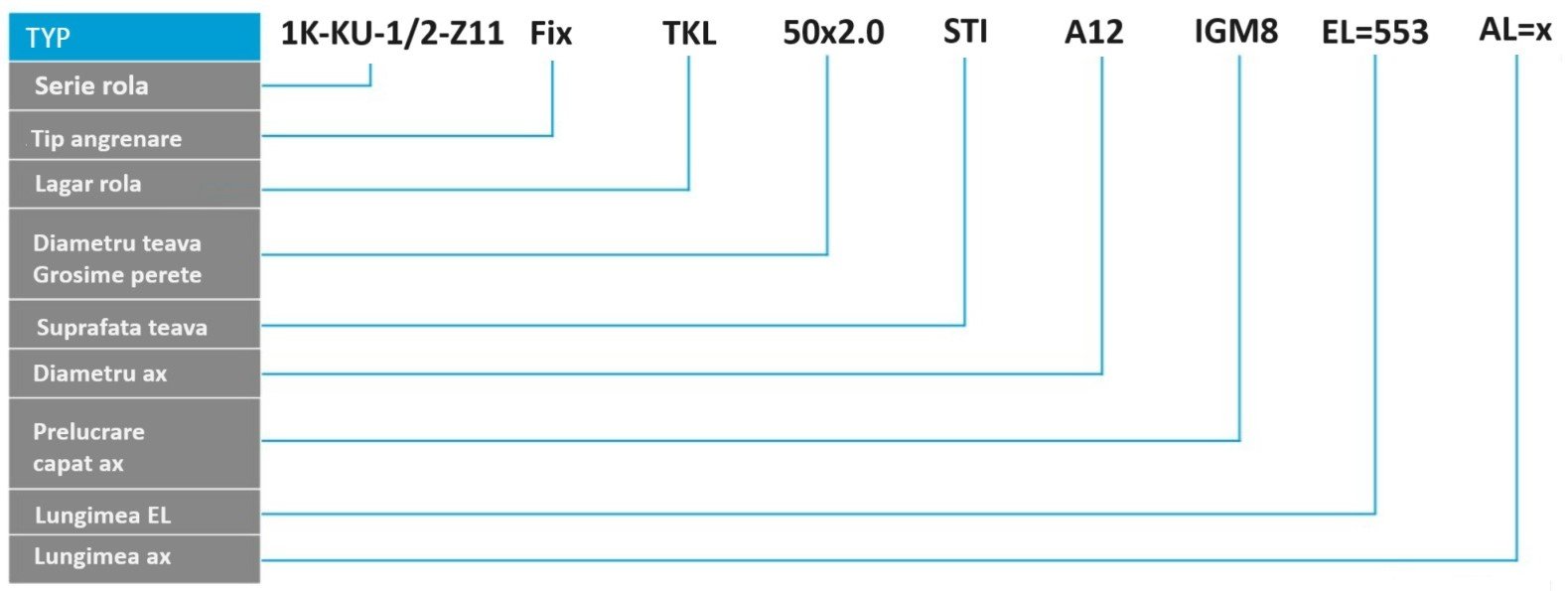

- Exemplu comanda
