Rola gravitationala KUT100 si KUT100N portanta 30kg
- Produse originale Torwegge - Quality Made in Germany!
- Role gravitationale de transport - disponibile la comanda
| • Aplicatie |
Sarcini mici pana la 30 kg |
| • Mediu de lucru KUT100 |
Uscat si fara praf |
| • Mediu de lucru KUT100N |
Umed si fara praf |
| • Material teava rola |
Termoplast gri/albastru, otel, otel zincat, Al, INOX, otel cu furtun protectie PVC, otel cauciuc |
| • Lagar KUT100 |
Capac din termoplast cu rulment cu bile din otel |
| • Lagar KUT100N |
Capac din termoplast cu rulment cu bile din otel inoxidabil |
| • Diametrul exterior / Portanta |
50 mm / 30 kg |
| • Diametrul exterior / Portanta |
60 mm / 30kg |
| • Diametrul exterior / Portanta |
63 mm / 30 kg |
| • Viteza maxima transport |
0.3 m/s |
| • Temperatura de functionare |
-5°C pana la +40°C |
| • Nivel zgomot |
Redus |
| • Optiuni suplimentare la cerere |
Ax din INOX |

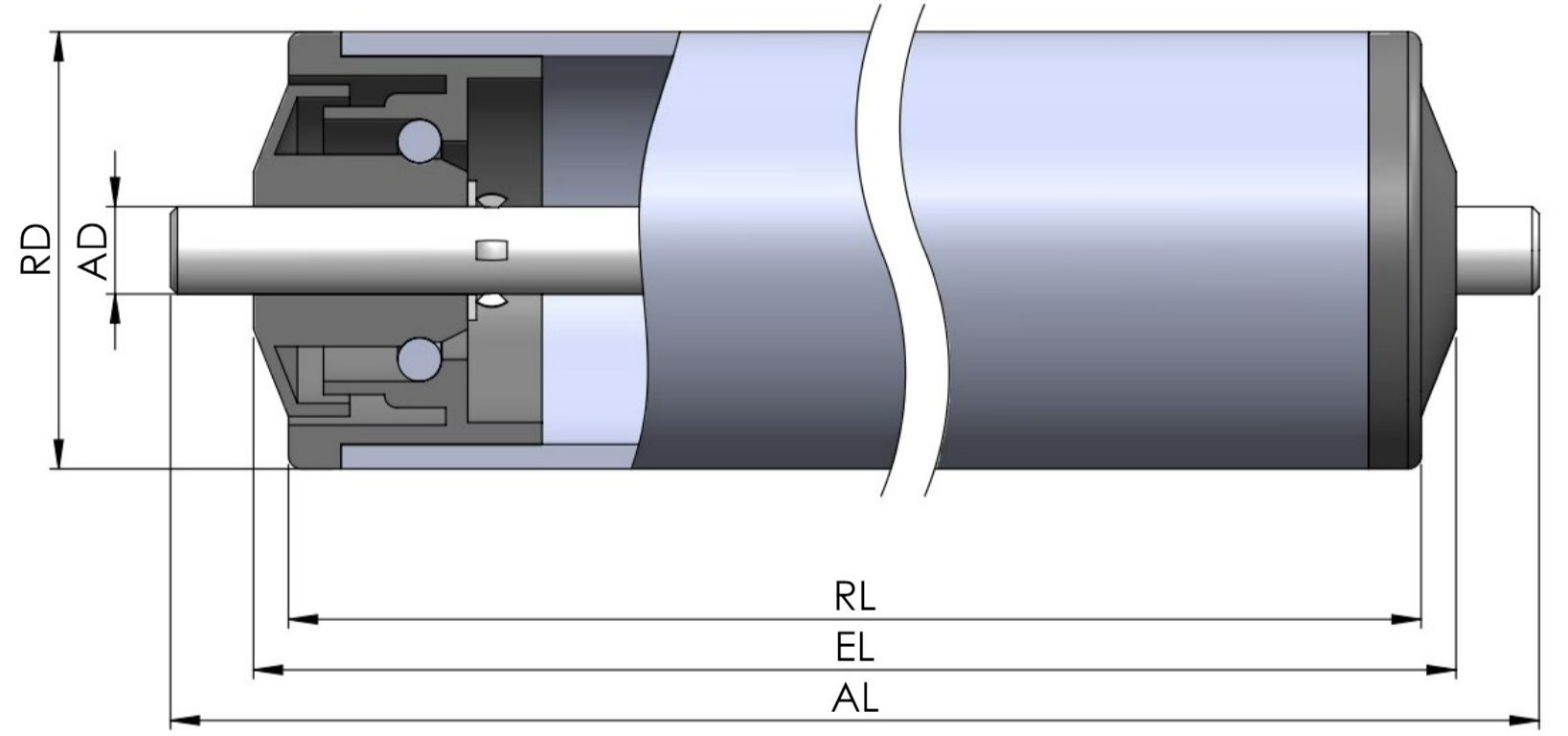

- Variante de prelucrare ax
Diametru
teava
ØRD
|
Diametru
ax
ØAD
|
Portanta
rola
WLL |
M |
FA |
IGM |
SW |
GL |
| [mm] |
[mm] |
[kg] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
| 50 |
8 |
30 |
EL = RL + 20 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
| 50 |
10 |
30 |
EL = RL + 19 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
| 50 |
12 |
30 |
EL = RL + 21 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
| 60 |
8 |
30 |
EL = RL + 20 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
| 60 |
10 |
30 |
EL = RL + 19 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
| 60 |
12 |
30 |
EL = RL + 21 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
| 60.3 |
8 |
30 |
EL = RL + 20 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
| 60.3 |
10 |
30 |
EL = RL + 19 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
| 60.3 |
12 |
30 |
EL = RL + 21 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
| 63 |
8 |
30 |
EL = RL + 20 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
| 63 |
10 |
30 |
EL = RL + 19 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
| 63 |
12 |
30 |
EL = RL + 21 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
EL = RL + 7 |
- Variante suprafata teava
Teava
rola
ØRD x d |
Otel
netratat
ST |
Otel
zincat
STI |
Otel furtun
protectie PVC
STP |
Otel
inoxidabil
N |
Plastomer
albastru
KB |
Plastomer
gri
KGH |
Aluminiu
Alu |
Otel
cauciucat
STG |
| [mm x mm] |
|
|
|
|
|
|
|
|
| 50 x 1.5 |
x |
x |
x |
x |
|
|
x |
x |
| 50 x 2.8 |
|
|
|
|
x |
x |
|
|
| 60 x 2.0 |
x |
x |
x |
|
|
|
|
|
| 60.3 x 1.65 |
|
|
|
x |
|
|
|
|
| 63 x 3.0 |
|
|
|
|
x |
x |
|
|
