Rola gravitationala KUT50 si KUT50N portanta 14kg

Produse originale Torwegge - Quality Made in Germany!
Role gravitationale de transport - disponibile la comanda

• Aplicatie	Sarcini mici si usoare
• Mediu de lucru KUT50	Uscat si fara praf
• Mediu de lucru KUT50N	Umed si fara praf
• Material teava rola	Termoplast gri/albastru, otel, otel zincat, Al, INOX, otel cu furtun protectie PVC
• Lagar KUT50	Capac din termoplast cu rulment cu bile din otel
• Lagar KUT50N	Capat din termoplast cu rulment cu bile otel inoxidabil
• Diametrul exterior / Portanta	16 mm / 6 kg
• Diametrul exterior / Portanta	20 mm / 10 kg
• Diametrul exterior / Portanta	30 mm / 14 kg
• Diametrul exterior / Portanta	40 mm / 14 kg
• Viteza maxima transport	0.3 m/s
• Temperatura de functionare	-5°C pana la +50°C
• Nivel zgomot	Redus
• Optiuni suplimentare la cerere	Ax rola din INOX

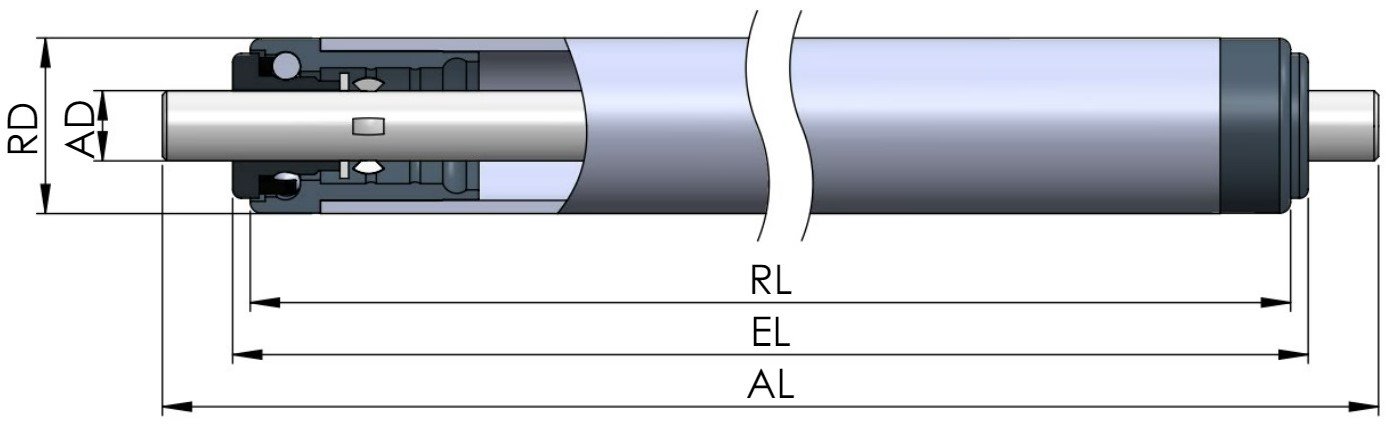

KUT50 DT.jpg

Variante prelucrare ax

Diametru teava ØRD	Diametru ax ØAD	Portanta rola WLL	M	FA	IGM	GL
[mm]	[mm]	[kg]	[mm]	[mm]	[mm]	[mm]
16	5	6	--	EL = RL + 3	--	EL = RL + 3
16	6	6	EL = RL + 13	EL = RL + 3	--	EL = RL + 3
20	6	10	EL = RL + 15	EL = RL + 5	EL = RL + 5	EL = RL + 5
20	8	10	EL = RL + 15	EL = RL + 5	EL = RL + 5	EL = RL + 5
30	6	14	EL = RL + 15	EL = RL + 5	EL = RL + 5	EL = RL + 5
30	8	14	EL = RL + 15	EL = RL + 5	EL = RL + 5	EL = RL + 5
30	10	14	EL = RL + 15	EL = RL + 5	EL = RL + 5	EL = RL + 5
40	8	14	EL = RL + 15	EL = RL + 5	EL = RL + 5	EL = RL + 5
40	10	14	EL = RL + 15	EL = RL + 5	EL = RL + 5	EL = RL + 5

Variante suprafata teava

Teava rola ØRD x d	Otel netratat ST	Otel zincat STI	Otel furtun protectie PVC STP	Otel inoxidabil N	Plastomer albastru KB	Plastomer gri KGH	Aluminiu Alu
[mm x mm]
16 x 1.0	x	x	--	x
20 x 1.5	x	x	--	x	x	x	x
30 x 1.0	x	x	x	x
30 x 1.5	x	x	x
30 x 1.8					x	x
40 x 1.5	x	x	x	x
40 x 2.3					x	x

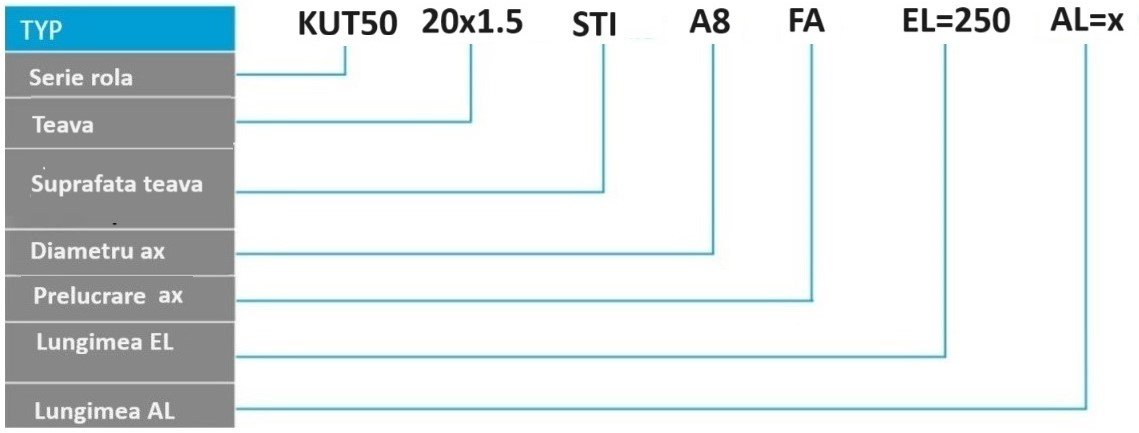

Exemplu comanda

KUT50 TAB.jpg
