Rola gravitationala TGF portanta 500kg

Produse originale Torwegge - Quality Made in Germany!
Role gravitationale de transport - disponibile la comanda

• Aplicatie	Sarcini grele pana 500 kg Mese gravitationale sarcini grele
• Mediu de lucru TGF	Medii umede, cu praf sau murdare
• Material teava rola	Otel, otel zincat, otel cu furtun PVC, INOX
• Lagar rola TGF	Capac ambutisat din otel sudat de rola
• Rulment lagar rola TGF	Rulment de precizie cu bile din otel
• Etansare lagar	Etansare multipla tip labrirint
• Ungere lagar	Ungere pe termen lung cu grasime pe baza de litiu
• Diametre exterioare	51mm, 63.5mm, 80mm, 88.9mm, 108mm, 133mm si 159mm
• Diametru ax	20mm, 25mm si 30mm
• Portanta rola TGF	500 kg
• Temperatura de functionare	-5°C pana la +80°C
• Optiuni suplimentare la cerere	Axul, rulmentul si teava din INOX in combinatie lagar TKLN Inele de ghidare sudate Variante cu inele de protectie si de tampon Spatii frigorifice Zone cu temperaturi inalte

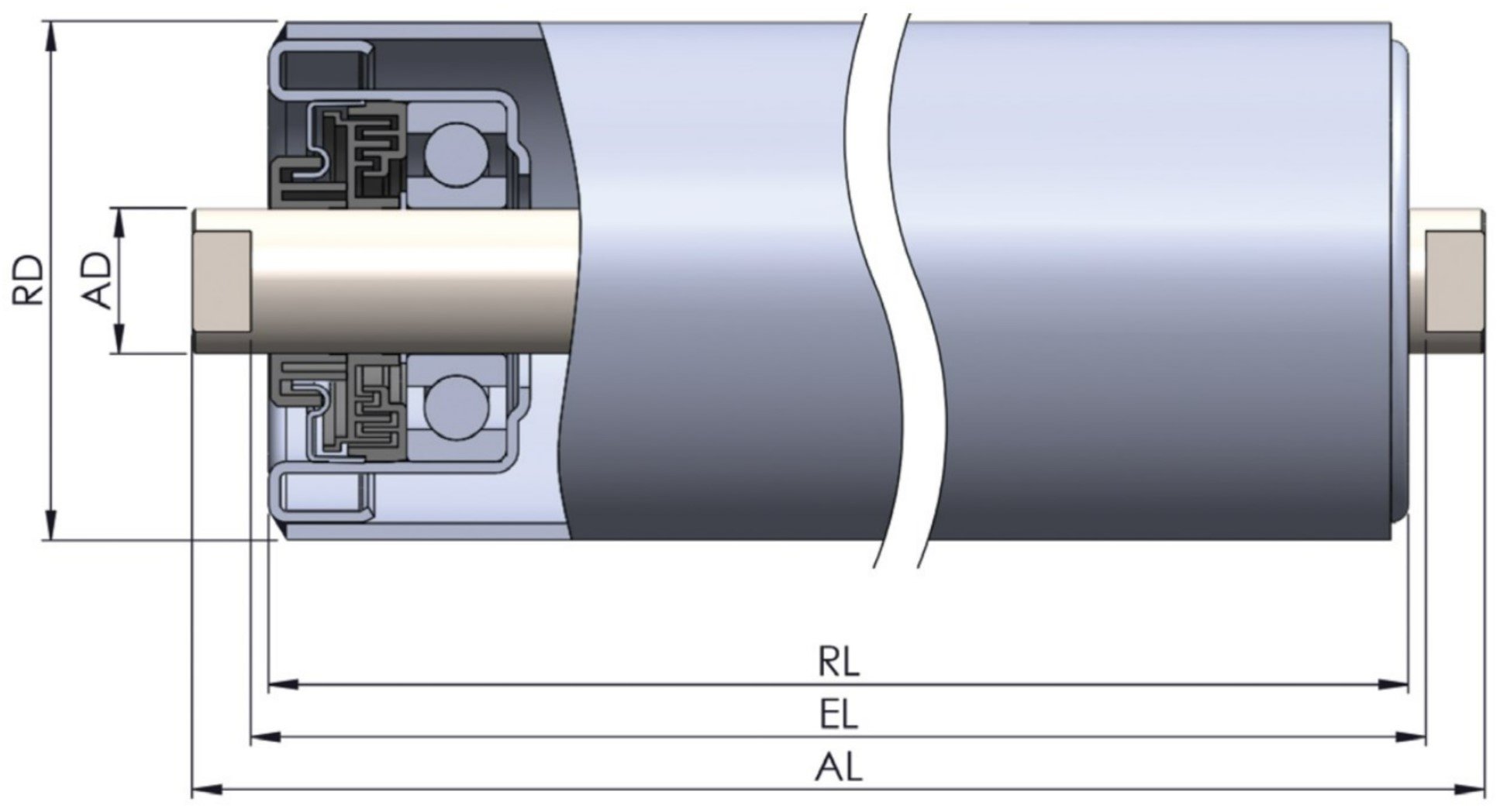

TGF DT.jpg `

Variante de prelucrare ax

Diametru teava ØRD	Diametru ax ØAD	Portanta rola WLL	M	AM	IGM	SW
[mm]	[mm]	[kg]	[mm]	[mm]	[mm]	[mm]
51	20	500	EL = RL + 24	EL = RL + 6	EL = RL + 6	EL = RL + 6
63.5	20	500	EL = RL + 24	EL = RL + 6	EL = RL + 6	EL = RL + 6
80	20	500	EL = RL + 24	EL = RL + 6	EL = RL + 6	EL = RL + 6
88.9	20	500	EL = RL + 24	EL = RL + 6	EL = RL + 6	EL = RL + 6
88.9	25	500	EL = RL + 26	EL = RL + 6	EL = RL + 6	EL = RL + 6
88.9	30	500	EL = RL + 26	EL = RL + 6	EL = RL + 6	EL = RL + 6
108	20	500	EL = RL + 26	EL = RL + 6	EL = RL + 6	EL = RL + 6
108	25	500	EL = RL + 26	EL = RL + 6	EL = RL + 6	EL = RL + 6
108	30	500	EL = RL + 26	EL = RL + 6	EL = RL + 6	EL = RL + 6
133	20	500	EL = RL + 26	EL = RL + 6	EL = RL + 6	EL = RL + 6
133	25	500	EL = RL + 26	EL = RL + 6	EL = RL + 6	EL = RL + 6
133	30	500	EL = RL + 26	EL = RL + 6	EL = RL + 6	EL = RL + 6
159	20	500	EL = RL + 26	EL = RL + 6	EL = RL + 6	EL = RL + 6
159	25	500	EL = RL + 26	EL = RL + 6	EL = RL + 6	EL = RL + 6
159	30	500	EL = RL + 26	EL = RL + 6	EL = RL + 6	EL = RL + 6

Variante suprafata teava

Teava rola ØRD x d	Diametru ax ØAD	Otel netratat ST	Otel zincat STI	Otel furtun protectie PVC STP	Otel vopsit STL
[mm x mm]	[mm]
51 x 2.9	20	x	x	--	x
63.5 x 2.9	20	x	x	--	x
80 x 2.0	20	x	x	x	x
88.9 x 3.6	20, 25, 30	x	x	x	x
108 x 3.6	20, 25, 30	x	x	--	x
133 x 3.6	20, 25, 30	x	x	--	x
159 x 4.5	20, 25, 30	x	x	--	x

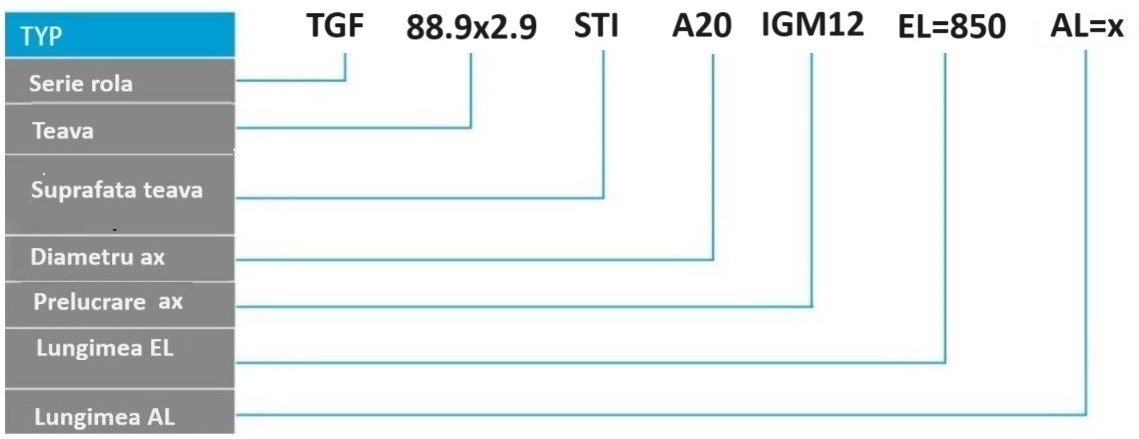

Exemplu comanda
