Rola gravitationala TRG portanta 160kg

Produse originale Torwegge - Quality Made in Germany!
Role gravitationale de transport la comanda

• Aplicatie	Sarcini medii si semigrele pana 160 kg Mese gravitationale
• Mediu de lucru TRG	Medii uscate si fara praf Spatii inchise
• Material teava rola	Otel, otel zincat, otel cu furtun protectie PVC, INOX
• Lagar rola TRG	Capac rola din otel zincat cu rulment cu role conice cu bila din otel
• Diametre exterioare rola	30mm, 40mm, 50mm, 60mm si 80mm
• Diametre ax rola	8mm, 10mm, SK11mm si 12mm
• Viteza maxima transport	0.6 m/s
• Portanta rola Ø30mm	60 kg
• Portanta role 40mm - 80mm	160 kg
• Temperatura de functionare	-5°C pana la +80°C
• Nivel zgomot	Redus
• Optiuni suplimentare la cerere	Axul, rulmentul si teava din INOX cu lagar tip TKLN Varianta ESD Inele de ghidare sudate

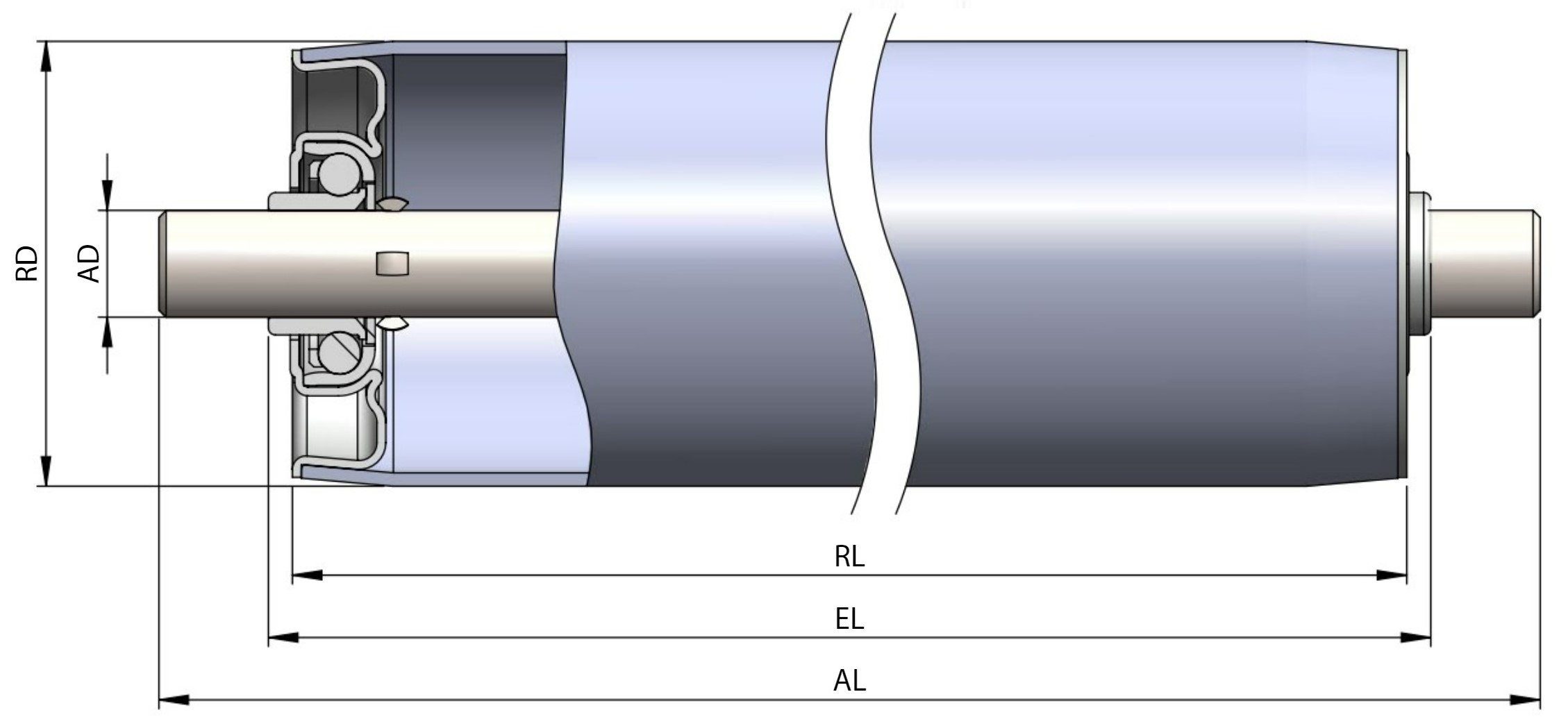

TRG DT.jpg

Variante de prelucrare ax

Diametru teava ØRD	Diametru ax ØAD	Portanta rola WLL	M	FA	IGM	SW	GL
[mm]	[mm]	[kg]	[mm]	[mm]	[mm]	[mm]	[mm]
30	8	60	EL = RL + 19	EL = RL + 6	EL = RL + 6	EL = RL + 6	EL = RL + 6
30	10	60	EL = RL + 18	EL = RL + 6	EL = RL + 6	EL = RL + 6	EL = RL + 6
40	8	160	EL = RL + 19	EL = RL + 6	EL = RL + 6	EL = RL + 6	EL = RL + 6
40	10	160	EL = RL + 18	EL = RL + 6	EL = RL + 6	EL = RL + 6	EL = RL + 6
40	SK11	160	----	EL = RL + 6	----	----	----
40	12	160	EL = RL + 20	EL = RL + 6	EL = RL + 6	EL = RL + 6	EL = RL + 6
50	8	160	EL = RL + 19	EL = RL + 6	EL = RL + 6	EL = RL + 6	EL = RL + 6
50	10	160	EL = RL + 18	EL = RL + 6	EL = RL + 6	EL = RL + 6	EL = RL + 6
50	SK11	160	----	EL = RL + 6	----	----	----
50	12	160	EL = RL + 20	EL = RL + 6	EL = RL + 6	EL = RL + 6	EL = RL + 6
60	8	160	EL = RL + 19	EL = RL + 6	EL = RL + 6	EL = RL + 6	EL = RL + 6
60	10	160	EL = RL + 18	EL = RL + 6	EL = RL + 6	EL = RL + 6	EL = RL + 6
60	SK11	160	----	EL = RL + 6	----	----	----
60	12	160	EL = RL + 20	EL = RL + 6	EL = RL + 6	EL = RL + 6	EL = RL + 6
80	10	160	EL = RL + 20	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
80	SK11	160	----	EL = RL + 10	----	----	----
80	12	160	EL = RL + 20	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10

Variante suprafata teava

Teava rola ØRD x d	Diametru ax ØAD	Otel netratat ST	Otel zincat STI	Otel furtun protectie PVC STP	INOX N
[mm x mm]	[mm]
30 x 1.5	8, 10	x	x	x
40 x 1.5	8, 10, SK11, 12	x	x	x	x
50 x 1.5	8, 10, SK11, 12	x	x	x	x
50 x 2.0	8, 10, SK11, 12	x	x	x	x
60 x 2.0	8, 10, SK11, 12	x	x	x	x
80 x 2.0	8, 10, SK11, 12	x	x	x	x

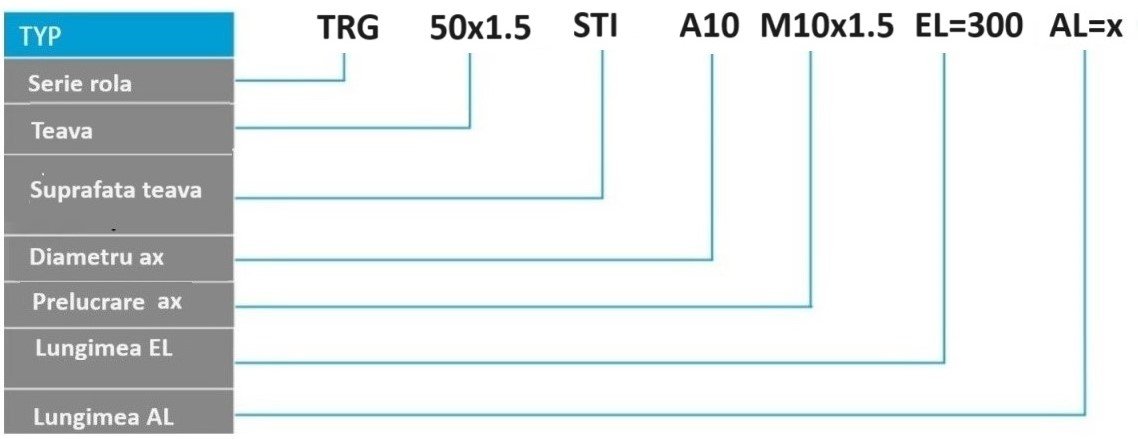

Exemplu comanda
