Rola gravitationala TRK portanta 240kg

Produse originale Torwegge - Quality Made in Germany!
Role gravitationale de transport - disponibile la comanda

• Aplicatie	Sarcini medii si grele pana 240 kg Mese gravitationale sau angrenate
• Mediu de lucru TRK	Medii uscate si fara praf
• Material teava rola	Otel, otel zincat, otel cu furtun protectie PVC, INOX
• Lagar rola TRK	Capac rola din otel zincat cu rulment de precizie cu bile din otel
• Diametre exterioare	40mm, 50mm, 60mm, 63mm si 80mm
• Diametru ax	10mm, SK11mm, 12mm, 14mm, 15mm si 17mm
• Viteza maxima transport	1.2 m/s
• Portanta rola TRK ∅40mm	160 kg
• Portanta rola TRK intre ∅50 si 80mm	240 kg
• Temperatura de functionare	-5°C pana +60°C
• Nivel zgomot	Redus
• Optiuni suplimentare la cerere	Axul, rulmentul si teava din INOX in combinatie lagar TKLN Varianta ESD Rulment RS/ZZ pentru medii cu praf Inele de ghidare sudate Spatii frigorifice Zone cu temperaturi inalte

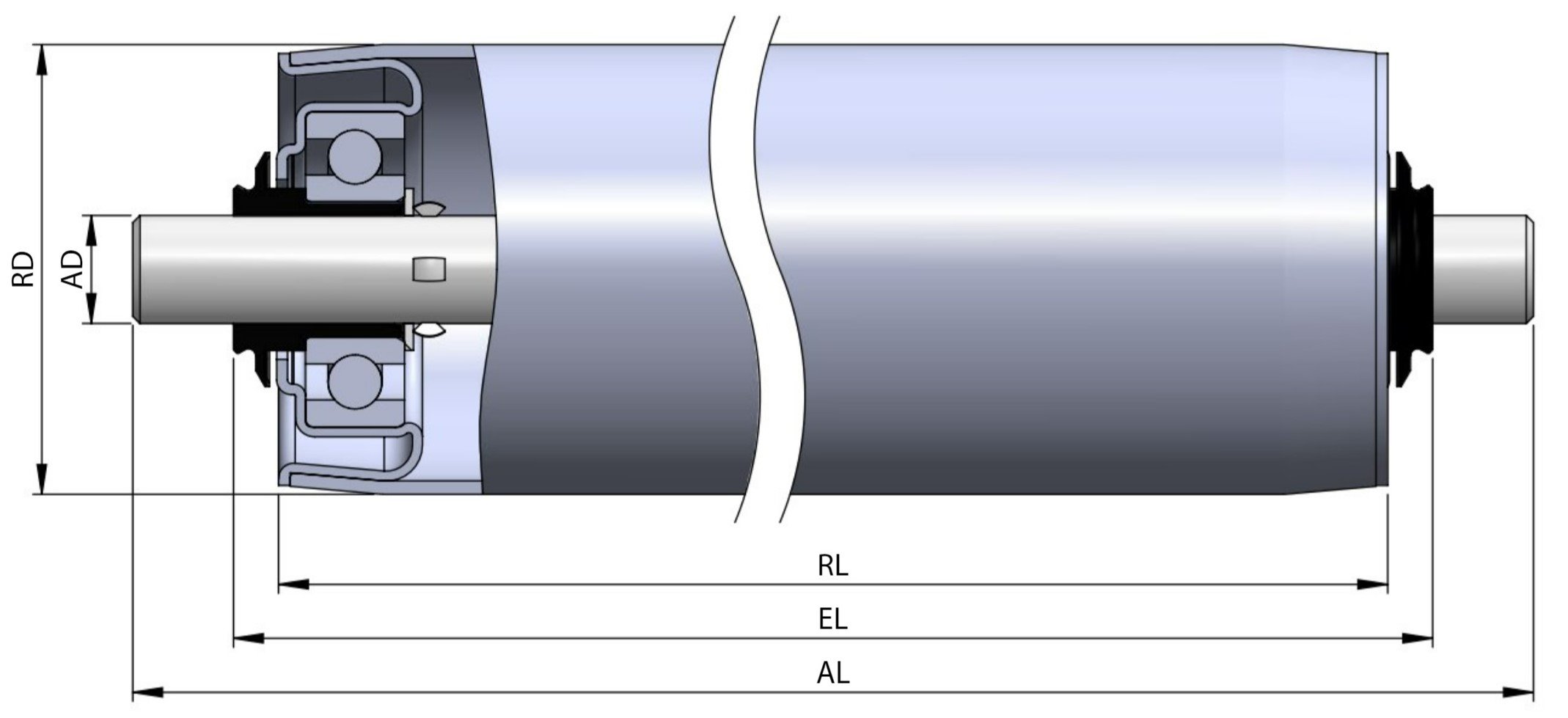

TRK DT.jpg

Variante de prelucrare ax

Diametru teava ØRD	Diametru ax ØAD	Portanta rola WLL	M	FA	IGM	SW	GL
[mm]	[mm]	[kg]	[mm]	[mm]	[mm]	[mm]	[mm]
40	12	160	EL = RL + 24	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
50	10	240	EL = RL + 22	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
50	SK11	240	---	EL = RL + 10	---	---	---
50	12	240	EL = RL + 24	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
50	14	240	EL = RL + 26	----	EL = RL + 10	EL = RL + 10	EL = RL + 10
50	15	240	EL = RL + 26	----	EL = RL + 10	EL = RL + 10	EL = RL + 10
50	16	240	EL = RL + 26	----	EL = RL + 10	EL = RL + 10	EL = RL + 10
60	10	240	EL = RL + 22	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
60	SK11	240	---	EL = RL + 10	---	---	---
60	12	240	EL = RL + 24	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
60	14	240	EL = RL + 26	----	EL = RL + 10	EL = RL + 10	EL = RL + 10
60	15	240	EL = RL + 26	----	EL = RL + 10	EL = RL + 10	EL = RL + 10
60	16	240	EL = RL + 26	----	EL = RL + 10	EL = RL + 10	EL = RL + 10
80	10	240	EL = RL + 22	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
80	SK11	240	---	EL = RL + 10	---	---	---
80	12	240	EL = RL + 24	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
80	14	240	EL = RL + 26	----	EL = RL + 10	EL = RL + 10	EL = RL + 10
80	15	240	EL = RL + 26	----	EL = RL + 10	EL = RL + 10	EL = RL + 10
80	16	240	EL = RL + 26	----	EL = RL + 10	EL = RL + 10	EL = RL + 10

Variante suprafata teava

Teava rola ØRD x d	Diametru ax ØAD	Otel netratat ST	Otel zincat STI	Otel furtun protectie PVC STP	INOX N
[mm x mm]	[mm]
40 x 1.5	12	x	x	x	x
50 x 1.5	10, SK11, 12, 14, 15, 17	x	x	x	x
50 x 2.0	10, SK11, 12, 14, 15, 17	x	x	x	x
60 x 2.0	10, SK11, 12, 14, 15, 17	x	x	x
80 x 2.0	10, SK11, 12, 14, 15, 17	x	x	x	x

Exemplu comanda
