Rola gravitationala TRKS portanta 400kg

Produse originale Torwegge - Quality Made in Germany!
Role gravitationale de transport - disponibile la comanda

• Aplicatie	Sarcini grele pana 400 kg Mese gravitationale sau angrenate
• Mediu de lucru TRKS	Medii uscate si fara praf
• Material teava rola	Otel, otel zincat, otel cu furtun protectie PVC, INOX
• Lagar rola TRKS	Capac rola din otel zincat cu rulment de precizie cu bile din otel
• Diametre exterioare	40mm, 50mm, 60mm, 63mm si 80mm
• Diametru ax	17mm, 20mm si 25mm
• Viteza maxima transport	1.2 m/s
• Portanta rola TRKS ∅63.5mm	300 kg
• Portanta rola TRKS intre ∅80 si 108mm	400 kg
• Temperatura de functionare	-5°C pana la +80°C
• Nivel zgomot	Redus
• Optiuni suplimentare la cerere	Axul, rulmentul si teava din INOX in combinatie lagar TKLN Varianta ESD Rulment RS/ZZ pentru medii cu praf Inele de ghidare sudate Spatii frigorifice Zone cu temperaturi inalte

TKRS DT.jpg

Variante de prelucrare ax

Diametru teava ØRD	Diametru ax ØAD	Portanta rola WLL	M	AM	IGM	SW	GL
[mm]	[mm]	[kg]	[mm]	[mm]	[mm]	[mm]	[mm]
63.5	17	300	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
63.5	20	400	EL = RL + 28	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
80	17	400	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
80	20	400	EL = RL + 28	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
80	26	400	EL = RL + 30	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
88.9	17	400	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
88.9	20	400	EL = RL + 28	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
88.9	26	400	EL = RL + 30	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
108	17	400	EL = RL + 26	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
108	20	400	EL = RL + 28	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10
108	26	400	EL = RL + 30	EL = RL + 10	EL = RL + 10	EL = RL + 10	EL = RL + 10

Variante suprafata teava

Teava rola ØRD x d	Diametru ax ØAD	Otel netratat ST	Otel zincat STI	Otel furtun protectie PVC STP	INOX N
[mm x mm]	[mm]
63.5 X 2.9	17, 20	x	x
80 X 2.0	17, 20 , 25	x	x	x	x
88.9 X 2.9	17, 20 , 25	x	x	x	x
108 X 3.6	17, 20 , 25	x	x

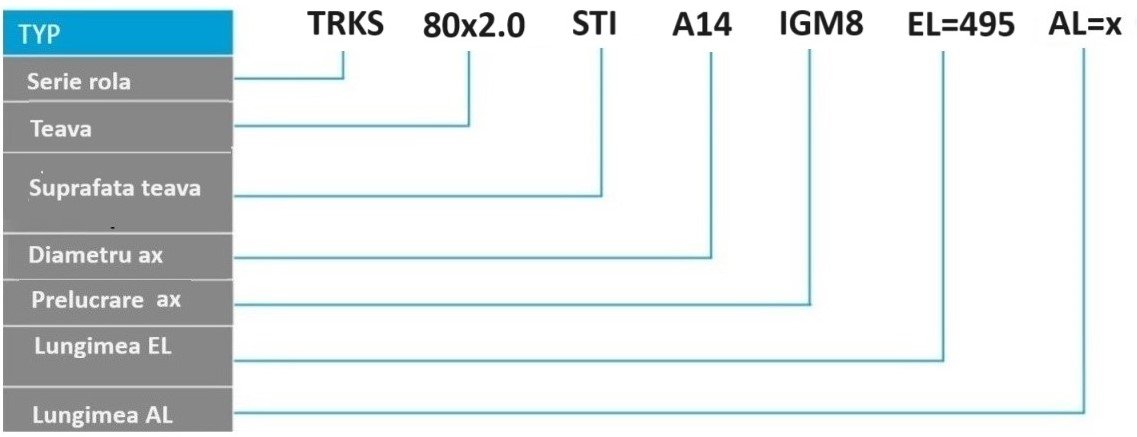

Exemplu comanda
