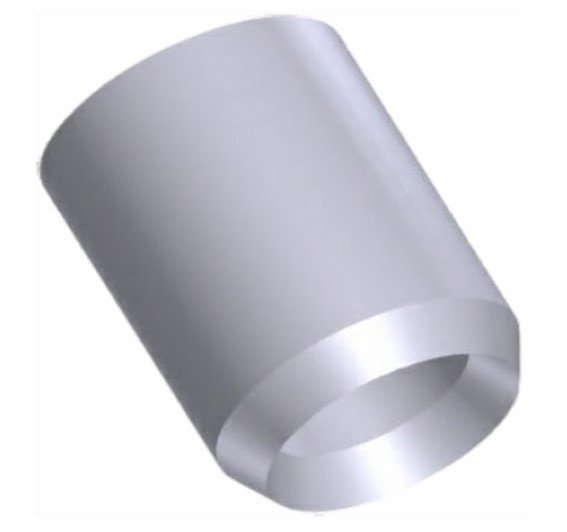

Ventuza plana D=1.0-1.5mm seria Master VAC

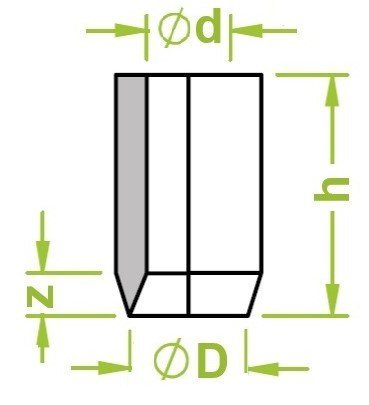

| Diametrul exterior ∅D |
Diametrul interior ∅d |
Inaltimea totala h |
Cursa ventuza z |
Portanta ventuza WLL |
Filet exterior racord |
Cod comanda racord |
Material ventuza |
Cod comanda ventuza |
| [mm] | [mm] | [mm] | [mm] | []g] | [metric] | |||

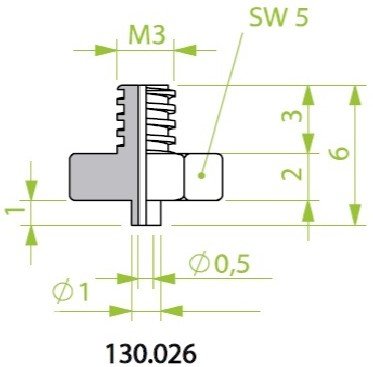

| 1.0 | 0.8 | 1.6 | 0.1 | 0.1 | M3 | 130.026 | NBR | 10.001.108.01 |
| 1.0 | 0.8 | 1.6 | 0.1 | 0.1 | M3 | 130.026 | SILICON | 10.001.108.02 |

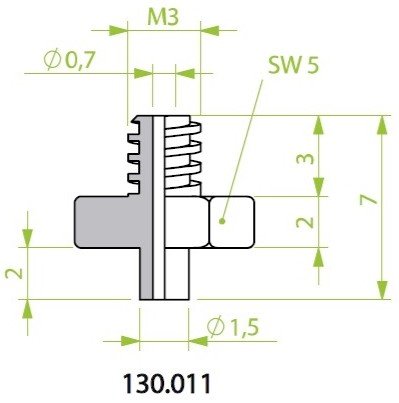

| 1.5 | 1.2 | 2.5 | 0.3 | 0.3 | M3 | 130.011 | NBR | 10.001.109.01 |
| 1.5 | 1.2 | 2.5 | 0.3 | 0.3 | M3 | 130.011 | SILICON | 10.001.109.02 |
