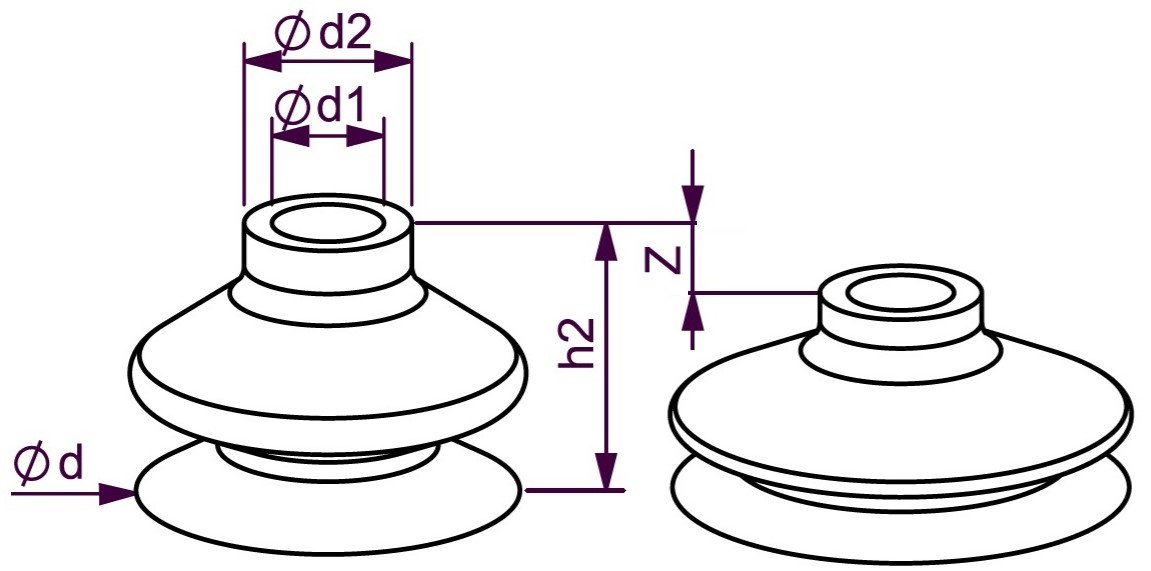

Ventuza burduf 1½ Prime VAC
| Diametru exterior ∅d |
Inaltimea totala h2 |
Diametru interior ∅d1 |
Diametru exterior ∅d2 |
Comprimare ventuza Z |
Material ventuza |
Cod comanda |
| [mm] | [mm] | [mm] | [mm] | [mm] | ||
| 14 | 18 | 5 | 12.0 | 8 | NBR | 210.014.064.1 |
| 25 | 22 | 8 | 18.5 | 5 | NBR | 210.025.065.1 |
| 40 | 32 | 8 | 18.5 | 13 | NBR | 210.040.066.1 |
| 60 | 40 | 8 | 18.0 | 15 | NBR | 210.060.023.1 |
| 14 | 18 | 5 | 12.0 | 8 | SILICON | 210.014.064.2 |
| 25 | 22 | 8 | 18.5 | 5 | SILICON | 210.025.065.2 |
| 40 | 32 | 8 | 18.5 | 13 | SILICON | 210.040.066.2 |
| 60 | 40 | 8 | 18.0 | 15 | SILICON | 210.060.023.2 |
| 14 | 18 | 5 | 12.0 | 8 | NR | 210.014.064.3 |
| 25 | 22 | 8 | 18.5 | 5 | NR | 210.025.065.3 |
| 40 | 32 | 8 | 18.5 | 13 | NR | 210.040.066.1 |
| 60 | 40 | 8 | 18.0 | 15 | NR | 210.060.023.3 |
| 14 | 18 | 5 | 12.0 | 8 | CR | 210.014.064.4 |
| 25 | 22 | 8 | 18.5 | 5 | CR | 210.025.065.4 |
| 40 | 32 | 8 | 18.5 | 13 | CR | 210.040.066.4 |
| 60 | 40 | 8 | 18.0 | 15 | CR | 210.060.023.14 |
| 14 | 18 | 5 | 12.0 | 8 | POLIURETAN | 210.014.064.5 |
| 25 | 22 | 8 | 18.5 | 5 | POLIURETAN | 210.025.065.5 |
| 40 | 32 | 8 | 18.5 | 13 | POLIURETAN | 210.040.066.5 |
| 60 | 40 | 8 | 18.0 | 15 | POLIURETAN | 210.060.023.5 |
| 14 | 18 | 5 | 12.0 | 8 | EPDM | 210.014.064.6 |
| 25 | 22 | 8 | 18.5 | 5 | EPDM | 210.025.065.6 |
| 40 | 32 | 8 | 18.5 | 13 | EPDM | 210.040.066.6 |
| 60 | 40 | 8 | 18.0 | 15 | EPDM | 210.060.023.6 |
