Ventuza burduf 2½ cu filet interior Prime VAC

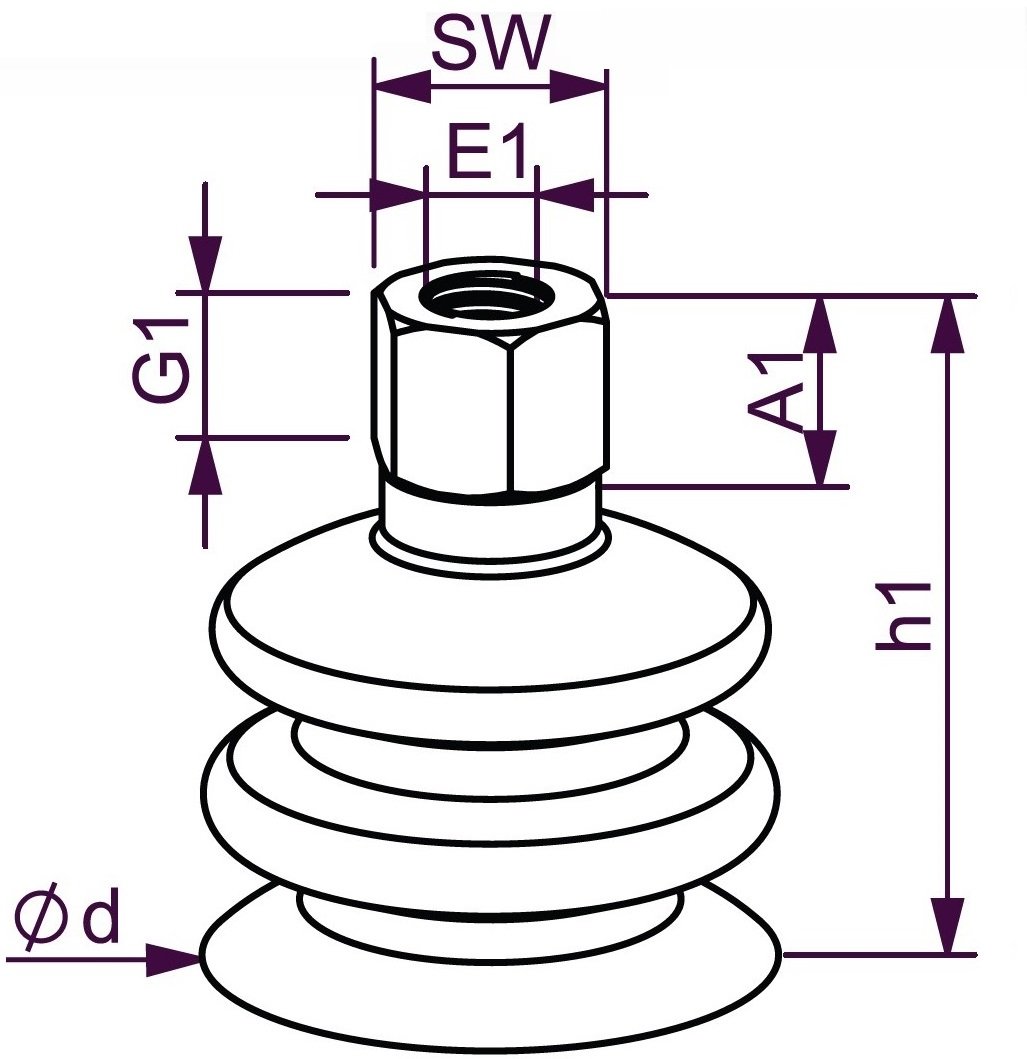

| Diametru exterior ∅d |
Inaltimea totala h1 |
Inaltimea racord A1 |
Inaltimea filet G1 |
Filet interior E1 |
Marime cheie SW |

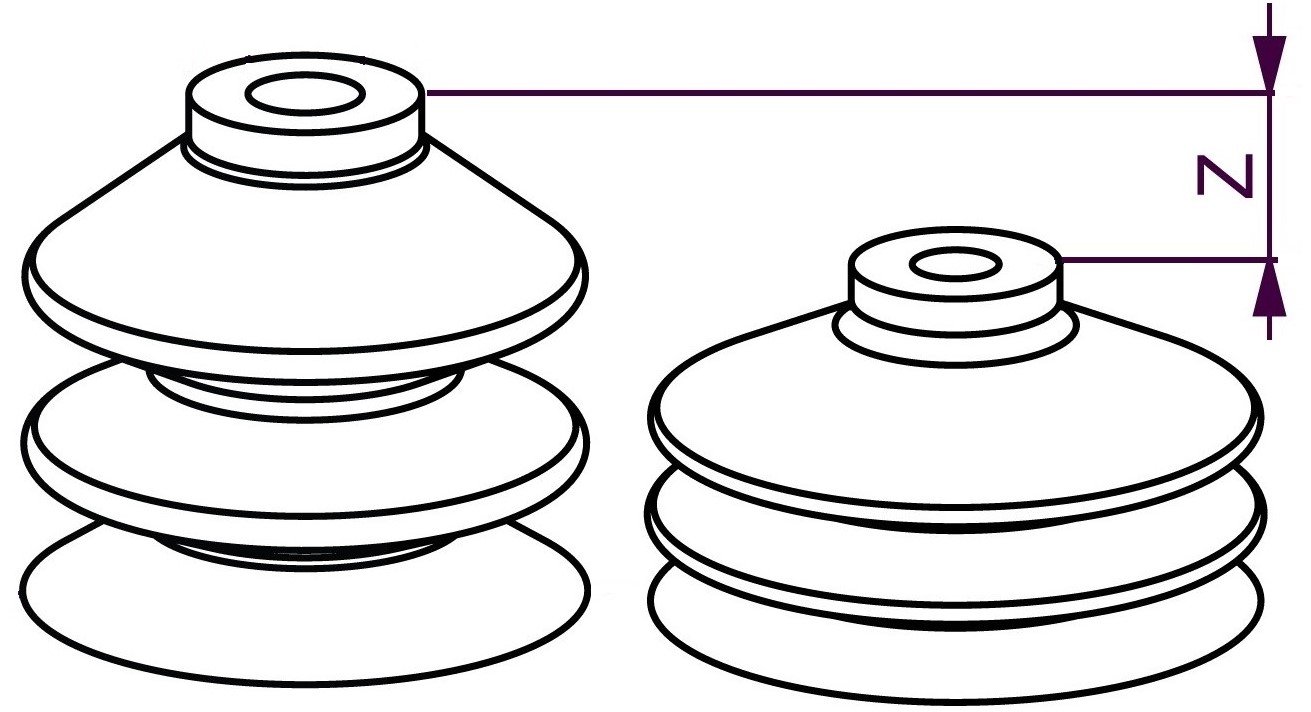

Comprimare ventuza Z |
Material ventuza |
Ventuza de inlocuit |
Cod comanda |
| [mm] | [mm] | [mm] | [mm] | [imperial] | [mm] | [mm] | |||
| 10 | 27.2 | 12.4 | 8.2 | G1/8" | 14 | 3 | NBR | 220.010.021.1 | 221.010.003.1 |
| 14 | 35.0 | 13.5 | 7.5 | G1/8" | 14 | 10 | NBR | 220.014.023.1 | 221.014.004.1 |
| 18 | 34.0 | 12.4 | 8.2 | G1/8" | 14 | 8 | NBR | 220.018.001.1 | 221.018.005.1 |
| 30 | 48.0 | 15.0 | 12.0 | G1/4" | 17 | 13 | NBR | 220.030.006.1 | 221.030.006.1 |
| 40 | 60.0 | 15.0 | 12.0 | G1/4" | 17 | 20 | NBR | 220.040.010.1 | 221.040.007.1 |
| 60 | 70.0 | 15.0 | 12.0 | G1/4" | 17 | 24 | NBR | 220.060.026.1 | 221.060.010.1 |
| 85 | 96.0 | 17.0 | 12.0 | G1/4" | 22 | 38 | NBR | -- | 223.085.007.1 |
| 10 | 27.2 | 12.4 | 8.2 | G1/8" | 14 | 3 | SILICON | 220.010.021.2 | 221.010.003.2 |
| 14 | 35.0 | 13.5 | 7.5 | G1/8" | 14 | 10 | SILICON | 220.014.023.2 | 221.014.004.2 |
| 18 | 34.0 | 12.4 | 8.2 | G1/8" | 14 | 8 | SILICON | 220.018.001.2 | 221.018.005.2 |
| 30 | 48.0 | 15.0 | 12.0 | G1/4" | 17 | 13 | SILICON | 220.030.006.2 | 221.030.006.2 |
| 40 | 60.0 | 15.0 | 12.0 | G1/4" | 17 | 20 | SILICON | 220.040.010.2 | 221.040.007.2 |
| 60 | 70.0 | 15.0 | 12.0 | G1/4" | 17 | 24 | SILICON | 220.060.026.2 | 221.060.010.2 |
| 85 | 96.0 | 17.0 | 12.0 | G1/4" | 22 | 38 | SILICON | -- | 223.085.007.2 |
| 10 | 27.2 | 12.4 | 8.2 | G1/8" | 14 | 3 | NR | 220.010.021.3 | 221.010.003.3 |
| 14 | 35.0 | 13.5 | 7.5 | G1/8" | 14 | 10 | NR | 220.014.023.3 | 221.014.004.3 |
| 18 | 34.0 | 12.4 | 8.2 | G1/8" | 14 | 8 | NR | 220.018.001.3 | 221.018.005.3 |
| 30 | 48.0 | 15.0 | 12.0 | G1/4" | 17 | 13 | NR | 220.030.006.3 | 221.030.006.3 |
| 40 | 60.0 | 15.0 | 12.0 | G1/4" | 17 | 20 | NR | 220.040.010.3 | 221.040.007.3 |
| 60 | 70.0 | 15.0 | 12.0 | G1/4" | 17 | 24 | NR | 220.060.026.3 | 221.060.010.3 |
| 85 | 96.0 | 17.0 | 12.0 | G1/4" | 22 | 38 | NR | -- | 223.085.007.3 |
| 10 | 27.2 | 12.4 | 8.2 | G1/8" | 14 | 3 | CR | 220.010.021.4 | 221.010.003.4 |
| 14 | 35.0 | 13.5 | 7.5 | G1/8" | 14 | 10 | CR | 220.014.023.4 | 221.014.004.4 |
| 18 | 34.0 | 12.4 | 8.2 | G1/8" | 14 | 8 | CR | 220.018.001.4 | 221.018.005.4 |
| 30 | 48.0 | 15.0 | 12.0 | G1/4" | 17 | 13 | CR | 220.030.006.4 | 221.030.006.4 |
| 40 | 60.0 | 15.0 | 12.0 | G1/4" | 17 | 20 | CR | 220.040.010.4 | 221.040.007.4 |
| 60 | 70.0 | 15.0 | 12.0 | G1/4" | 17 | 24 | CR | 220.060.026.4 | 221.060.010.4 |
| 85 | 96.0 | 17.0 | 12.0 | G1/4" | 22 | 38 | CR | -- | 223.085.007.4 |
| 10 | 27.2 | 12.4 | 8.2 | G1/8" | 14 | 3 | POLIURETAN | 220.010.021.5 | 221.010.003.5 |
| 14 | 35.0 | 13.5 | 7.5 | G1/8" | 14 | 10 | POLIURETAN | 220.014.023.5 | 221.014.004.5 |
| 18 | 34.0 | 12.4 | 8.2 | G1/8" | 14 | 8 | POLIURETAN | 220.018.001.5 | 221.018.005.5 |
| 30 | 48.0 | 15.0 | 12.0 | G1/4" | 17 | 13 | POLIURETAN | 220.030.006.5 | 221.030.006.5 |
| 40 | 60.0 | 15.0 | 12.0 | G1/4" | 17 | 20 | POLIURETAN | 220.040.010.5 | 221.040.007.5 |
| 60 | 70.0 | 15.0 | 12.0 | G1/4" | 17 | 24 | POLIURETAN | 220.060.026.5 | 221.060.010.5 |
| 85 | 96.0 | 17.0 | 12.0 | G1/4" | 22 | 38 | POLIURETAN | -- | 223.085.007.5 |
| 10 | 27.2 | 12.4 | 8.2 | G1/8" | 14 | 3 | EPDM | 220.010.021.6 | 221.010.003.6 |
| 14 | 35.0 | 13.5 | 7.5 | G1/8" | 14 | 10 | EPDM | 220.014.023.6 | 221.014.004.6 |
| 18 | 34.0 | 12.4 | 8.2 | G1/8" | 14 | 8 | EPDM | 220.018.001.6 | 221.018.005.6 |
| 30 | 48.0 | 15.0 | 12.0 | G1/4" | 17 | 13 | EPDM | 220.030.006.6 | 221.030.006.6 |
| 40 | 60.0 | 15.0 | 12.0 | G1/4" | 17 | 20 | EPDM | 220.040.010.6 | 221.040.007.6 |
| 60 | 70.0 | 15.0 | 12.0 | G1/4" | 17 | 24 | EPDM | 220.060.026.6 | 221.060.010.6 |
| 85 | 96.0 | 17.0 | 12.0 | G1/4" | 22 | 38 | EPDM | -- | 223.085.007.6 |
