Ventuza burduf 2½ Prime VAC

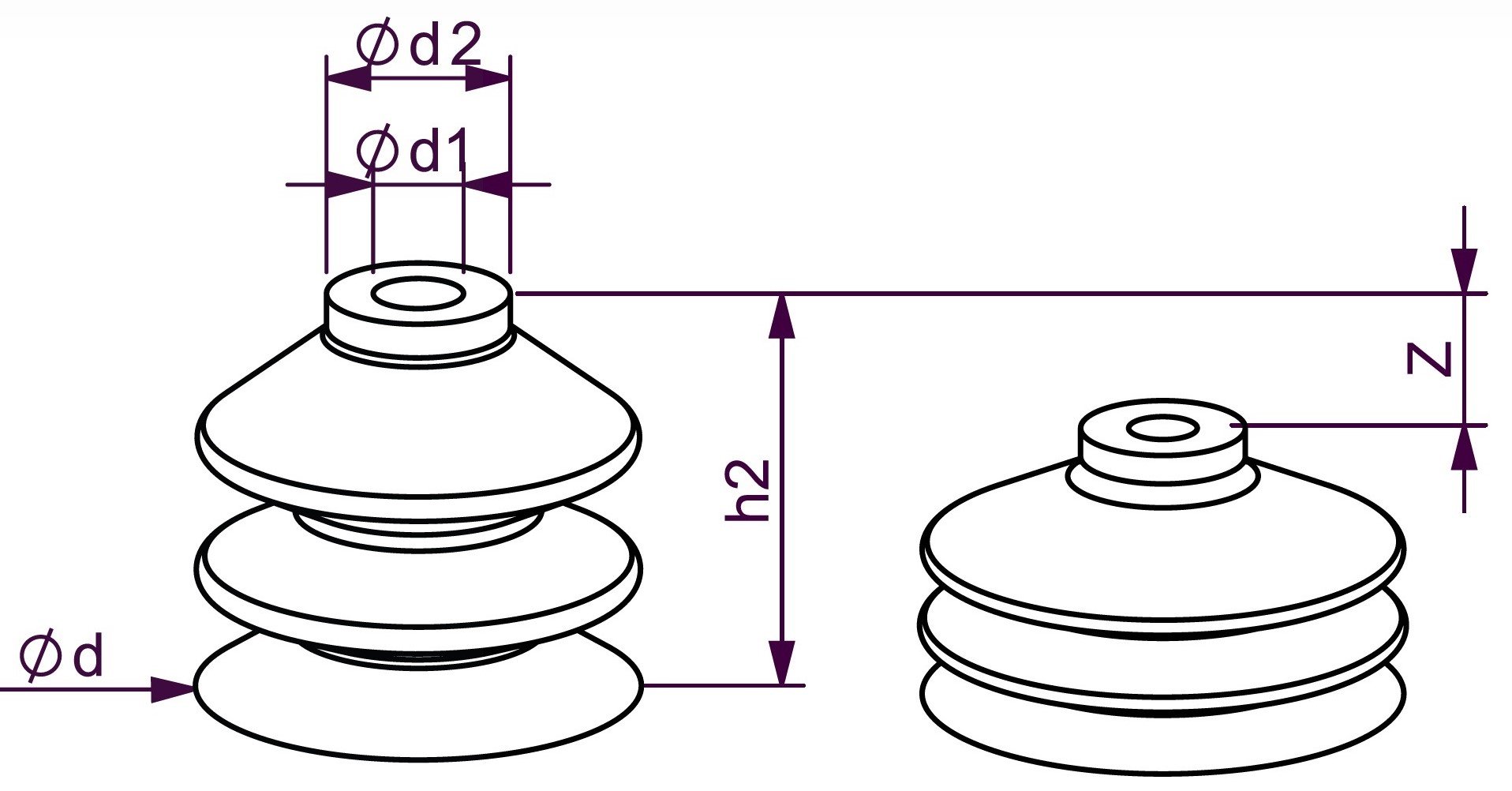

Diametru exterior ∅d	Inaltimea totala h2	Diametru exterior ∅d2	Diametru interior ∅d1	Comprimare ventuza Z	Material ventuza	Cod comanda
[mm]	[mm]	[mm]	[mm]	[mm]
10	15.7	10.2	5.3	3	NBR	220.010.021.1
14	23.0	12.0	5.0	10	NBR	220.014.023.1
18	22.0	12.0	5.0	8	NBR	220.018.001.1
30	33.0	19.0	8.0	13	NBR	220.030.006.1
40	45.0	19.0	8.0	20	NBR	220.040.010.1
60	55.0	19.0	8.0	24	NBR	220.060.026.1
10	15.7	10.2	5.3	3	SILICON	220.010.021.2
14	23.0	12.0	5.0	10	SILICON	220.014.023.2
18	22.0	12.0	5.0	8	SILICON	220.018.001.2
30	33.0	19.0	8.0	13	SILICON	220.030.006.2
40	45.0	19.0	8.0	20	SILICON	220.040.010.2
60	55.0	19.0	8.0	24	SILICON	220.060.026.2
10	15.7	10.2	5.3	3	NR	220.010.021.3
14	23.0	12.0	5.0	10	NR	220.014.023.3
18	22.0	12.0	5.0	8	NR	220.018.001.3
30	33.0	19.0	8.0	13	NR	220.030.006.3
40	45.0	19.0	8.0	20	NR	220.040.010.3
60	55.0	19.0	8.0	24	NR	220.060.026.3
10	15.7	10.2	5.3	3	CR	220.010.021.4
14	23.0	12.0	5.0	10	CR	220.014.023.4
18	22.0	12.0	5.0	8	CR	220.018.001.4
30	33.0	19.0	8.0	13	CR	220.030.006.4
40	45.0	19.0	8.0	20	CR	220.040.010.4
60	55.0	19.0	8.0	24	CR	220.060.026.4
10	15.7	10.2	5.3	3	POLIURETAN	220.010.021.5
14	23.0	12.0	5.0	10	POLIURETAN	220.014.023.5
18	22.0	12.0	5.0	8	POLIURETAN	220.018.001.5
30	33.0	19.0	8.0	13	POLIURETAN	220.030.006.5
40	45.0	19.0	8.0	20	POLIURETAN	220.040.010.5
60	55.0	19.0	8.0	24	POLIURETAN	220.060.026.5
10	15.7	10.2	5.3	3	EPDM	220.010.021.6
14	23.0	12.0	5.0	10	EPDM	220.014.023.6
18	22.0	12.0	5.0	8	EPDM	220.018.001.6
30	33.0	19.0	8.0	13	EPDM	220.030.006.6
40	45.0	19.0	8.0	20	EPDM	220.040.010.6
60	55.0	19.0	8.0	24	EPDM	220.060.026.6
