Ventuza plana cu racord cu filet interior Prime VAC
- Ventuza plana cu filet interior Seria Prime VAC
- Racord este vulcanizat pe ventuza si formeaza o unitate comuna
- Viteze mari de deplasare si de acceleratii
- Portanta mare la suprafete plane
- Rezistenta mare la forte orizonate

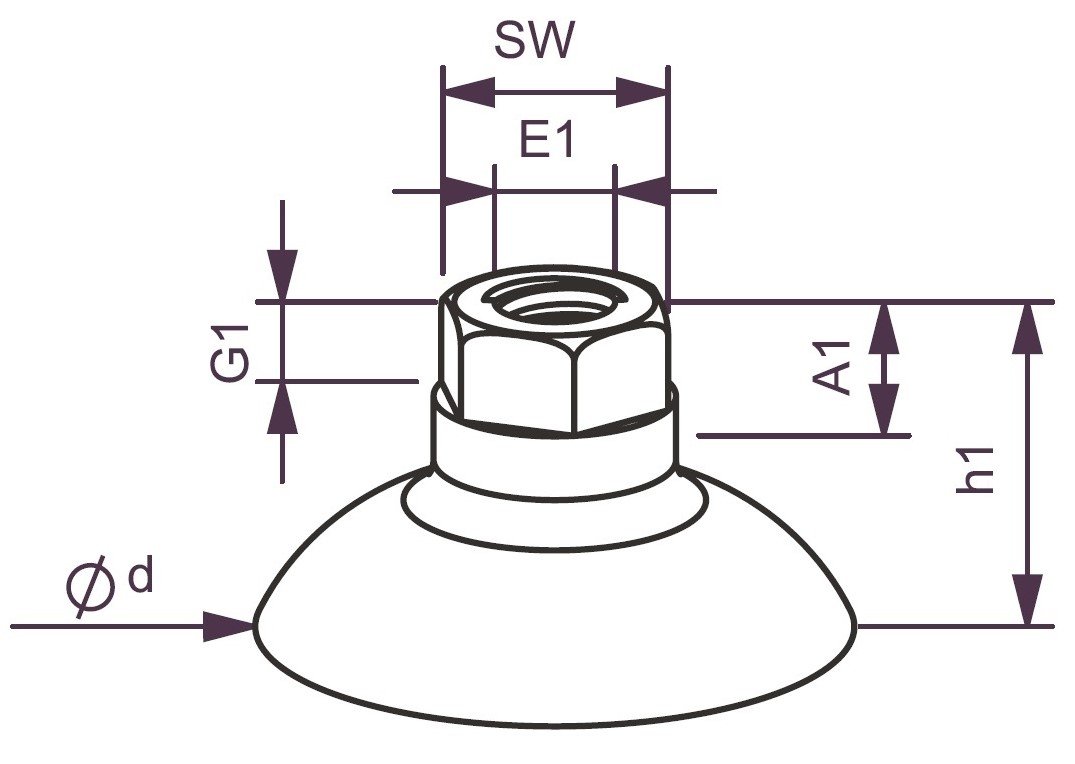

| Diametru exterior ∅d |
Inaltimea totala h1 |
Inaltimea racord A1 |
Inaltimea filet G1 |
Filet injterior E1 |
Marime cheie SW |
Comprimare ventuza Z |
Material ventuza |
Cod comanda |
| [mm] | [mm] | [mm] | [mm] | [imperial] | [mm] | [mm] | ||
| 20 | 24 | 12 | 8 | G1/8" | 14 | 3.5 | NBR | 13.020.074.1 |
| 34 | 29 | 15 | 12.5 | G1/4" | 17 | 2.5 | NBR | 13.034.075.1 |
| 53 | 33 | 15 | 11 | G1/4" | 17 | 3.0 | NBR | 13.053.012.1 |
| 75 | 43 | 18 | 12 | G1/4" | 22 | 4.0 | NBR | 13.075.013.1 |
| 96 | 62 | 17 | 12 | G1/4" | 22 | 8.0 | NBR | 13.096.014.1 |
| 20 | 24 | 12 | 8 | G1/8" | 14 | 3.5 | SILICON | 13.020.074.2 |
| 34 | 29 | 15 | 12.5 | G1/4" | 17 | 2.5 | SILICON | 13.034.075.2 |
| 53 | 33 | 15 | 11 | G1/4" | 17 | 3.0 | SILICON | 13.053.012.2 |
| 75 | 43 | 18 | 12 | G1/4" | 22 | 4.0 | SILICON | 13.075.013.2 |
| 96 | 62 | 17 | 12 | G1/4" | 22 | 8.0 | SILICON | 13.096.014.2 |
| 20 | 24 | 12 | 8 | G1/8" | 14 | 3.5 | NR | 13.020.074.3 |
| 34 | 29 | 15 | 12.5 | G1/4" | 17 | 2.5 | NR | 13.034.075.3 |
| 53 | 33 | 15 | 11 | G1/4" | 17 | 3.0 | NR | 13.053.012.3 |
| 75 | 43 | 18 | 12 | G1/4" | 22 | 4.0 | NR | 13.075.013.3 |
| 96 | 62 | 17 | 12 | G1/4" | 22 | 8.0 | NR | 13.096.014.3 |
| 20 | 24 | 12 | 8 | G1/8" | 14 | 3.5 | CR | 13.020.074.4 |
| 34 | 29 | 15 | 12.5 | G1/4" | 17 | 2.5 | CR | 13.034.075.4 |
| 53 | 33 | 15 | 11 | G1/4" | 17 | 3.0 | CR | 13.053.012.4 |
| 75 | 43 | 18 | 12 | G1/4" | 22 | 4.0 | CR | 13.075.013.4 |
| 96 | 62 | 17 | 12 | G1/4" | 22 | 8.0 | CR | 13.096.014.4 |
| 20 | 24 | 12 | 8 | G1/8" | 14 | 3.5 | POLIURETAN | 13.020.074.5 |
| 34 | 29 | 15 | 12.5 | G1/4" | 17 | 2.5 | POLIURETAN | 13.034.075.5 |
| 53 | 33 | 15 | 11 | G1/4" | 17 | 3.0 | POLIURETAN | 13.053.012.5 |
| 75 | 43 | 18 | 12 | G1/4" | 22 | 4.0 | POLIURETAN | 13.075.013.5 |
| 96 | 62 | 17 | 12 | G1/4" | 22 | 8.0 | POLIURETAN | 13.096.014.5 |
| 20 | 24 | 12 | 8 | G1/8" | 14 | 3.5 | EPDM | 13.020.074.6 |
| 34 | 29 | 15 | 12.5 | G1/4" | 17 | 2.5 | EPDM | 13.034.075.6 |
| 53 | 33 | 15 | 11 | G1/4" | 17 | 3.0 | EPDM | 13.053.012.6 |
| 75 | 43 | 18 | 12 | G1/4" | 22 | 4.0 | EPDM | 13.075.013.6 |
| 96 | 62 | 17 | 12 | G1/4" | 22 | 8.0 | EPDM | 13.096.014.6 |
