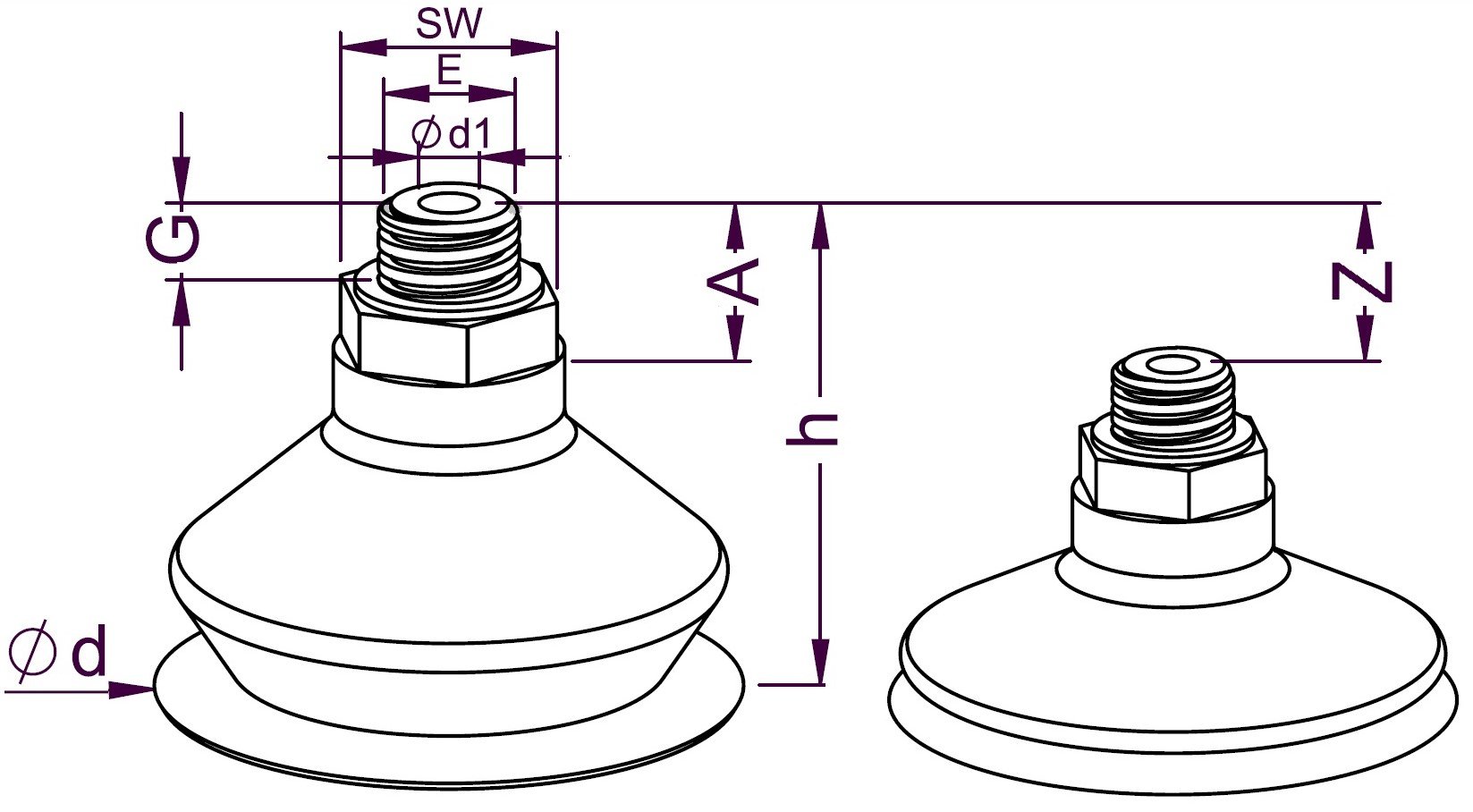

Ventuza burduf 1½ filet exterior Universal VAC
| Diametru exterior ∅d |
Diametru exterior ∅d1 |
Inaltimea totala h |
Inaltimea racord A |
Inaltimea filet G |
Filet exterior E |
Marime cheie SW |
Comprimare ventuza Z |
Material ventuza |
Cod comanda |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |||
| 8 | 2.0 | 22.5 | 11.5 | 3.5 | M5 | 8 | 3.0 | NBR | 214.008.011.1 |
| 15 | 3.0 | 25.5 | 12.0 | 4.7 | G1/8" | 13 | 6.0 | NBR | 214.015.012.1 |
| 30 | 3.0 | 34.0 | 12.0 | 4.7 | G1/8" | 13 | 13.0 | NBR | 214.030.013.1 |
| 40 | 3.0 | 43.0 | 16.0 | 5.8 | G1/4" | 17 | 14.0 | NBR | 214.040.014.1 |
| 55 | 4.0 | 52.0 | 16.0 | 5.8 | G1/4" | 17 | 20.0 | NBR | 214.055.015.1 |
| 75 | 4.0 | 43.5 | 16.0 | 5.8 | G1/4" | 17 | 14.5 | NBR | 214.075.016.1 |
| 100 | 4.0 | 43.5 | 16.0 | 5.8 | G1/4" | 17 | 14.5 | NBR | 214.100.017.1 |
| 125 | 7.0 | 60.0 | 20.0 | 6.0 | G3/8" | 19 | 26.0 | NBR | 214.125.018.1 |
| 8 | 2.0 | 22.5 | 11.5 | 3.5 | M5 | 8 | 3.0 | SILICON | 214.008.011.2 |
| 15 | 3.0 | 25.5 | 12.0 | 4.7 | G1/8" | 13 | 6.0 | SILICON | 214.015.012.2 |
| 30 | 3.0 | 34.0 | 12.0 | 4.7 | G1/8" | 13 | 13.0 | SILICON | 214.030.013.2 |
| 40 | 3.0 | 43.0 | 16.0 | 5.8 | G1/4" | 17 | 14.0 | SILICON | 214.040.014.2 |
| 55 | 4.0 | 52.0 | 16.0 | 5.8 | G1/4" | 17 | 20.0 | SILICON | 214.055.015.2 |
| 75 | 4.0 | 43.5 | 16.0 | 5.8 | G1/4" | 17 | 14.5 | SILICON | 214.075.016.2 |
| 100 | 4.0 | 43.5 | 16.0 | 5.8 | G1/4" | 17 | 14.5 | SILICON | 214.100.017.2 |
| 125 | 7.0 | 60.0 | 20.0 | 6.0 | G3/8" | 19 | 26.0 | SILICON | 214.125.018.2 |
| 8 | 2.0 | 22.5 | 11.5 | 3.5 | M5 | 8 | 3.0 | NR | 214.008.011.3 |
| 15 | 3.0 | 25.5 | 12.0 | 4.7 | G1/8" | 13 | 6.0 | NR | 214.015.012.3 |
| 30 | 3.0 | 34.0 | 12.0 | 4.7 | G1/8" | 13 | 13.0 | NR | 214.030.013.3 |
| 40 | 3.0 | 43.0 | 16.0 | 5.8 | G1/4" | 17 | 14.0 | NR | 214.040.014.3 |
| 55 | 4.0 | 52.0 | 16.0 | 5.8 | G1/4" | 17 | 20.0 | NR | 214.055.015.3 |
| 75 | 4.0 | 43.5 | 16.0 | 5.8 | G1/4" | 17 | 14.5 | NR | 214.075.016.3 |
| 100 | 4.0 | 43.5 | 16.0 | 5.8 | G1/4" | 17 | 14.5 | NR | 214.100.017.3 |
| 125 | 7.0 | 60.0 | 20.0 | 6.0 | G3/8" | 19 | 26.0 | NR | 214.125.018.3 |
| 8 | 2.0 | 22.5 | 11.5 | 3.5 | M5 | 8 | 3.0 | CR | 214.008.011.4 |
| 15 | 3.0 | 25.5 | 12.0 | 4.7 | G1/8" | 13 | 6.0 | CR | 214.015.012.4 |
| 30 | 3.0 | 34.0 | 12.0 | 4.7 | G1/8" | 13 | 13.0 | CR | 214.030.013.4 |
| 40 | 3.0 | 43.0 | 16.0 | 5.8 | G1/4" | 17 | 14.0 | CR | 214.040.014.4 |
| 55 | 4.0 | 52.0 | 16.0 | 5.8 | G1/4" | 17 | 20.0 | CR | 214.055.015.4 |
| 75 | 4.0 | 43.5 | 16.0 | 5.8 | G1/4" | 17 | 14.5 | CR | 214.075.016.4 |
| 100 | 4.0 | 43.5 | 16.0 | 5.8 | G1/4" | 17 | 14.5 | CR | 214.100.017.4 |
| 125 | 7.0 | 60.0 | 20.0 | 6.0 | G3/8" | 19 | 26.0 | CR | 214.125.018.4 |
| 8 | 2.0 | 22.5 | 11.5 | 3.5 | M5 | 8 | 3.0 | POLIURETAN | 214.008.011.5 |
| 15 | 3.0 | 25.5 | 12.0 | 4.7 | G1/8" | 13 | 6.0 | POLIURETAN | 214.015.012.5 |
| 30 | 3.0 | 34.0 | 12.0 | 4.7 | G1/8" | 13 | 13.0 | POLIURETAN | 214.030.013.5 |
| 40 | 3.0 | 43.0 | 16.0 | 5.8 | G1/4" | 17 | 14.0 | POLIURETAN | 214.040.014.5 |
| 55 | 4.0 | 52.0 | 16.0 | 5.8 | G1/4" | 17 | 20.0 | POLIURETAN | 214.055.015.5 |
| 75 | 4.0 | 43.5 | 16.0 | 5.8 | G1/4" | 17 | 14.5 | POLIURETAN | 214.075.016.5 |
| 100 | 4.0 | 43.5 | 16.0 | 5.8 | G1/4" | 17 | 14.5 | POLIURETAN | 214.100.017.5 |
| 125 | 7.0 | 60.0 | 20.0 | 6.0 | G3/8" | 19 | 26.0 | POLIURETAN | 214.125.018.5 |
| 8 | 2.0 | 22.5 | 11.5 | 3.5 | M5 | 8 | 3.0 | EPDM | 214.008.011.6 |
| 15 | 3.0 | 25.5 | 12.0 | 4.7 | G1/8" | 13 | 6.0 | EPDM | 214.015.012.6 |
| 30 | 3.0 | 34.0 | 12.0 | 4.7 | G1/8" | 13 | 13.0 | EPDM | 214.030.013.6 |
| 40 | 3.0 | 43.0 | 16.0 | 5.8 | G1/4" | 17 | 14.0 | EPDM | 214.040.014.6 |
| 55 | 4.0 | 52.0 | 16.0 | 5.8 | G1/4" | 17 | 20.0 | EPDM | 214.055.015.6 |
| 75 | 4.0 | 43.5 | 16.0 | 5.8 | G1/4" | 17 | 14.5 | EPDM | 214.075.016.6 |
| 100 | 4.0 | 43.5 | 16.0 | 5.8 | G1/4" | 17 | 14.5 | EPDM | 214.100.017.6 |
| 125 | 7.0 | 60.0 | 20.0 | 6.0 | G3/8" | 19 | 26.0 | EPDM | 214.125.018.6 |
