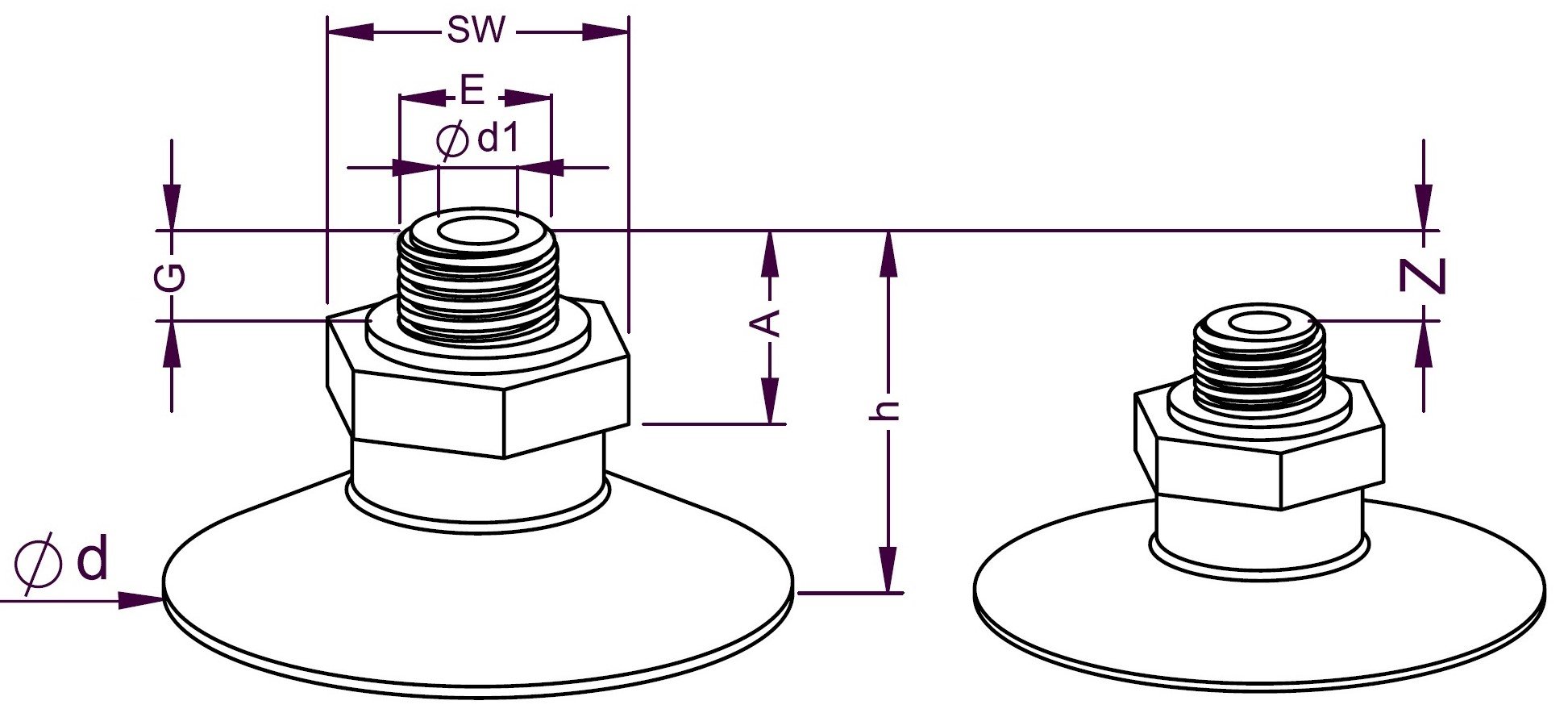

Ventuza plana cu racord cu filet exterior Universal VAC
| Diametru exterior ∅d |
Inaltimea totala h |
Inaltimea racord A |
Inaltimea filet G |
Filet exterior E |
Marime cheie SW |
Comprimare ventuza Z |
Material ventuza |
Cod comanda |
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |||
| 8 | 19.2 | 11.5 | 4.0 | M5 | 8 | 1.0 | NBR | 14.008.041.1 |
| 10 | 19.2 | 11.5 | 4.0 | M5 | 8 | 1.0 | NBR | 14.010.042.1 |
| 15 | 20.0 | 12.0 | 4.7 | G1/8" | 13 | 1.2 | NBR | 14.015.043.1 |
| 30 | 21.5 | 12.0 | 4.7 | G1/8" | 13 | 2.0 | NBR | 14.030.044.1 |
| 40 | 32.5 | 19.0 | 5.8 | G1/4" | 17 | 3.0 | NBR | 14.040.045.1 |
| 55 | 35.5 | 19.0 | 5.8 | G1/4" | 17 | 3.5 | NBR | 14.055.046.1 |
| 75 | 29.0 | 18.0 | 5.8 | G1/4" | 17 | 3.5 | NBR | 14.074.047.1 |
| 100 | 29.0 | 18.0 | 5.8 | G1/4" | 17 | 3.5 | NBR | 14.100.048.1 |
| 125 | 36.0 | 20.0 | 6.0 | G3/8" | 19 | 6.0 | NBR | 14.125.049.1 |
| 8 | 19.2 | 11.5 | 4.0 | M5 | 8 | 1.0 | SILICON | 14.008.041.2 |
| 10 | 19.2 | 11.5 | 4.0 | M5 | 8 | 1.0 | SILICON | 14.010.042.2 |
| 15 | 20.0 | 12.0 | 4.7 | G1/8" | 13 | 1.2 | SILICON | 14.015.043.2 |
| 30 | 21.5 | 12.0 | 4.7 | G1/8" | 13 | 2.0 | SILICON | 14.030.044.2 |
| 40 | 32.5 | 19.0 | 5.8 | G1/4" | 17 | 3.0 | SILICON | 14.040.045.2 |
| 55 | 35.5 | 19.0 | 5.8 | G1/4" | 17 | 3.5 | SILICON | 14.055.046.2 |
| 75 | 29.0 | 18.0 | 5.8 | G1/4" | 17 | 3.5 | SILICON | 14.074.047.2 |
| 100 | 29.0 | 18.0 | 5.8 | G1/4" | 17 | 3.5 | SILICON | 14.100.048.2 |
| 125 | 36.0 | 20.0 | 6.0 | G3/8" | 19 | 6.0 | SILICON | 14.125.049.2 |
| 8 | 19.2 | 11.5 | 4.0 | M5 | 8 | 1.0 | NR | 14.008.041.3 |
| 10 | 19.2 | 11.5 | 4.0 | M5 | 8 | 1.0 | NR | 14.010.042.3 |
| 15 | 20.0 | 12.0 | 4.7 | G1/8" | 13 | 1.2 | NR | 14.015.043.3 |
| 30 | 21.5 | 12.0 | 4.7 | G1/8" | 13 | 2.0 | NR | 14.030.044.3 |
| 40 | 32.5 | 19.0 | 5.8 | G1/4" | 17 | 3.0 | NR | 14.040.045.3 |
| 55 | 35.5 | 19.0 | 5.8 | G1/4" | 17 | 3.5 | NR | 14.055.046.3 |
| 75 | 29.0 | 18.0 | 5.8 | G1/4" | 17 | 3.5 | NR | 14.074.047.3 |
| 100 | 29.0 | 18.0 | 5.8 | G1/4" | 17 | 3.5 | NR | 14.100.048.3 |
| 125 | 36.0 | 20.0 | 6.0 | G3/8" | 19 | 6.0 | NR | 14.125.049.3 |
| 8 | 19.2 | 11.5 | 4.0 | M5 | 8 | 1.0 | CR | 14.008.041.4 |
| 10 | 19.2 | 11.5 | 4.0 | M5 | 8 | 1.0 | CR | 14.010.042.4 |
| 15 | 20.0 | 12.0 | 4.7 | G1/8" | 13 | 1.2 | CR | 14.015.043.4 |
| 30 | 21.5 | 12.0 | 4.7 | G1/8" | 13 | 2.0 | CR | 14.030.044.4 |
| 40 | 32.5 | 19.0 | 5.8 | G1/4" | 17 | 3.0 | CR | 14.040.045.4 |
| 55 | 35.5 | 19.0 | 5.8 | G1/4" | 17 | 3.5 | CR | 14.055.046.4 |
| 75 | 29.0 | 18.0 | 5.8 | G1/4" | 17 | 3.5 | CR | 14.074.047.4 |
| 100 | 29.0 | 18.0 | 5.8 | G1/4" | 17 | 3.5 | CR | 14.100.048.4 |
| 125 | 36.0 | 20.0 | 6.0 | G3/8" | 19 | 6.0 | CR | 14.125.049.4 |
| 8 | 19.2 | 11.5 | 4.0 | M5 | 8 | 1.0 | POLIURETAN | 14.008.041.5 |
| 10 | 19.2 | 11.5 | 4.0 | M5 | 8 | 1.0 | POLIURETAN | 14.010.042.5 |
| 15 | 20.0 | 12.0 | 4.7 | G1/8" | 13 | 1.2 | POLIURETAN | 14.015.043.5 |
| 30 | 21.5 | 12.0 | 4.7 | G1/8" | 13 | 2.0 | POLIURETAN | 14.030.044.5 |
| 40 | 32.5 | 19.0 | 5.8 | G1/4" | 17 | 3.0 | POLIURETAN | 14.040.045.5 |
| 55 | 35.5 | 19.0 | 5.8 | G1/4" | 17 | 3.5 | POLIURETAN | 14.055.046.5 |
| 75 | 29.0 | 18.0 | 5.8 | G1/4" | 17 | 3.5 | POLIURETAN | 14.074.047.5 |
| 100 | 29.0 | 18.0 | 5.8 | G1/4" | 17 | 3.5 | POLIURETAN | 14.100.048.5 |
| 125 | 36.0 | 20.0 | 6.0 | G3/8" | 19 | 6.0 | POLIURETAN | 14.125.049.5 |
| 8 | 19.2 | 11.5 | 4.0 | M5 | 8 | 1.0 | EPDM | 14.008.041.6 |
| 10 | 19.2 | 11.5 | 4.0 | M5 | 8 | 1.0 | EPDM | 14.010.042.6 |
| 15 | 20.0 | 12.0 | 4.7 | G1/8" | 13 | 1.2 | EPDM | 14.015.043.6 |
| 30 | 21.5 | 12.0 | 4.7 | G1/8" | 13 | 2.0 | EPDM | 14.030.044.6 |
| 40 | 32.5 | 19.0 | 5.8 | G1/4" | 17 | 3.0 | EPDM | 14.040.045.6 |
| 55 | 35.5 | 19.0 | 5.8 | G1/4" | 17 | 3.5 | EPDM | 14.055.046.6 |
| 75 | 29.0 | 18.0 | 5.8 | G1/4" | 17 | 3.5 | EPDM | 14.074.047.6 |
| 100 | 29.0 | 18.0 | 5.8 | G1/4" | 17 | 3.5 | EPDM | 14.100.048.6 |
| 125 | 36.0 | 20.0 | 6.0 | G3/8" | 19 | 6.0 | EPDM | 14.125.049.5 |
