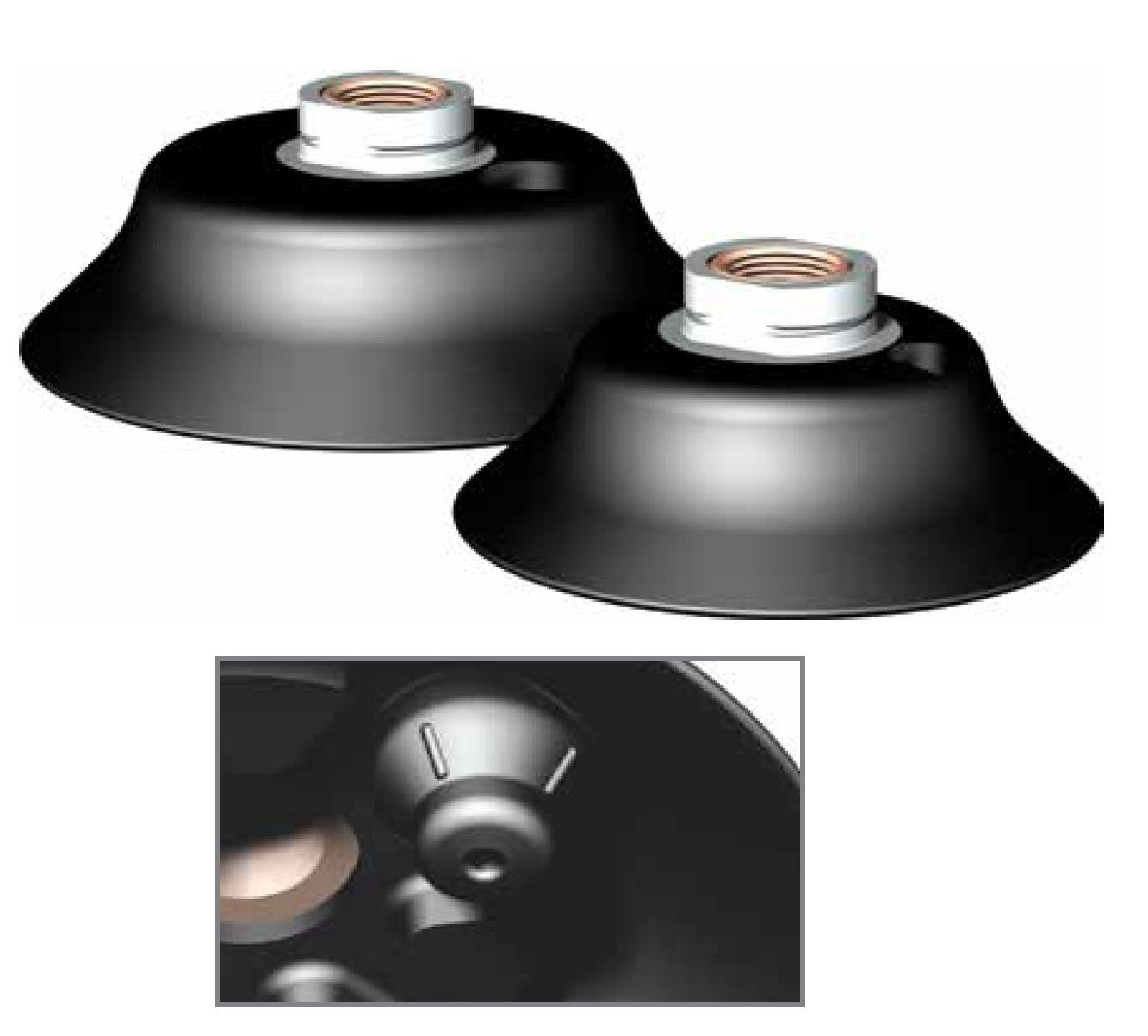

Ventuza plata rotunda Seria DC Destacker Stress Relieving
- Ventuze rotunde din seria DC Destacker Stress Relieving
- Produs special patentat

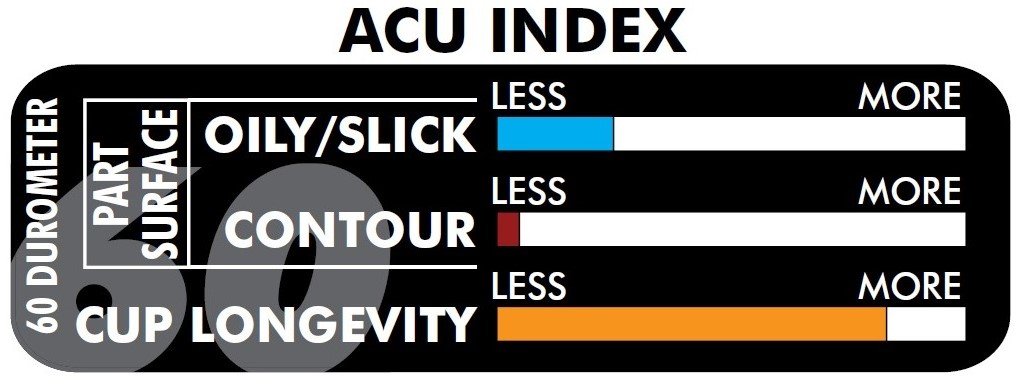

- Pentru suprafete relativ plane si moderat uleioase si alunecoase
- Distanta foarte mare de compresiune a ventuzei si rezistenta mare la shock
- Material NITRIL pentru aplicatii generale
- Temperaturi de lucru:
perioada de timp intre 15 - 59 sec intre -29°C si +121°C
perioada de timp intre 1 - 5 min intre -9°C si +82°C - Material NITRIL cu duritate Shore 60° rezistent la: ulei, grasimi, apa lichide hidraulice, alcohol
|
Model |
Diametru exterior A |
Inaltimea totala B |
Inaltimea comprimata C |

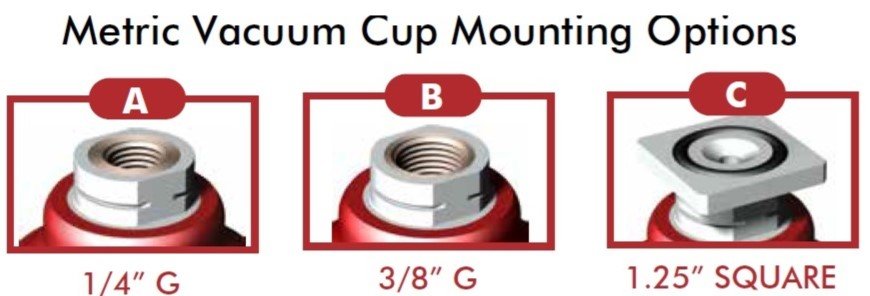

Filet / prindere |
Duritate Nitril |
Portanta ridicare verticala WLL |
Greutate ventuza G |
Cod Comanda |
| [mm] | [mm] | [mm] | [imperial] | [Shore] | [kg] | [g] | ||
| CPI-75DC-A-60 | 84.8 | 25.4 | 16.7 | G 1/4" | 60° | 15.9 | 84 | CPI-75DC-A-60 |
| CPI-75DC-B-60 | 84.8 | 25.4 | 16.7 | G 3/8" | 60° | 15.9 | 84 | CPI-75DC-B-60 |
| CPI-75DC-C-60 | 84.8 | 25.4 | 16.7 | Patrat 1.25" | 60° | 15.9 | 84 | CPI-75DC-C-60 |
| CPI-100DC-A-60 | 105.9 | 28.6 | 16.7 | G 1/4" | 60° | 63.1 | 120 | CPI-100DC-A-60 |
| CPI-100DC-B-60 | 105.9 | 28.6 | 16.7 | G 3/8" | 60° | 63.1 | 120 | CPI-100DC-B-60 |
| CPI-100DC-C-60 | 105.9 | 28.6 | 16.7 | Patrat 1.25" | 60° | 63.1 | 120 | CPI-100DC-C-60 |
