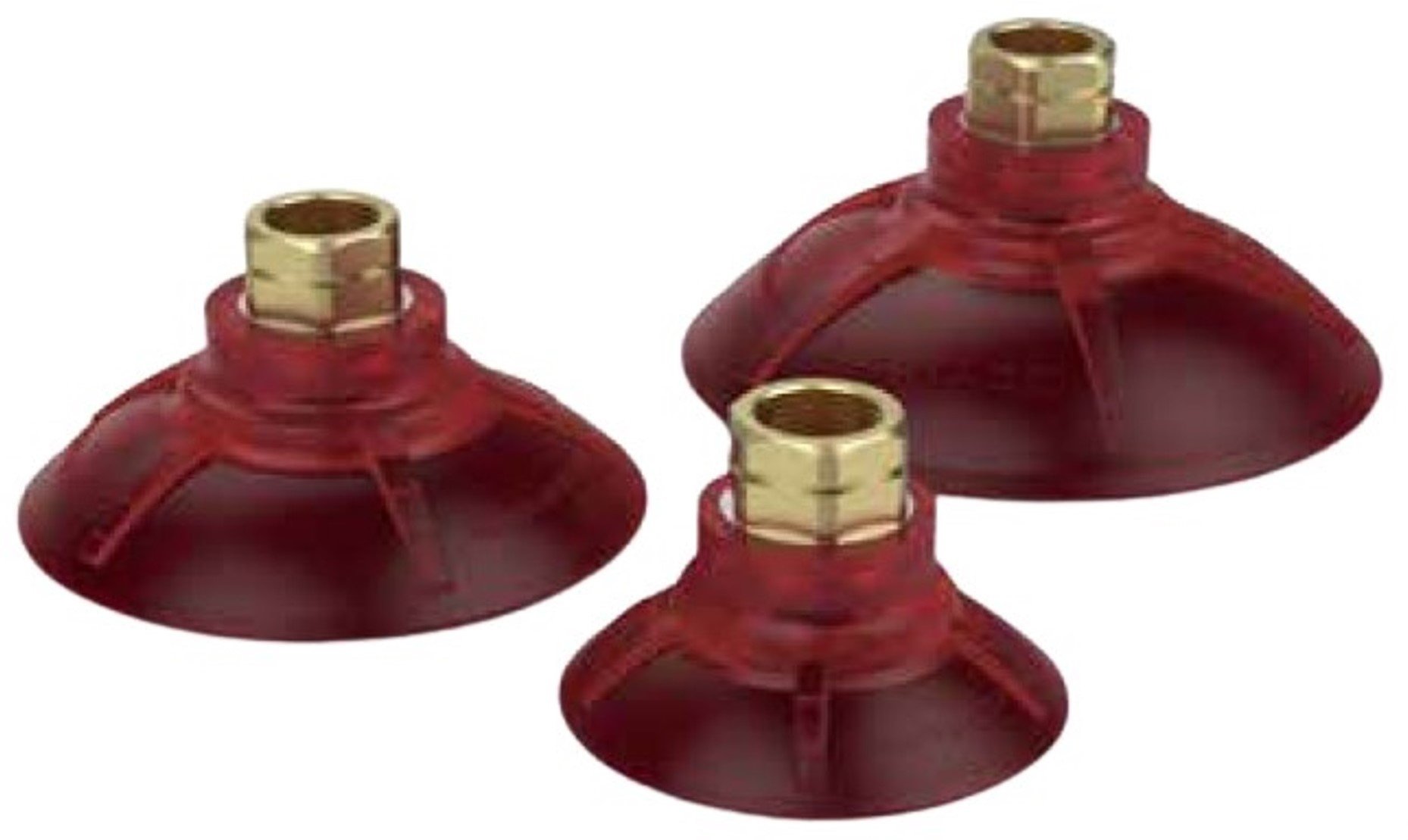

Ventuza plata rotunda Seria DD ACCELERATE DESTACO
|
Model |
Diametru exterior A |
Inaltimea totala B |
Inaltimea comprimata C |
Inaltime racord M |
Filet prindere |
Forta ridicare verticala F |
Forta ridicare orizontala uscat |
Forta ridicare orizontala umed |
Greutate cupa G |
Cod Comanda |
| [mm] | [mm] | [mm] | [mm] | [imperial] | [N] | [N] | [N] | [g] | ||
| 65DD-U38 | 67.5 | 28.2 | 17.0 | 13.0 | 3/8 NPT | 19.4 | 20.0 | 13.7 | 25 | VC-65DD-G38-PU60 |
| 65DD-G38 | 67.5 | 28.2 | 17.0 | 19.5 | G 3/8" | 19.4 | 20.0 | 13.7 | 25 | VC-65DD-P38-PU60 |
| 65DD-P38 | 67.5 | 28.2 | 17.0 | 17.3 | Nylon G3/8" | 19.4 | 20.0 | 13.7 | 25 | VC-65DD-C-PU60 |
| 65DD-C | 67.5 | 28.2 | 17.0 | 9.5 | 1.25" patrat | 19.4 | 20.0 | 13.7 | 25 | VC-90DD-U38-PU60 |
| 90DD-U38 | 92.5 | 32.2 | 19.0 | 13.0 | 3/8 NPT | 31.6 | 36.5 | 25.3 | 43 | VC-90DD-G38-PU60 |
| 90DD-G38 | 92.5 | 32.2 | 19.0 | 19.5 | G 3/8" | 31.6 | 36.5 | 25.3 | 43 | VC-90DD-P38-PU60 |
| 90DD-P38 | 92.5 | 32.2 | 19.0 | 17.3 | Nylon G3/8" | 31.6 | 36.5 | 25.3 | 43 | VC-90DD-C-PU60 |
| 90DD-C | 92.5 | 32.2 | 19.0 | 9.5 | 1.25" patrat | 31.6 | 36.5 | 25.3 | 43 | VC-110DD-U38-PU60 |
| 110DD-U38 | 112.5 | 40.6 | 21.0 | 13.0 | 3/8 NPT | 44.2 | 58.5 | 36.5 | 68 | VC-110DD-G38-PU60 |
| 110DD-G38 | 112.5 | 40.6 | 21.0 | 19.5 | G 3/8" | 44.2 | 58.5 | 36.5 | 68 | VC-110DD-P38-PU60 |
| 110DD-P38 | 112.5 | 40.6 | 21.0 | 17.3 | Nylon G3/8" | 44.2 | 58.5 | 36.5 | 68 | VC-110DD-P38-PU60 |
| 110DD-C | 112.5 | 40.6 | 21.0 | 9.5 | 1.25" patrat | 44.2 | 58.5 | 36.5 | 68 | VC-110DD-C-PU60 |
