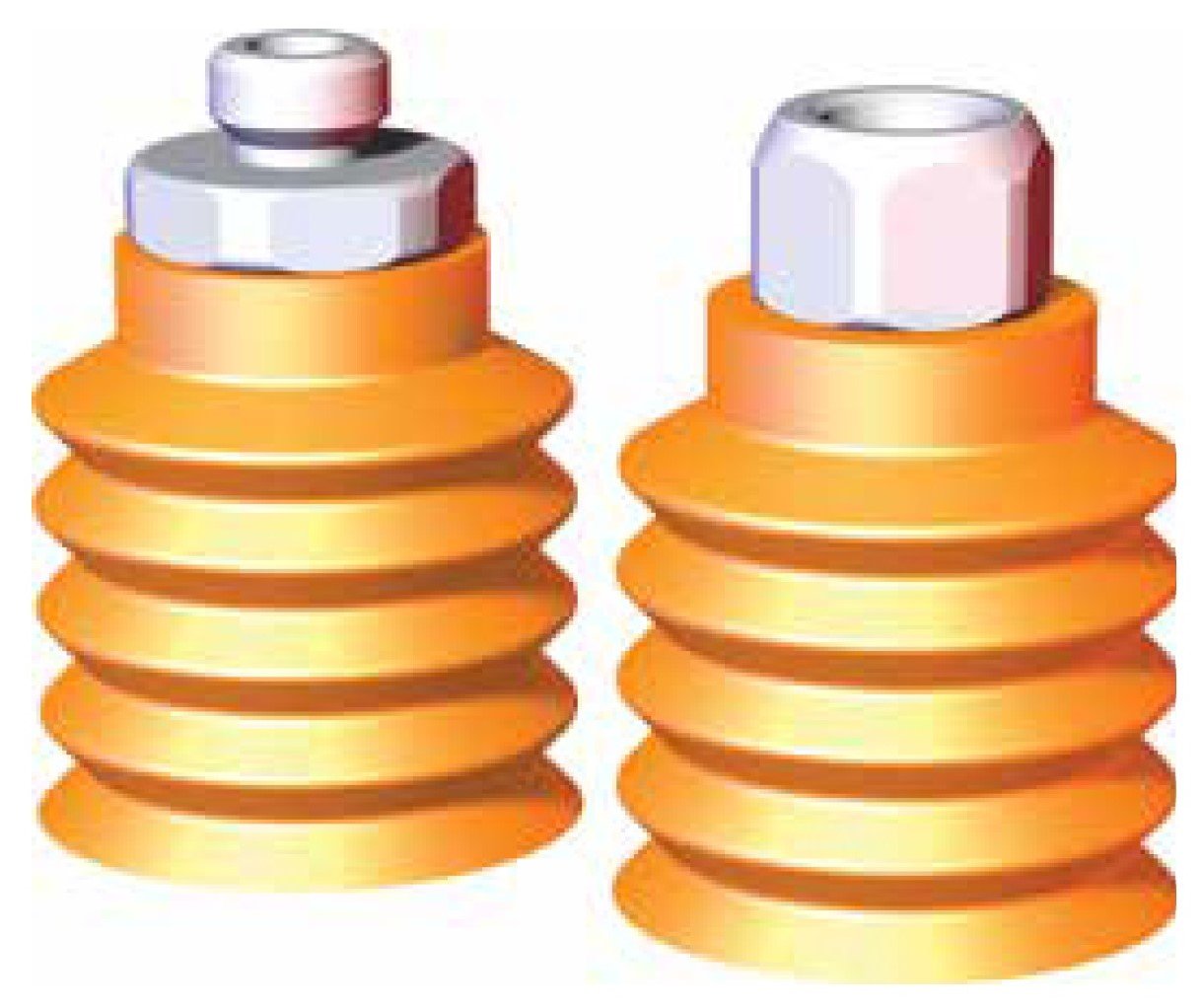

Ventuza multi-burduf rotunda Seria VC-BM MICRO DESTACO
- Ventuze multi-burduf rotund din seria DESTACO MICRO
- Pentru suprafete inclinate si ondulate
- Distanta mari de compresiune
- Cele mai bune perfrmante de ridicare pe suprafete uscate
- Material SILICON - pentru aplicatii cu temperaturi inalte - temperaturi de lucru -70°C si 205°C
- Material NITRIL - aplicatii generale - temperaturi de lucru -40°C si 135°C
- Duritate Shore A50

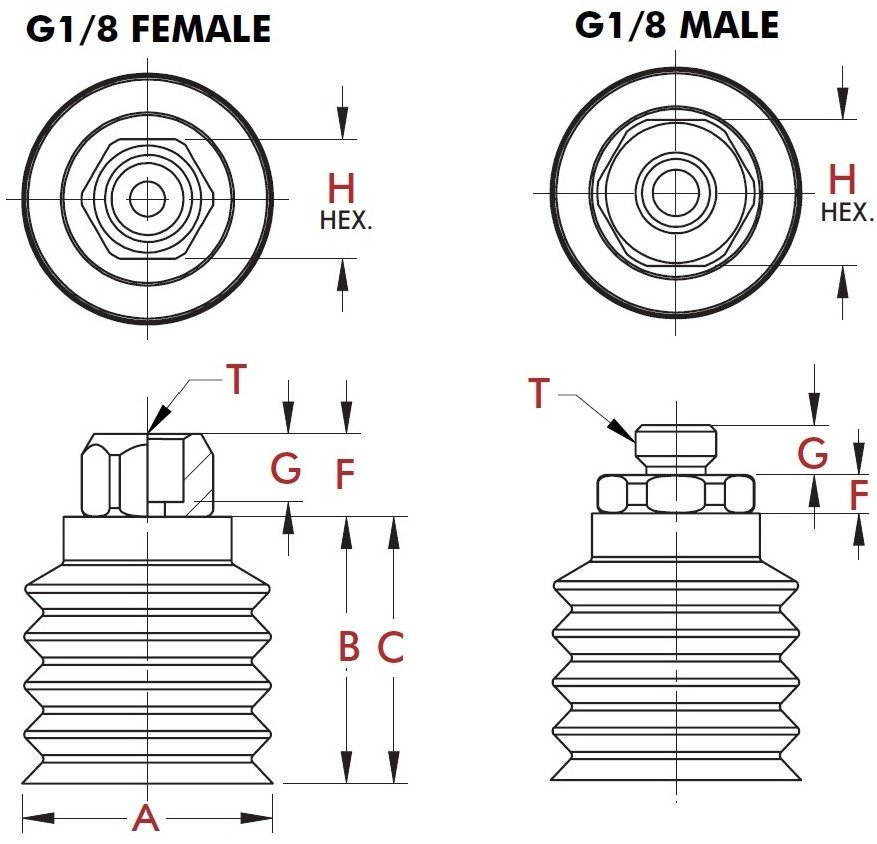

| Denumire produs |
Material | Diametru exterior A |
Inaltime ventuza B |
Inalltime ventuza comprimata C |
Greutate ventuza |
Portanta ridicare WLL |

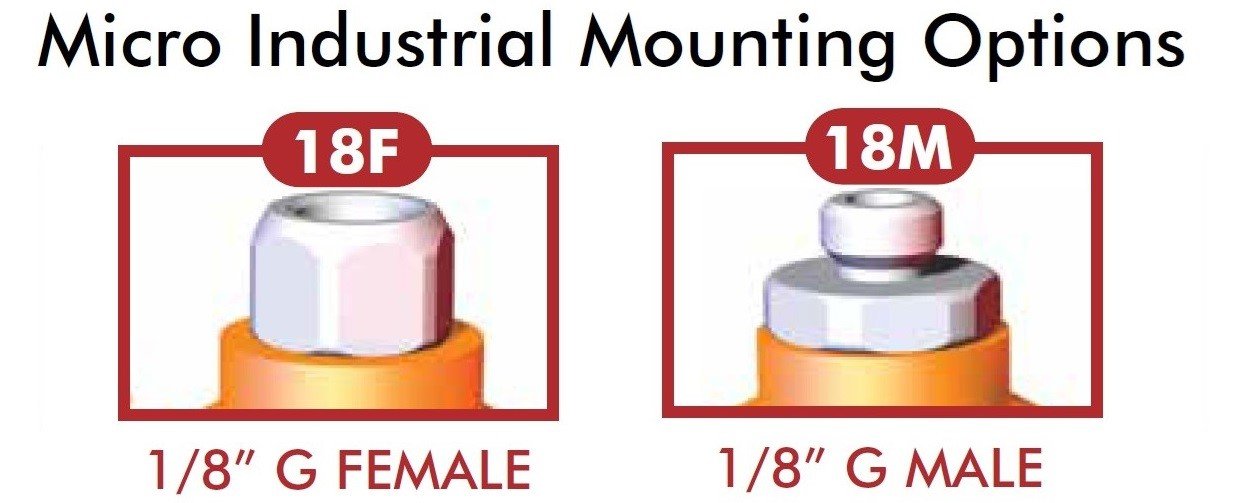

Marimea racord F |
Inaltime piulita G |
Hexagon piulita H |
Cod comanda |
| [mm] | [mm] | [mm] | [g] | [kg] | [mm] | [mm] | [mm] | |||
| VC-BM20S-10M | Silicon | 20.1 | 21.9 | 8.9 | 5.3 | 0.68 | 5.1 | 4.1 | 7.9 | VC-BM20S-10M |
| VC-BM20S-18F | Silicon | 20.1 | 21.9 | 8.9 | 5.3 | 0.68 | 2.8 | 5.8 | 14.2 | VC-BM20S-18F |
| VC-BM20S-18M | Silicon | 20.1 | 21.9 | 8.9 | 5.3 | 0.68 | 9.9 | 6.4 | 14.2 | VC-BM20S-18M |
| VC-BM20N-10M | Nitril | 20.1 | 21.9 | 8.9 | 5.3 | 0.68 | 5.1 | 4.1 | 7.9 | VC-BM20N-10M |
| VC-BM20N-18F | Nitril | 20.1 | 21.9 | 8.9 | 5.3 | 0.68 | 2.8 | 5.8 | 14.2 | VC-BM20N-18F |
| VC-BM20N-18M | Nitril | 20.1 | 21.9 | 8.9 | 5.3 | 0.68 | 9.9 | 6.4 | 14.2 | VC-BM20N-18M |
| VC-BM30S-10M | Silicon | 30.0 | 30.7 | 10.7 | 10.3 | 1.64 | 5.1 | 4.1 | 7.9 | VC-BM30S-10M |
| VC-BM30S-18F | Silicon | 30.0 | 30.7 | 10.7 | 10.3 | 1.64 | 2.8 | 5.8 | 14.2 | VC-BM30S-18F |
| VC-BM30S-18M | Silicon | 30.0 | 30.7 | 10.7 | 10.3 | 1.64 | 9.9 | 6.4 | 14.2 | VC-BM30S-18M |
| VC-BM30N-10M | Nitril | 30.0 | 30.7 | 10.7 | 10.3 | 1.64 | 5.1 | 4.1 | 7.9 | VC-BM30N-10M |
| VC-BM30N-18F | Nitril | 30.0 | 30.7 | 10.7 | 10.3 | 1.64 | 2.8 | 5.8 | 14.2 | VC-BM30N-18F |
| VC-BM30N-18M | Nitril | 30.0 | 30.7 | 10.7 | 10.3 | 1.64 | 9.9 | 6.4 | 14.2 | VC-BM30N-18M |
| VC-BM40S-10M | Silicon | 39.8 | 40.9 | 12.9 | 19.6 | 2.21 | 5.1 | 4.1 | 7.9 | VC-BM40S-10M |
| VC-BM40S-18F | Silicon | 39.8 | 40.9 | 12.9 | 19.6 | 2.21 | 2.8 | 5.8 | 14.2 | VC-BM40S-18F |
| VC-BM40S-18M | Silicon | 39.8 | 40.9 | 12.9 | 19.6 | 2.21 | 9.9 | 6.4 | 14.2 | VC-BM40S-18M |
| VC-BM40N-10M | Nitril | 39.8 | 40.9 | 12.9 | 19.6 | 2.21 | 5.1 | 4.1 | 7.9 | VC-BM40N-10M |
| VC-BM40N-18F | Nitril | 39.8 | 40.9 | 12.9 | 19.6 | 2.21 | 2.8 | 5.8 | 14.2 | VC-BM40N-18F |
| VC-BM40N-18M | Nitril | 39.8 | 40.9 | 12.9 | 19.6 | 2.21 | 9.9 | 6.4 | 14.2 | VC-BM40N-18M |
| VC-BM50S-10M | Silicon | 50.0 | 51.1 | 23.1 | 32.7 | 4.37 | 5.1 | 4.1 | 7.9 | VC-BM50S-10M |
| VC-BM50S-18F | Silicon | 50.0 | 51.1 | 23.1 | 32.7 | 4.37 | 2.8 | 5.8 | 14.2 | VC-BM50S-18F |
| VC-BM50S-18M | Silicon | 50.0 | 51.1 | 23.1 | 32.7 | 4.37 | 9.9 | 6.4 | 14.2 | VC-BM50S-18M |
| VC-BM50N-10M | Nitril | 50.0 | 51.1 | 23.1 | 32.7 | 4.37 | 5.1 | 4.1 | 7.9 | VC-BM50N-10M |
| VC-BM50N-18F | Nitril | 50.0 | 51.1 | 23.1 | 32.7 | 4.37 | 2.8 | 5.8 | 14.2 | VC-BM50N-18F |
| VC-BM50N-18M | Nitril | 50.0 | 51.1 | 23.1 | 32.7 | 4.37 | 9.9 | 6.4 | 14.2 | VC-BM50N-18M |
