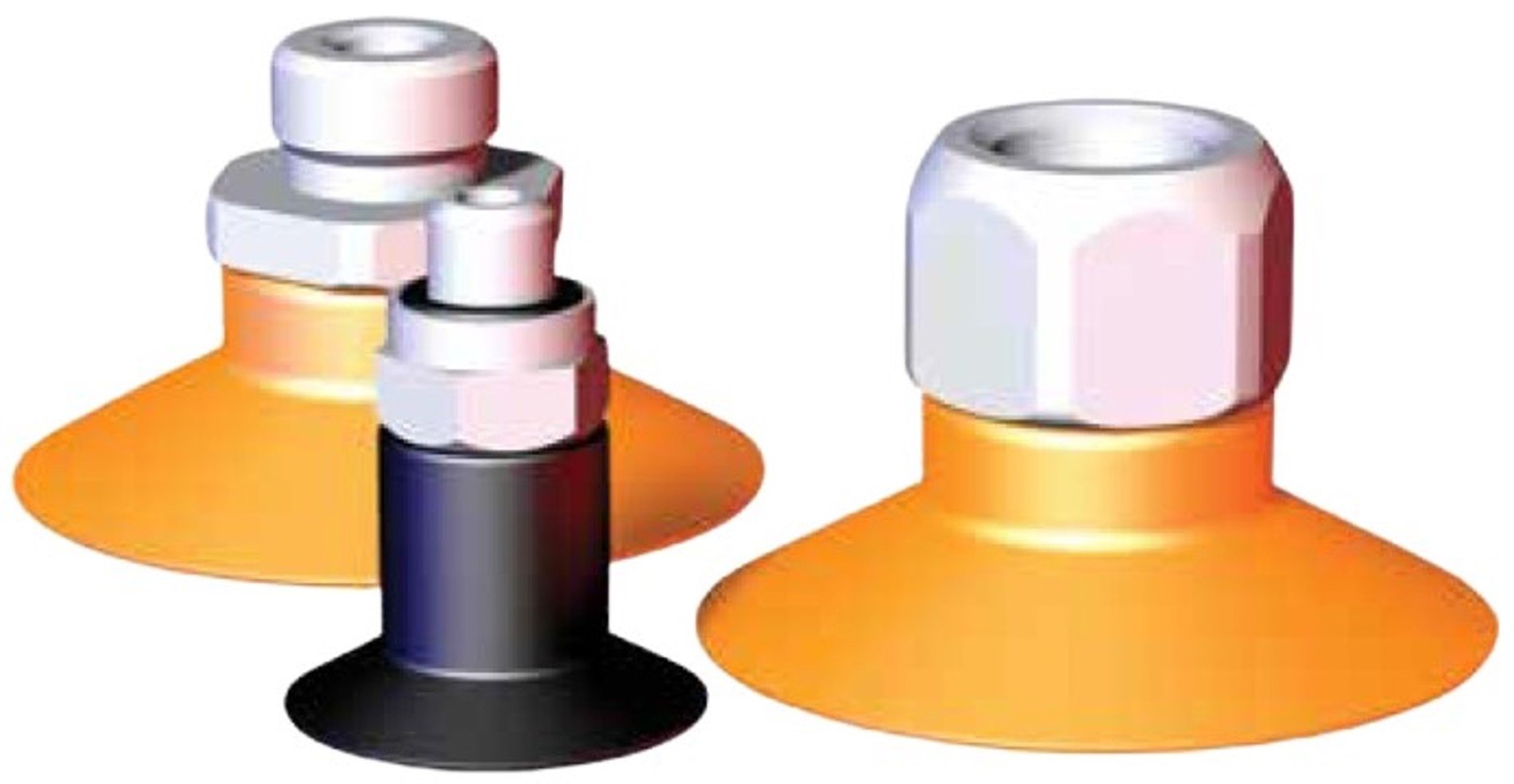

Ventuza plata rotunda Seria VC-F MICRO DESTACO
- Ventuze plate rotunde din seria DESTACO MICRO

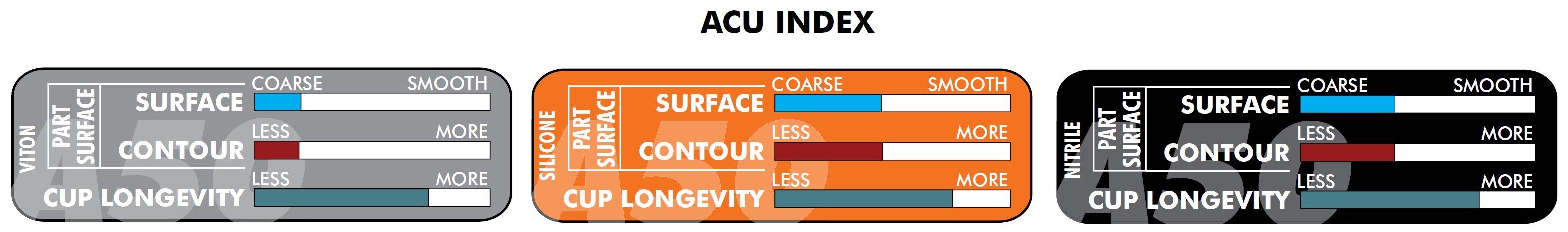

- Pentru suprafete relativ plane si moderat uleioase si alunecoase
- Distanta foarte mica de compresiune
- Material VITON - alternativa pentru aplicatii unde nu este admis silicon - temperaturi de lucru -40°C si 232°C
- Material SILICON - pentru aplicatii cu temperaturi inalte - temperaturi de lucru -70°C si 205°C
- Material NITRIL - aplicatii generale - temperaturi de lucru -40°C si 135°C
- Duritate Shore A50

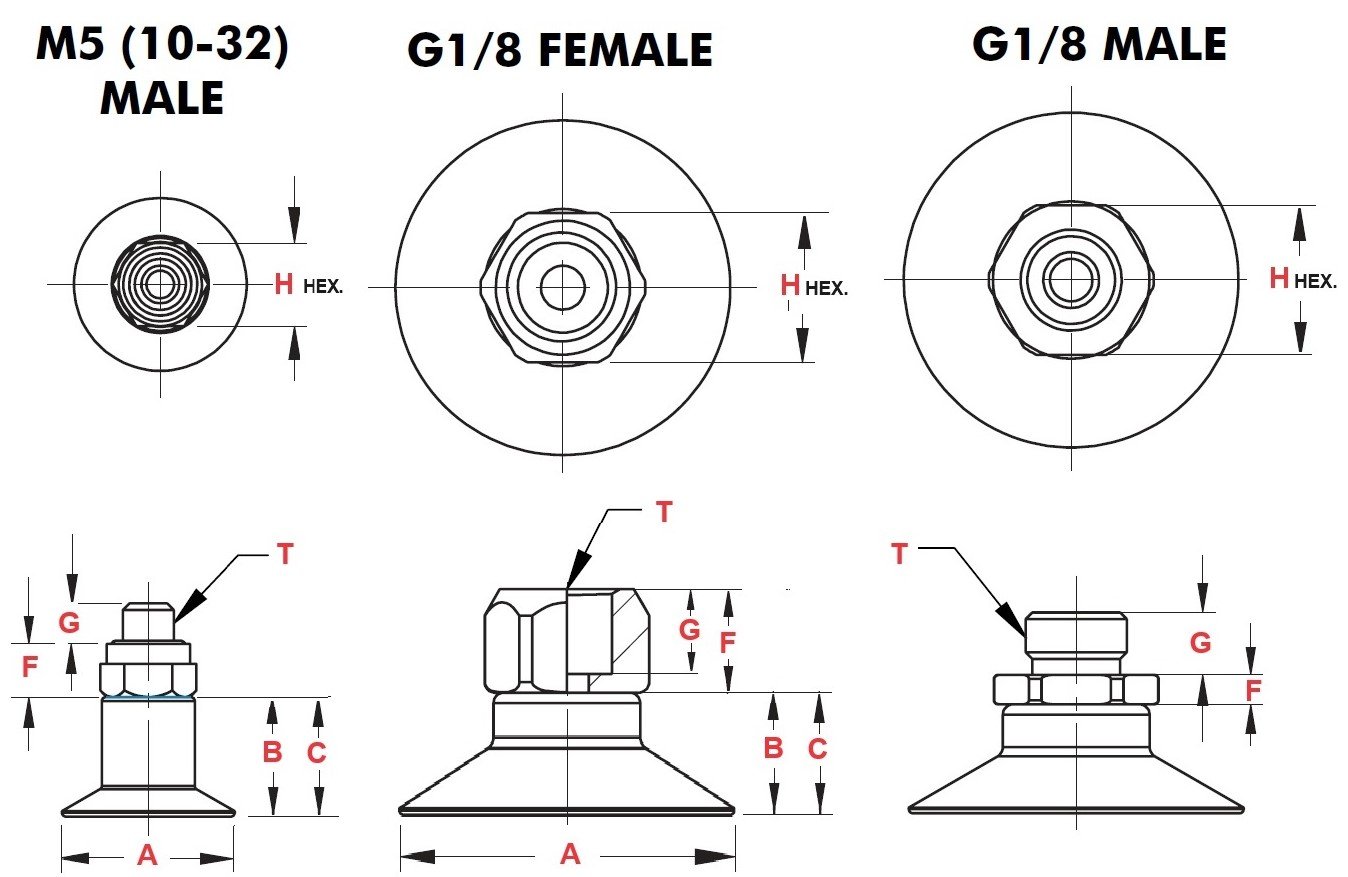

Denumire
produsMaterial Diametru
exterior
AInaltime
ventuza
BInalltime
ventuza
comprimata
CGreutate
ventuzaPortanta
ridicare

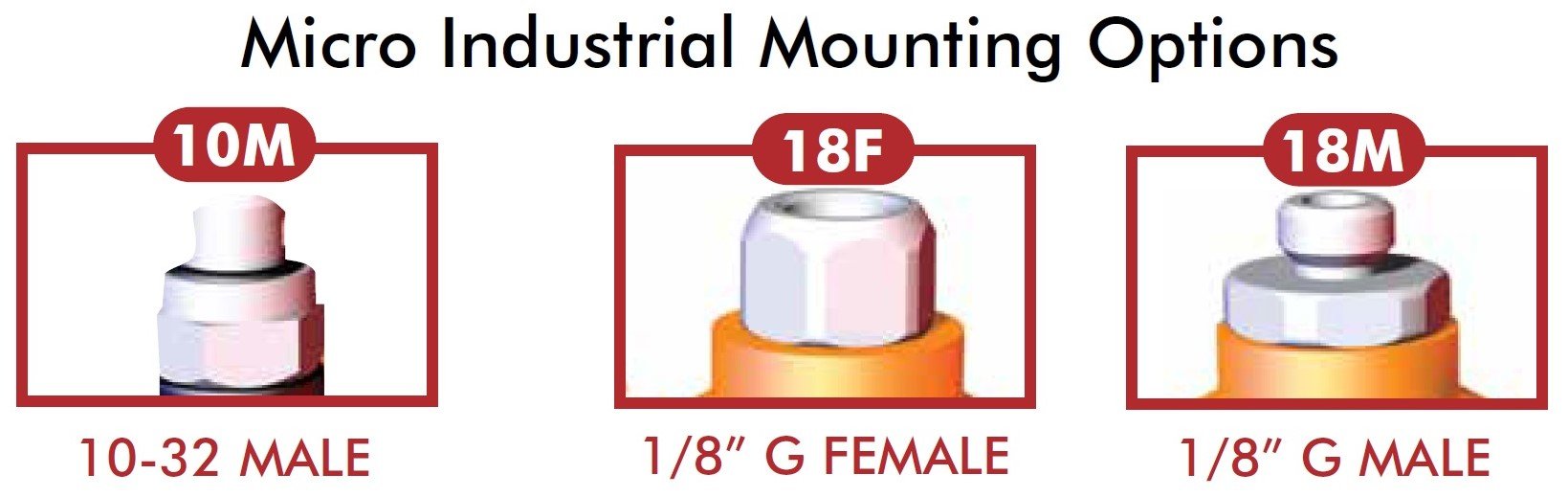

WLLMarimea
racord
FInaltime
piulita
GHexagon
piulita
HCod
comanda[mm] [mm] [mm] [g] [kg] [mm] [mm] [mm] VC-F15S-10M Silicon 16.5 11.4 10.5 3.4 0.85 5.1 4.1 7.9 VC-F15V-M10 VC-F15S-18F Silicon 16.5 11.4 10.5 3.4 0.85 2.8 5.8 14.2 VC-F15V-18F VC-F15S-18M Silicon 16.5 11.4 10.5 3.4 0.85 9.9 6.4 14.2 VC-F15V-M18 VC-F15N-10M Nitril 16.5 11.4 10.5 3.4 0.85 5.1 4.1 7.9 VC-F15V-M10 VC-F15N-18F Nitril 16.5 11.4 10.5 3.4 0.85 2.8 5.8 14.2 VC-F15V-18F VC-F15N-18M Nitril 16.5 11.4 10.5 3.4 0.85 9.9 6.4 14.2 VC-F15V-M18 VC-F20S-10M Silicon 22.1 8.6 7.1 7.8 1.47 5.1 4.1 7.9 VC-F20S-10M VC-F20S-18F Silicon 22.1 8.6 7.1 7.8 1.47 2.8 5.8 14.2 VC-F20S-18F VC-F20S-18M Silicon 22.1 8.6 7.1 7.8 1.47 9.9 6.4 14.2 VC-F20S-18M VC-F20N-10M Nitril 22.1 8.6 7.1 7.8 1.47 5.1 4.1 7.9 VC-F20N-10M VC-F20N-18F Nitril 22.1 8.6 7.1 7.8 1.47 2.8 5.8 14.2 VC-F20N-18F VC-F20N-18M Nitril 22.1 8.6 7.1 7.8 1.47 9.9 6.4 14.2 VC-F20N-18M VC-F30V-18F Viton 32.0 10.4 8.1 6.2 2.55 2.8 5.8 14.2 VC-F30V-18F VC-F30V-18M Viton 32.0 10.4 8.1 6.2 2.55 9.9 6.4 14.2 VC-F30V-18M VC-F30S-18F Silicon 32.0 10.4 8.1 6.2 2.55 2.8 5.8 14.2 VC-F30S-18F VC-F30S-18M Silicon 32.0 10.4 8.1 6.2 2.55 9.9 6.4 14.2 VC-F30S-18M VC-F30N-18F Nitril 32.0 10.4 8.1 6.2 2.55 2.8 5.8 14.2 VC-F30N-18F VC-F30N-18M Nitril 32.0 10.4 8.1 6.2 2.55 9.9 6.4 14.2 VC-F30N-18M VC-F40V-18F Viton 42.2 14.0 11.4 11.8 4.08 5.1 4.1 7.9 VC-F40V-18F VC-F40V-18M Viton 42.2 14.0 11.4 11.8 4.08 2.8 5.8 14.2 VC-F40V-18M VC-F40S-18F Silicon 42.2 14.0 11.4 11.8 4.08 9.9 6.4 14.2 VC-F40S-18F VC-F40S-18M Silicon 42.2 14.0 11.4 11.8 4.08 5.1 4.1 7.9 VC-F40S-18M VC-F40N-18F Nitril 42.2 14.0 11.4 11.8 4.08 2.8 5.8 14.2 VC-F40N-18F VC-F40N-18M Nitril 42.2 14.0 11.4 11.8 4.08 9.9 6.4 14.2 VC-F40N-18M VC-F50V-18F Viton 53.1 17.5 14.5 19.6 7.54 5.1 4.1 7.9 VC-F50V-18F VC-F50V-18M Viton 53.1 17.5 14.5 19.6 7.54 2.8 5.8 14.2 VC-F50V-18M VC-F50S-18F Silicon 53.1 17.5 14.5 19.6 7.54 9.9 6.4 14.2 VC-F50S-18F VC-F50S-18M Silicon 53.1 17.5 14.5 19.6 7.54 5.1 4.1 7.9 VC-F50S-18M VC-F50N-18F Nitril 53.1 17.5 14.5 19.6 7.54 2.8 5.8 14.2 VC-F50N-18F VC-F50N-18M Nitril 53.1 17.5 14.5 19.6 7.54 9.9 6.4 14.2 VC-F50N-18M
