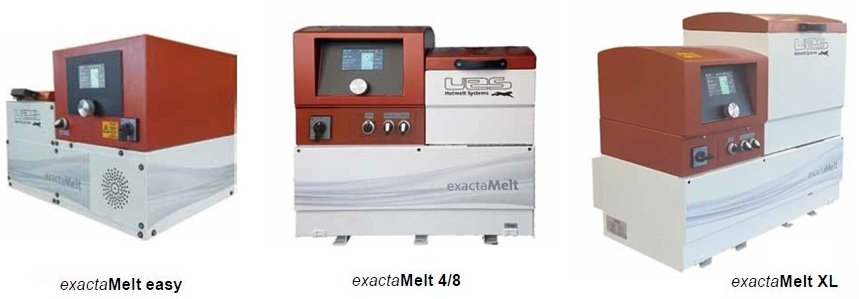

Aparat dozare Hot Melt cu pompa cu roti dintate ExactaMelt
- The innovative generation of tabletop units with intuitive operation guarantees a maximum of saving energy and material.
- Due to their compact dimensions they can either stand alone or they can be integrated into a master machine
.
• Economical intelligence • 2, 4, 6 or 8 hose connections • Rotary-Switch • Easy access for maintenance work • Intuitive color touch display • Adjustable control of timer • Melting on demand • WLAN-Connection
| Denumire aparat dozare |
ExactaMelt 4 standard |
ExactaMelt 8 |
ExactaMelt 14 |
ExactaMelt 20 XL |
ExactaMelt 30 XL |
ExactaMelt 4 EASY |
ExactaMelt 8 EASY |
| Volum rezervor | 4 litri | 8 litri | 14 litri | 20 litri | 30 litri | 4 litrii | 8 litrii |
| Rata de topire hot melt | 4 litri/ora | 8 litri/ora | 14 litri/ora | 20 litri/ora | 32 litri/ora | 4 litri/ora | 8 litri/ora |
| Protectie carcasa | IP53 | IP53 | IP53 | IP53 | IP53 | IP53 | IP53 |
| Temperatura ambianta | 5 °C - 45 °C | 5 °C - 45 °C | 5 °C - 45 °C | 5 °C - 45 °C | 5 °C - 45 °C | 5 °C - 45 °C | 5 °C - 45 °C |
| Presiunea aer comprimat | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar | 6 bar |
| Presiunea hot melt | 63 bar | 63 bar | 63 bar | 63 bar | 63 bar | 63 bar | 63 bar |
| Interval de viscozitate | max. 20 Pa·s | max. 20 Pa·s | max. 20 Pa·s | max. 20 Pa·s | max. 20 Pa·s | max. 20 Pa·s | max. 20 Pa·s |
| Precizie reglare temperatura | 1 °C | 1 °C | 1 °C | 1 °C | 1 °C | 1 °C | 1 °C |
| Temperatura de lucru | 45 °C - 195 °C | 45 °C - 195 °C | 45 °C - 195 °C | 45 °C - 195 °C | 45 °C - 195 °C | 45 °C - 195 °C | 45 °C - 195 °C |
| Decuplare la depasirea temperaturii |
Termostat + Software | Termostat + Software | Termostat + Software | Termostat + Software | Termostat + Software | Termostat + Software | Termostat + Software |
| Tensiunea de lucu | 400 V | 400 V | 400 V | 400 V | 400 V | 400 V | 400 V |
| Greutatea | 80 kg | 80 kg | 85 kg | 90 kg | 95 kg | 54 kg | 54 kg |
| Dimensiuni | 56,6x56x44,5 cm | 56,6x56x44,5 cm | 66x70,7x44,5 cm | 66x70,7x44,5 cm | 66x70,7x44,5 cm | 44,6x63x44,3 cm | 44,6x63x44,3 cm |
| Denumire produs |
Pompa cu roti dintate |
Rezervor |
Furtune |
Conectiune |
Cod comanda |
| exactaMelt 14-2 | 5.1 cm³ | 14 litri | 2 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151514 |
| exactaMelt 14-2 | 7.3 cm³ | 14 litri | 2 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151142 |
| exactaMelt 14-4 | 5.1 cm³ | 14 litri | 4 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151515 |
| exactaMelt 14-4 | 5.1 cm³ | 14 litri | 4 furtune | UES PT100 | 151512 |
| exactaMelt 20-2 | 5.1 cm³ | 20 litri | 2 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151520 |
| exactaMelt 20-2 | 7.3 cm³ | 20 litri | 2 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151202 |
| exactaMelt 20-2 | 7.3 cm³ | 20 litri | 2 Furtune | UES PT100 | 151220 |
| exactaMelt 20-4 | 5.1 cm³ | 20 litri | 4 furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151524 |
| exactaMelt 20-8 | 7.3 cm³ | 20 litri | 8 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151208 |
| exactaMelt 30-2 | 5.1 cm³ | 30 litri | 2 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151530 |
| exactaMelt 30-2 | 7.3 cm³ | 30 litri | 2 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151302 |
| exactaMelt 4-2 | 5.1 cm³ | 4 litri | 2 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151542 |
| exactaMelt 4-2 | 7.3 cm³ | 4 litri | 2 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151042 |
| exactaMelt 8-2 | 5.1 cm³ | 8 litri | 2 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151582 |
| exactaMelt 8-2 | 7.3 cm³ | 8 litri | 2 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151082 |
| exactaMelt 8-4 | 7.3 cm³ | 8 litri | 4 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 151084 |
| exactaMelt easy 4-2 | 7.3 cm³ | 4 litri | 2 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 016042 |
| exactaMelt easy 8-2 | 7.3 cm³ | 8 litri | 2 Furtune | UES Compact/perfectMelt; compatibil Seria 3000/Problue | 016082 |
Nordson®, ProBlue®, Vista® und Serie3000® are trademarks of Nordson Corp., USA.
Robatech® is a trademark of Robatech AG, Muri, Switzerland.
